Vacuum Packaging Machine VC999 K7
Installation of the machine
2008-11-26 Art.-No. 592.016 Page 27/121
6 Installation of the machine
Once the preparatory work is completed, the Vacuum Packaging Machine can be set up and connected.
To set up the Vacuum Packaging Machine proceed as follows:
1. Bring the Vacuum Packaging Machine to the selected site with a lifting truck.
2. Remove the packaging.
3. Use the nuts (2) and washers (3) to install the operating unit at the side of the conveyor support (4).
Always remove the nuts and washers from the connecting bolts (5) before fitting the unit from below
to the conveyor support (4). Always use the holes (6) on the conveyor support for installation.

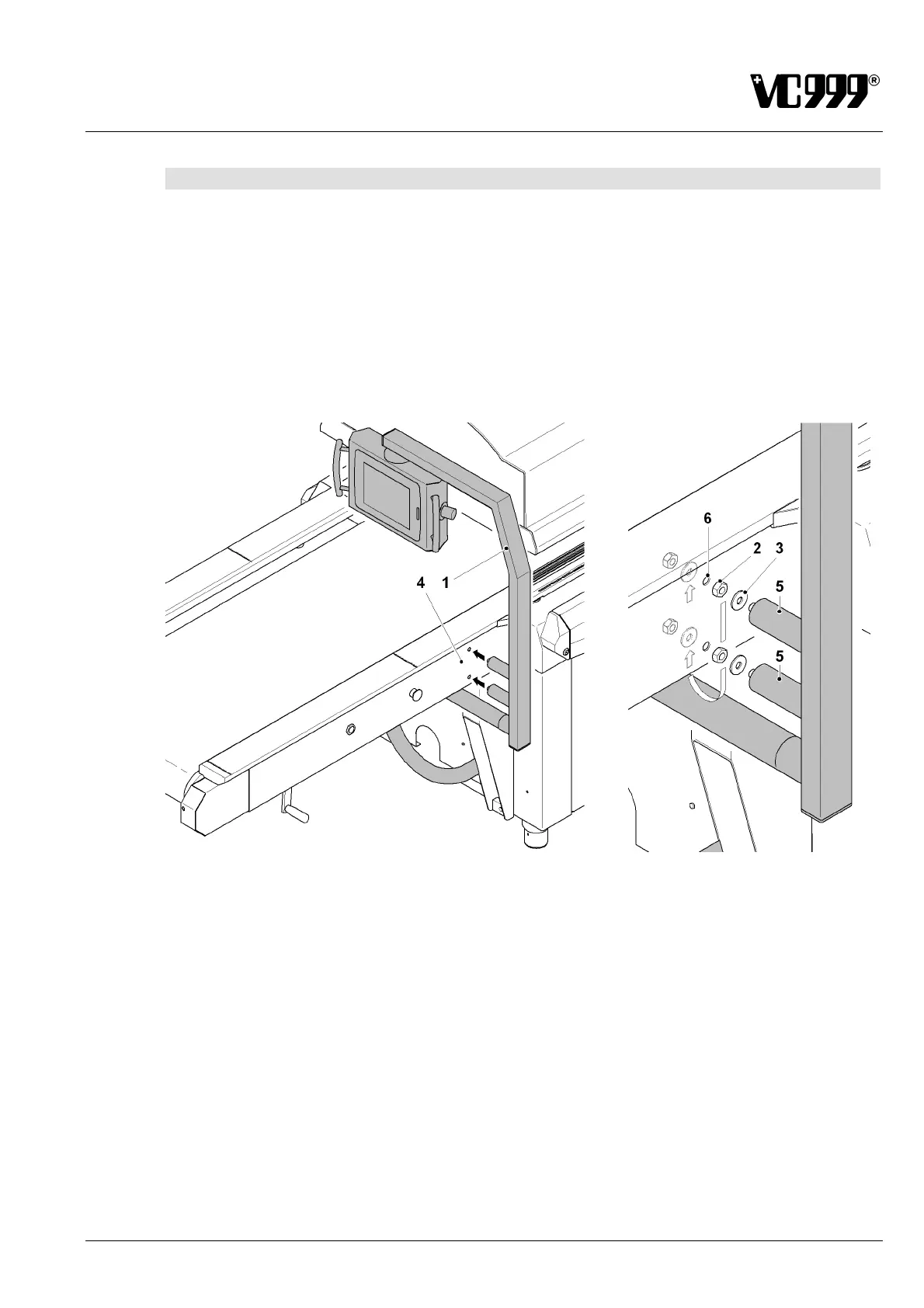

Fig. 6/1
4. VC999 K7A: Position the bag waste suction unit as close as possible to the machine and use as
few suction line pipe bends as possible to achieve optimum performance.
5. Connect the machine to the electric power and compressed air supply in accordance with section
6.2 “Connection“.
