Vacuum Packaging Machine VC999 K7
Installation of the machine
Page 28/121 Art.-No. 592.016 2008-11-26
6.1 Casing plates
Some casing plates must either be removed or opened
for installation and maintenance.
Depending on the actual lock, use a hexagon wrench
key, a screwdriver or the supplied square wrench key
(1) to remove the casing plates.

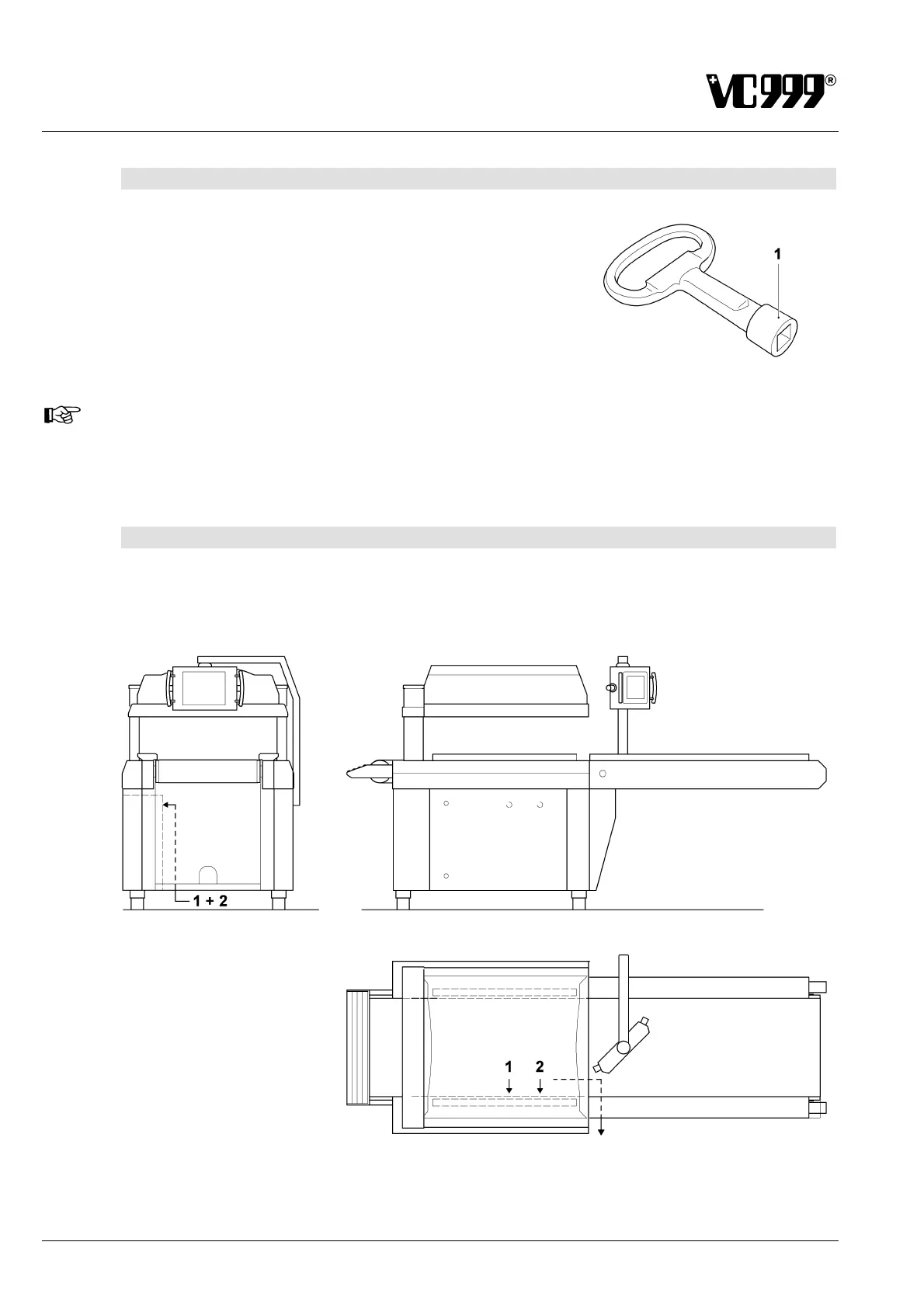

Fig. 6/2
NOTICE
Keep the key in a safe place. The operator must ensure that the machine is completely switched
off (main switch OFF (0)) before opening the electrical cabinet and the cockpit.
6.2 Connection
The Vacuum Packaging Machine must be connected to an electrical power and compressed air supply.
Vacuum pumps must also be connected to the electrical power supply, separately fused and connected
to the vacuum network of the machine.
Fig. 6/3
1 Electrical connection 2 Compressed air connection
