Vacuum Packaging Machine VC999 K7
Installation of the machine
Page 30/121 Art.-No. 592.016 2008-11-26

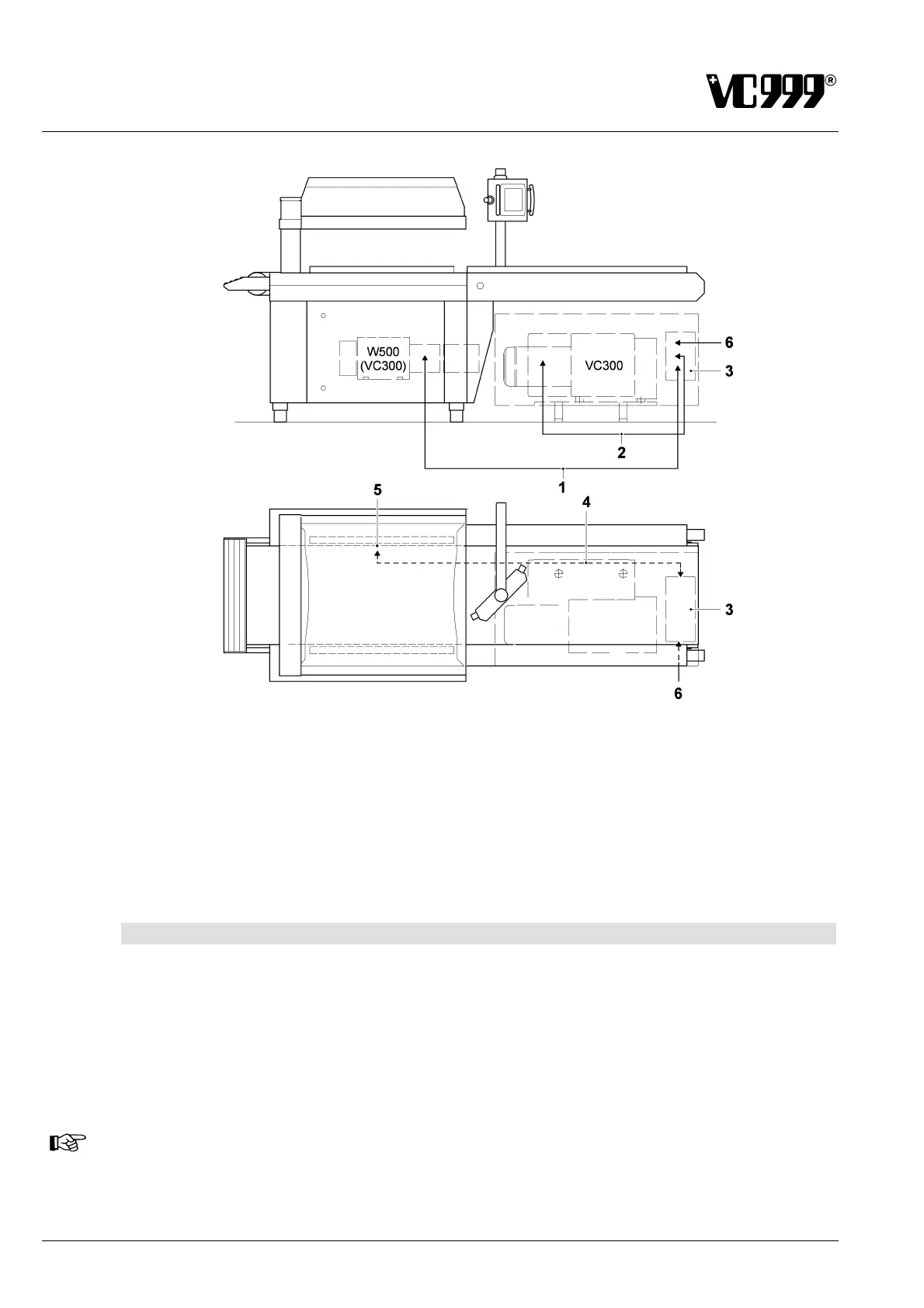

Fig. 6/4
Bag waste suction unit
The unit with the extractor blower and bag waste disposal system is controlled and supplied with electric
power by the Vacuum Packaging Machine. The connection cable must therefore be connected in ac-
cordance with the Wiring diagrams (section 15.3 „Wiring diagrams“) to the Vacuum Packaging Machine.
For this, the electric cable can be run along the extractor pipe to the Vacuum Packaging Machine and
from there run through cable screw fixings into the electrical cabinet (Fig. 3/1, Pos. 10).
6.2.2 Connecting the compressed air supply
The Vacuum Packaging Machine needs compressed air to operate the vacuum chamber lid and the air
cushion of the upper sealing bars.
The compressed air must be supplied via an air hose with an inside diameter of 9 mm. This hose must
be fed from below to the connecting branches (Fig. 6/3, pos. 2) and fixed into position with a suitable
hose clip.
The compressed air is fed from this connection in the power supply cabinet to the compressed air main-
tenance unit.
NOTICE
The pneumatic data are contained in section 3.3.4 „Pneumatic data". There is also a pneumatic
diagram in the section 15.2 “Pneumatic diagram“.
