Vacuum Packaging Machine VC999 K7
Maintenance
Page 90/121 Art.-No. 592.016 2008-11-26
11.5 Maintenance blades
The blades for the perforation and for removing bag waste must be checked at least once a month. Al-
ways disassemble the blades before carrying out checks. If any of the teeth are damaged, always re-
place the blade.
11.5.1 Checking cutter blade (VC999 K7A) / perforation blade (VC999 K7B)
CAUTION
Make sure that the machine is switched off and completely disconnected from the electrical
power supply and compressed air supply prior to carrying out maintenance!
CAUTION
Wear safety gloves when working on the cutter blade and proceed with requisite care. Serious
risk of injuries!
Procedure:

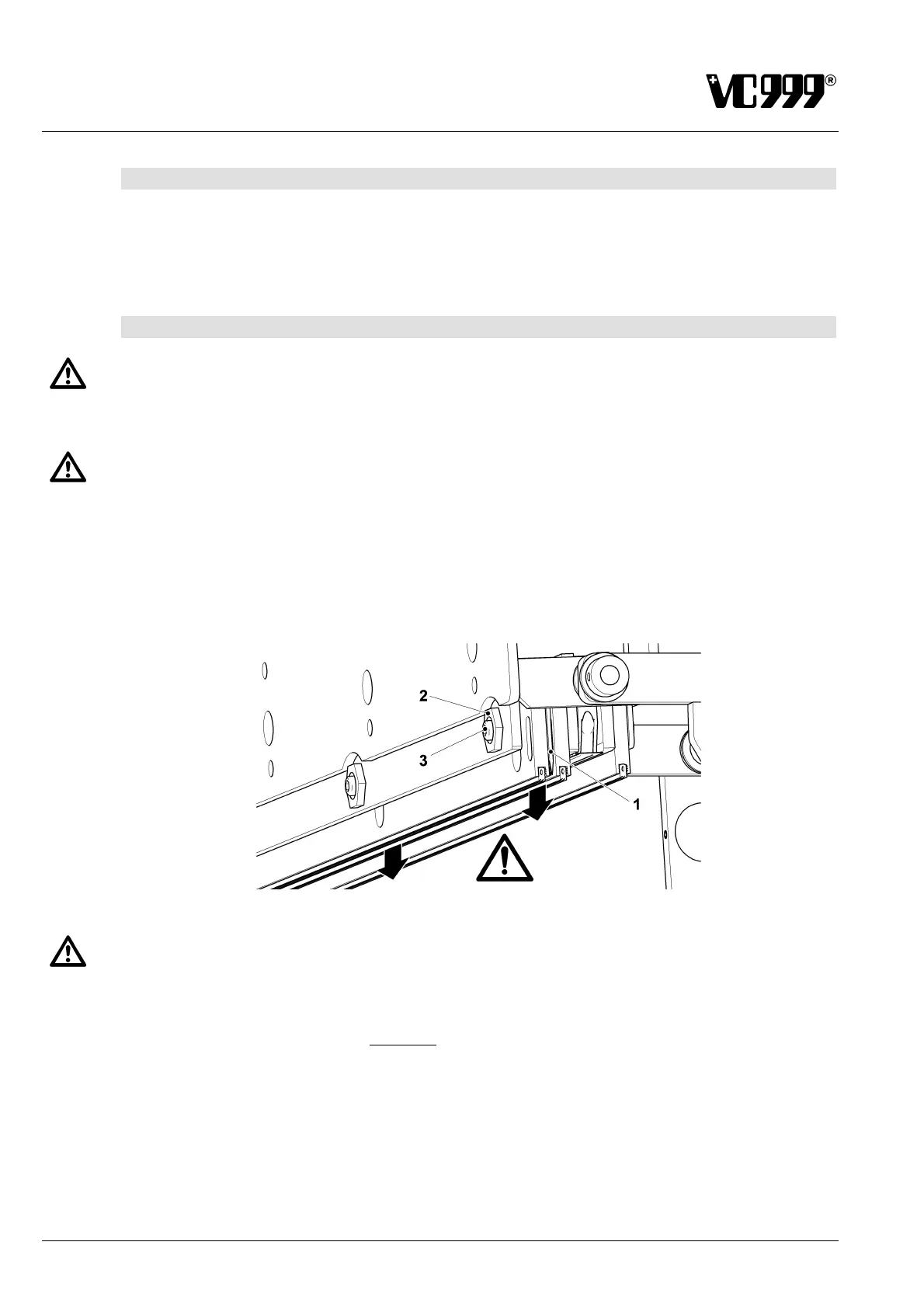

1. Disassemble the blade (1). Loosen the 5 lock nuts (2) for this task.
Fig. 11/5
CAUTION
The blade is released when unscrewing the 5 set screws (3) clockwise. Take measures to en-
sure that the blade cannot fall down!
2. Unscrew the 5 set screws (3) clockwise
and remove the blade (1).
3. Check the blade and replace it if any of the teeth are damaged.
4. Re-assemble the blade in reverse order.
