Vacuum Packaging Machine VC999 K7
Maintenance
2008-11-26 Art.-No. 592.016 Page 91/121
11.5.2 Checking pre-perforation blade
CAUTION
Make sure that the machine is switched off and completely disconnected from the electrical
power supply and compressed air supply prior to carrying out maintenance!
CAUTION
Wear safety gloves when working on the cutter blade and proceed with requisite care. Serious
risk of injuries!
Procedure:
1. Disassemble the blade unit (1). Unscrew and remove the 4 nuts (2).

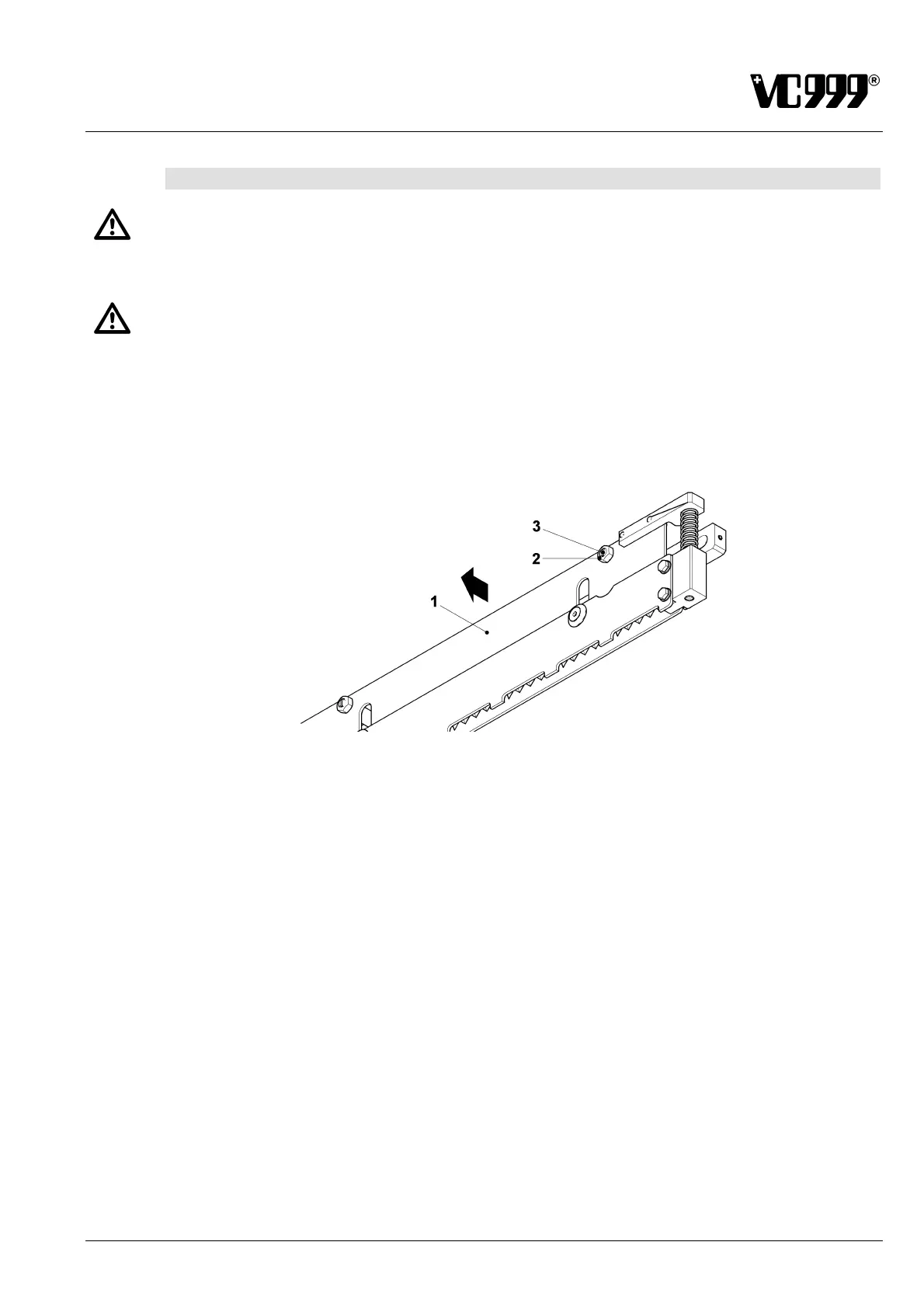

Fig. 11/6
2. Lift the blade unit (1) off the 4 set screws (3) and carefully remove it from the machine.
3. Check the blade and replace it if any of the teeth are damaged.
4. Re-assemble the blade unit in reverse order.
