Verint nextiva V4320 series - V4320 BX-DN Model

V4320BX-DN Model

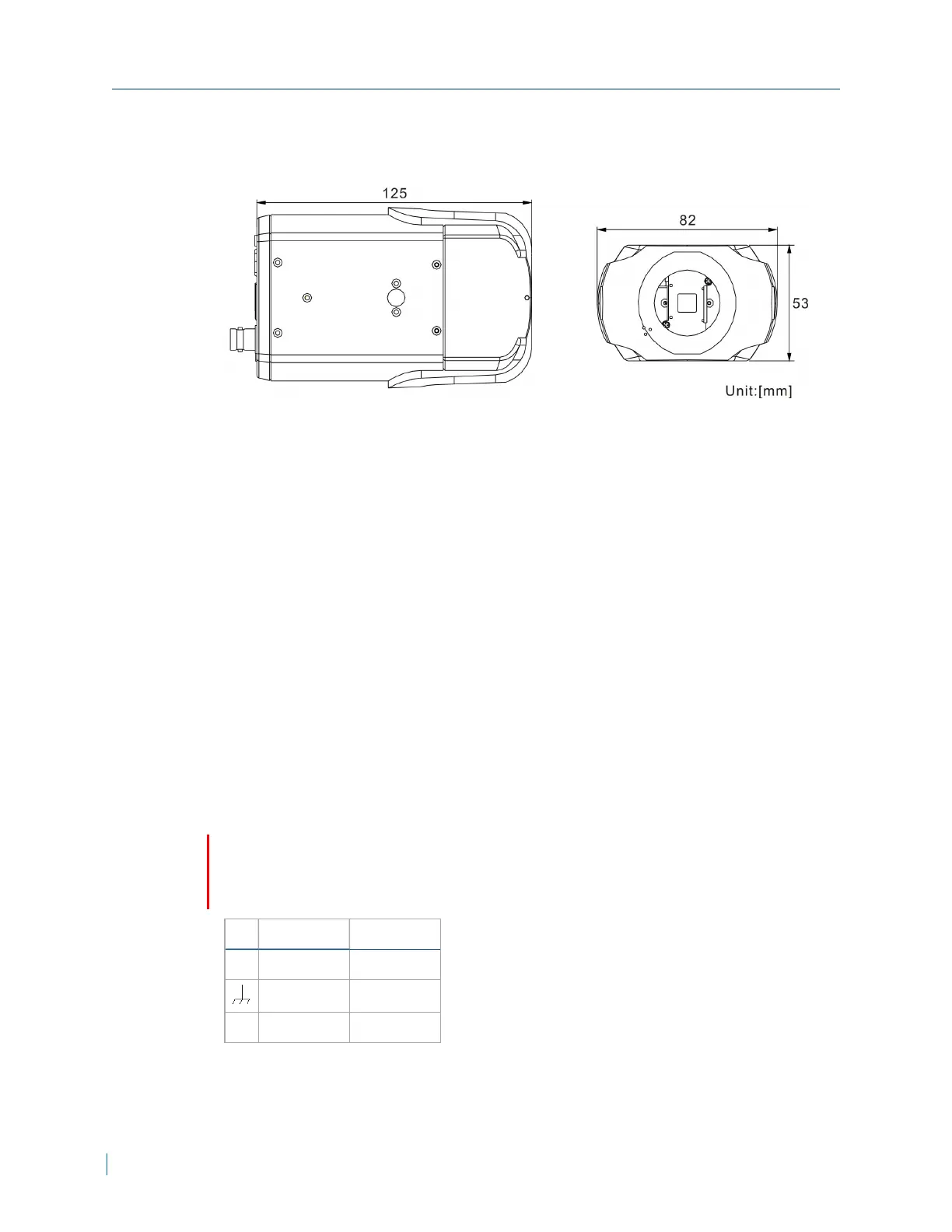

1/4-20 UNC mounting sockets are available on both sides.
Description
1. Audio LINE OUT and LINE IN /
MIC IN
2. Power LED
3. Reset button
4. Auto IRIS connector
5. RJ-45 Ethernet connector
6. Alarm I/O
7. Video Out
8. MicroSD card slot
9. 12VDC or 24V AC power input
PowerConnections
Caution
Only use a single power source (PoE, 12V DC or 24V AC). Connecting
multiple different power sources can damage the camera.
Pin 24VAC 12VDC
+ Power-1 Power
Earth GND Earth GND
- Power-2 GND
V4320BX-DN Model
