Notices
During the normal operation of the equipment, do not block the outlet of the ECO fan module.
2.2.4 The wiring of water immersion sensor
Remove the plug button and M5*12 combination screws (4Pcs) from the rear cover of the air conditioning
compartment and remove the rear cover as shown in Figure 2-15.

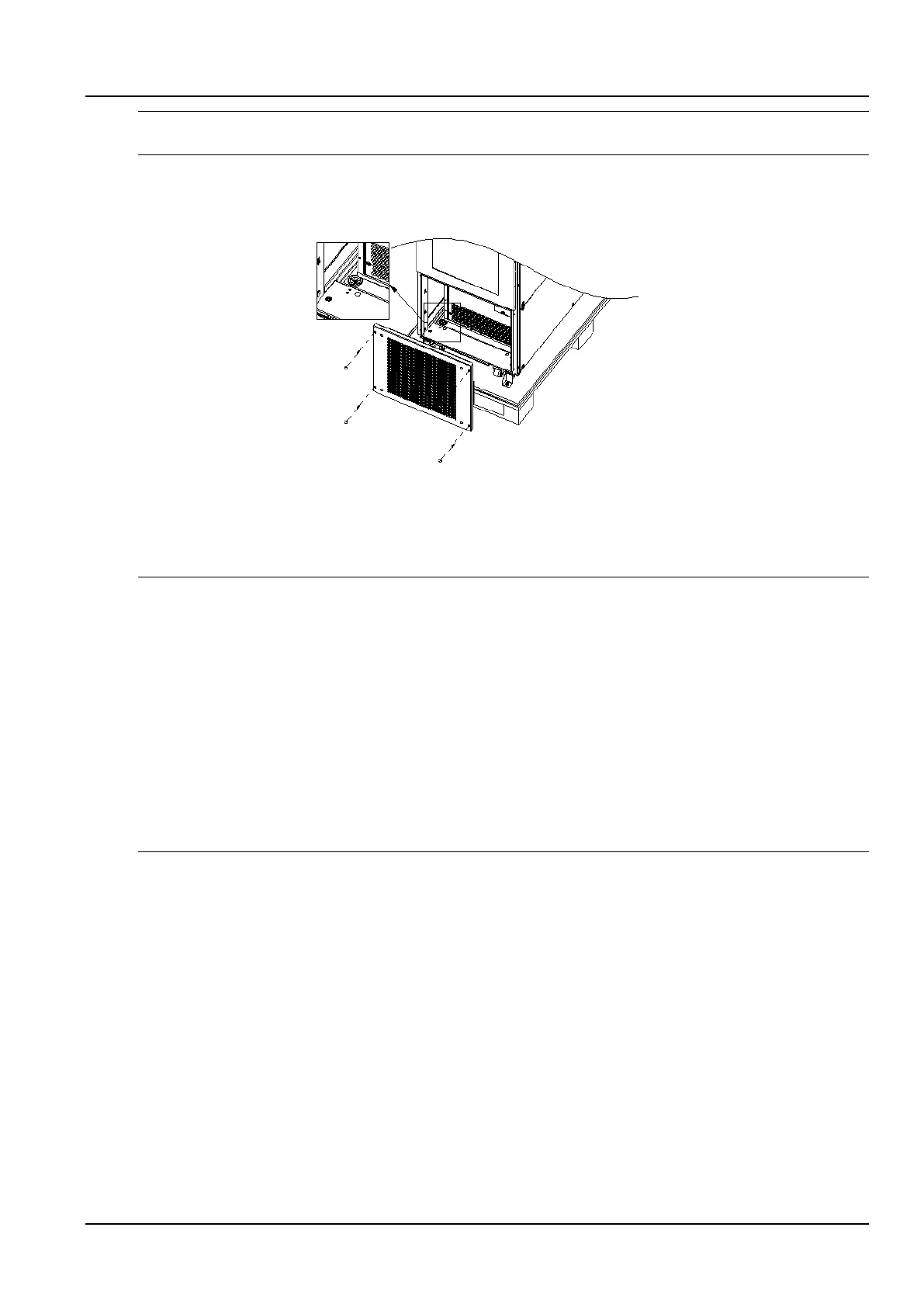

Figure 2-15 Remove the air conditioning compartment rear cover
Remove the water immersion sensor cable, pass it through the lower wire guard ring, and unfold it to the bottom of
the cabinet. Once the layout is complete, reinstall the air conditioning compartment rear cover..
2.2.5 Battery module (optional)
Notices
1. There is a danger of high current when operating the battery. Prior to connecting the battery cable, make sure all batteries are
disconnected. Before the power supply system is connected to the connection cable of the battery string, the corresponding
battery must be disconnected, or the single battery connection bar in the battery string must be disconnected to avoid the power
system being charged after installation.
2. The polarity of the battery connected to both ends of the battery cable and the polarity of the power system terminal must be
the same, otherwise the battery and power system will be damaged!
3. When replacing or installing the battery, first install the bottom part and the top part, and remove the top and bottom to
maintain the center of gravity to prevent the battery box from tipping over.
4. When installing the battery, be sure to tighten each screw on the pole to the specified torque. After 1 to 2 months of delivery,
check again that each screw is tightened to the specified torque, otherwise it may cause a fire.
5. Lead acid batteries can cause chemical hazards.
6. Make sure that the battery has the same capacity and model. If the battery is replaced by the wrong model, there is a danger of
explosion.
7. When disposing of used batteries, they must be disposed of in accordance with relevant local regulations.
The cabinet comes with a battery module. If you choose an extra battery module, you need to follow the steps below.
1) Unpacking the battery module for visual inspection, there should be no obvious damage to the appearance; Check
the cable.
