Vertiv NetSure 8200 Series Installation Manual

Vertiv | NetSure™ 8200 Series -48 VDC Power System Installation Manual (IM582140000) | Rev. A
108

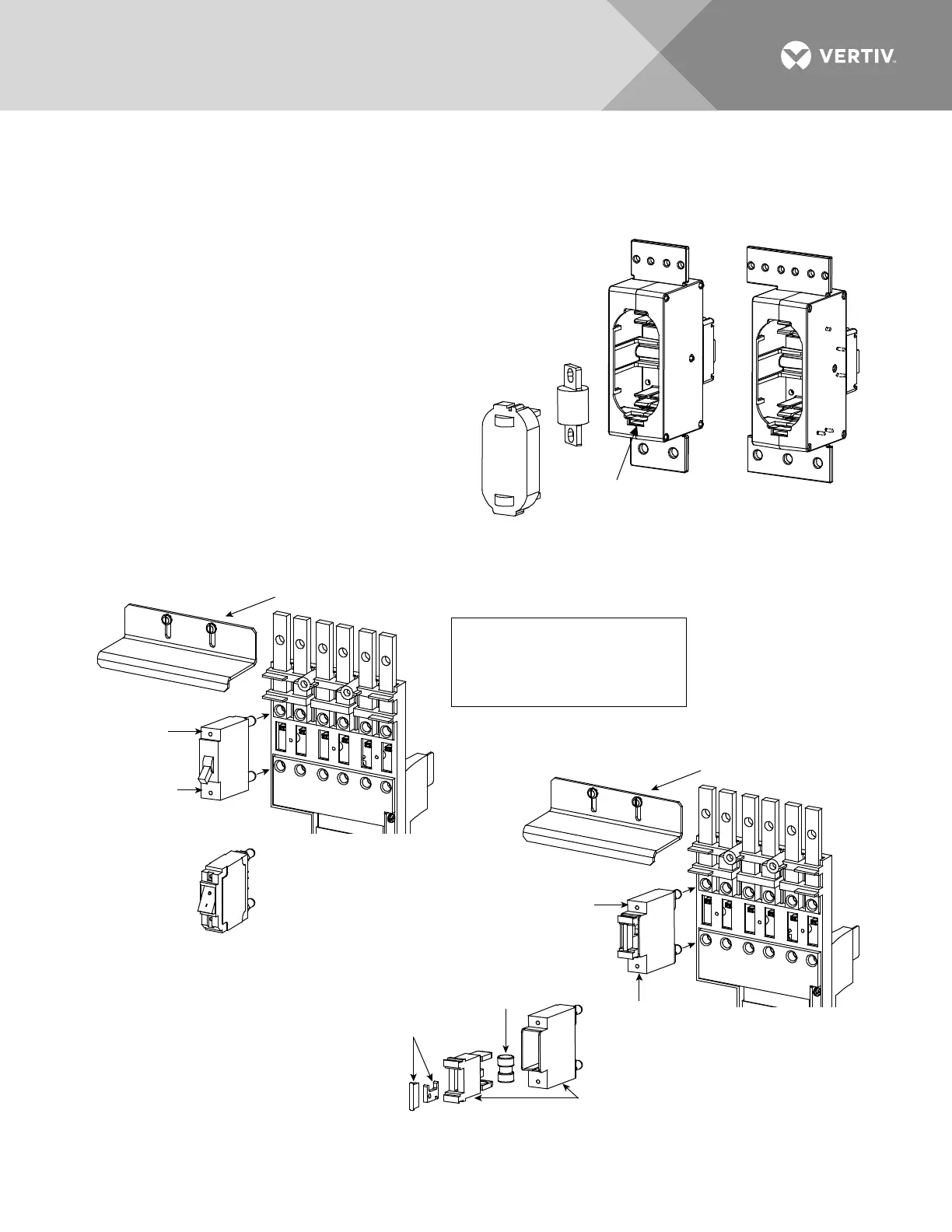

Figure 71: Installing TPL Fuses, TLS/TPS Fuses, and Bullet Nose-Type Circuit Breakers
TLS/TPS Fuses
Bullet Nose Device
Mounting Assembly,
P/N 513747
Shor ter side
to the top.
Longer side
to the
bottom.
Loosen (2) screws & lift
retainer (removed here
to show detail).
Bullet Nose-Type
Fuseholder, P/N 117201
GMT-18/100A
Alarm Fuse
& GMT-X
Safety Fuse Cover
TLS/TPS
Fuse
NOTE THAT BULLET
NOSE -TYPE DEVICES
CANNOT BE USED IN
“DISTRIBUTION-ONLY” BAYS
Fuseholder Assembly
P/N 514403 P/N 514404
TPL Fuses
Flat Washer
Lock Washer
Nut
Torque to
168 in-lbs
GMT-18/100A
Alarm Fuse
& GMT-X
Sa fety Fuse Cover
TPL
Fuse
Bullet Nose-Type
Circuit Breakers
Bullet Nose Device
Mounting Assembly,
P/N 513747
Shor ter side
to the top.
Longer side to
the bottom.
Loosen (2) screws & lift
retainer (removed here
to sho w detail).
Toggle-handle
Breaker
Rocker-handle
Breaker
