Vertiv | NetSure™ 8200 Series -48 VDC Power System Installation Manual (IM582140000) | Rev. A
116

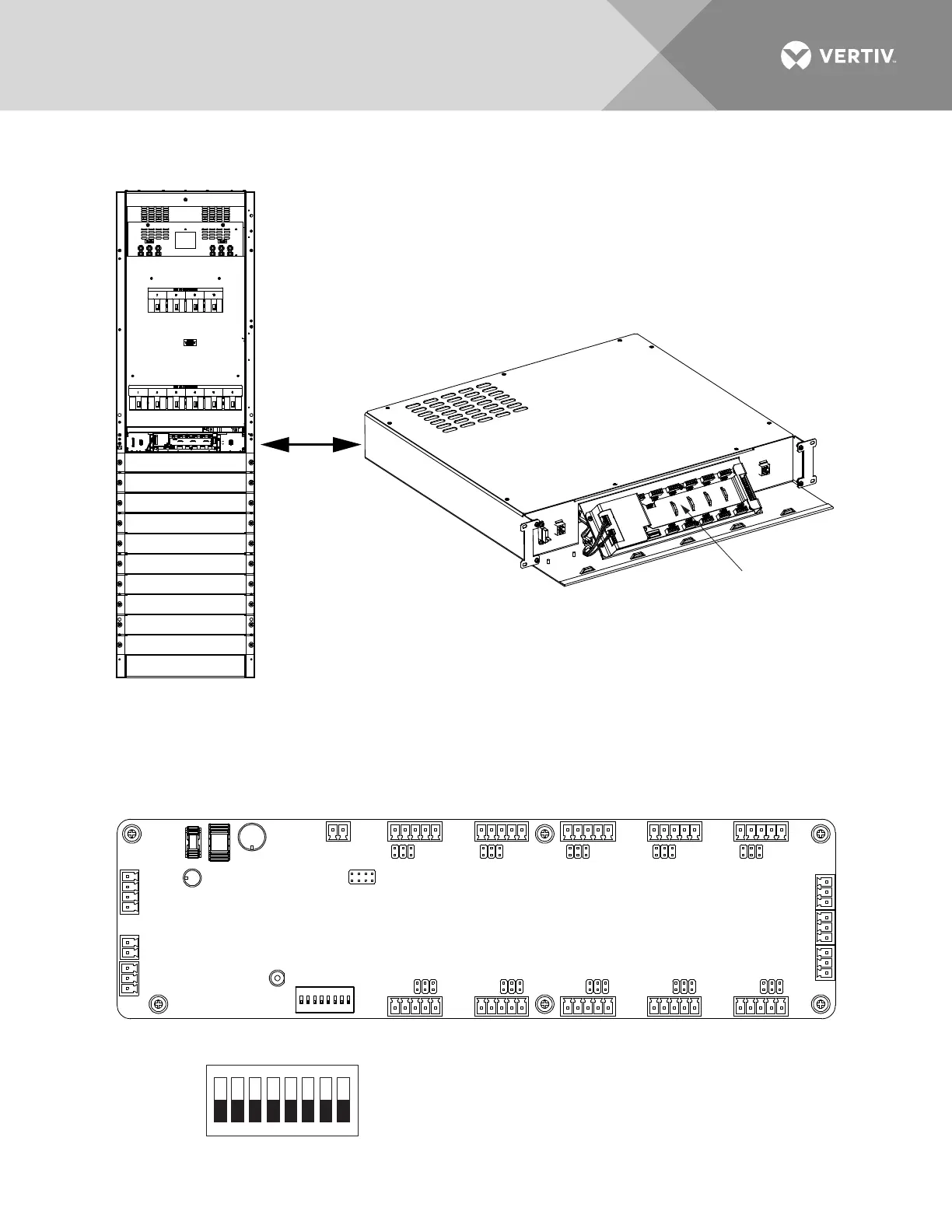

Figure 76: SM-DUE Switch and Jumper Location
SM-DUE
SM-DUE
Secondary Power Only Bay
Secondary Power/ Distribution Bay Similar
Front door removed in illustration for clarity only.
ON
OFF
1 8
Input Block 1
Jumpers
1 3 5
2 4 6
Jumpers
1 3 5
2 4 6
Jumpers
1 3 5
2 4 6
Jumpers
1 3 5
2 4 6
Jumpers
1 3 5
2 4 6
Jumpers
1 3 5
2 4 6
Jumpers
1 3 5
2 4 6
Jumpers
1 3 5
2 4 6
Jumpers
1 3 5
2 4 6
Jumpers
1 3 5
2 4 6
Input Block 2 Input Block 3 Input Block 4 Input Block 5
Input Block 6 Input Block 7 Input Block 8 Input Block 9 Input Block 10
SW1
Green LED
ON
OFF
1 8
SW1
