Vertiv | NetSure™ 8200 Series -48 VDC Power System Installation Manual (IM582140000) | Rev. A
128

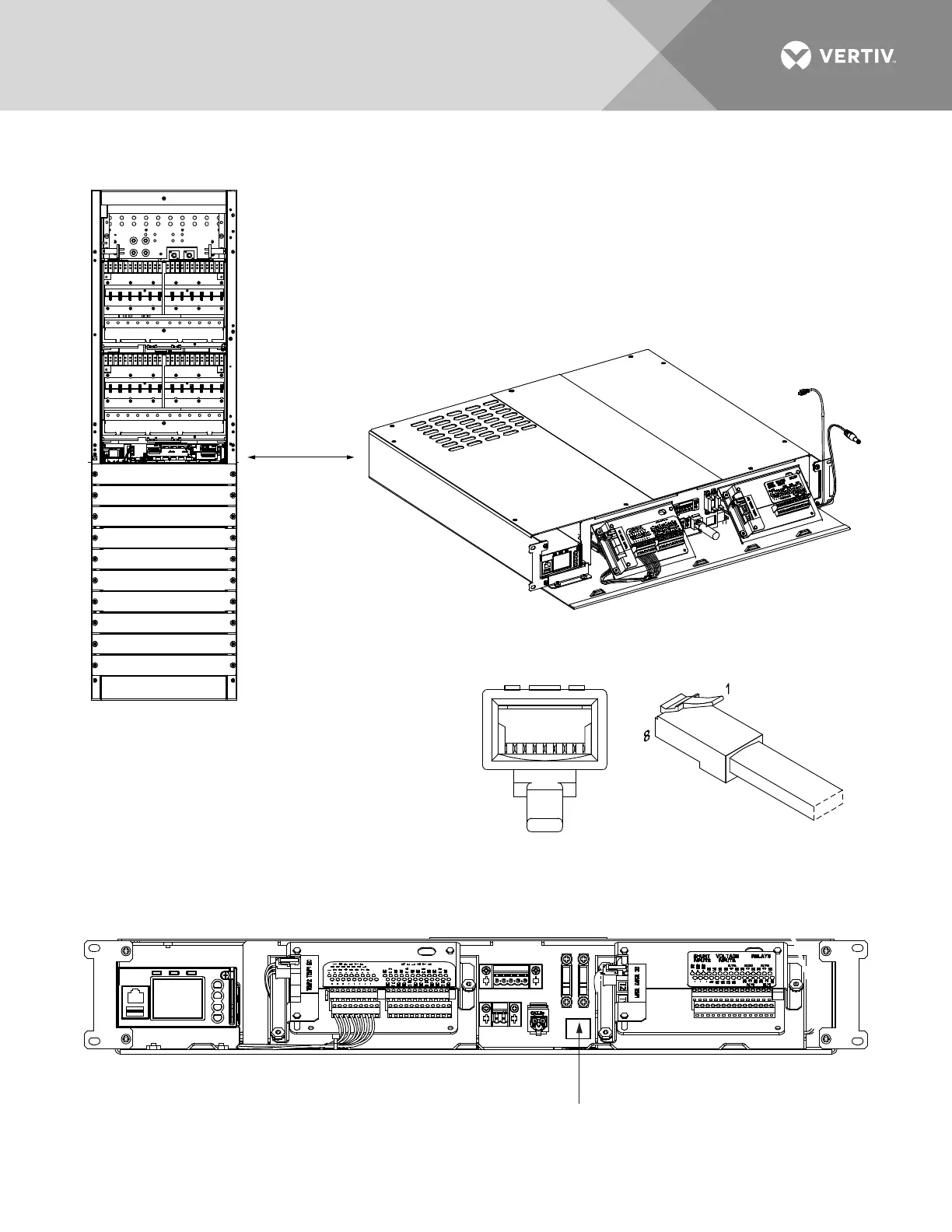

Figure 83: Connector Location – Ethernet Port (Local Area Network – LAN)
Control Shelf
Primary Power/Distribution Bay
Primary Power Only Bay Similar
Front door removed in illustration for clarity only.
1 8
RJ-45 Connector
Rear View
Ethernet Port (IB4 Board)
(Local Area Network)
Control Shelf
