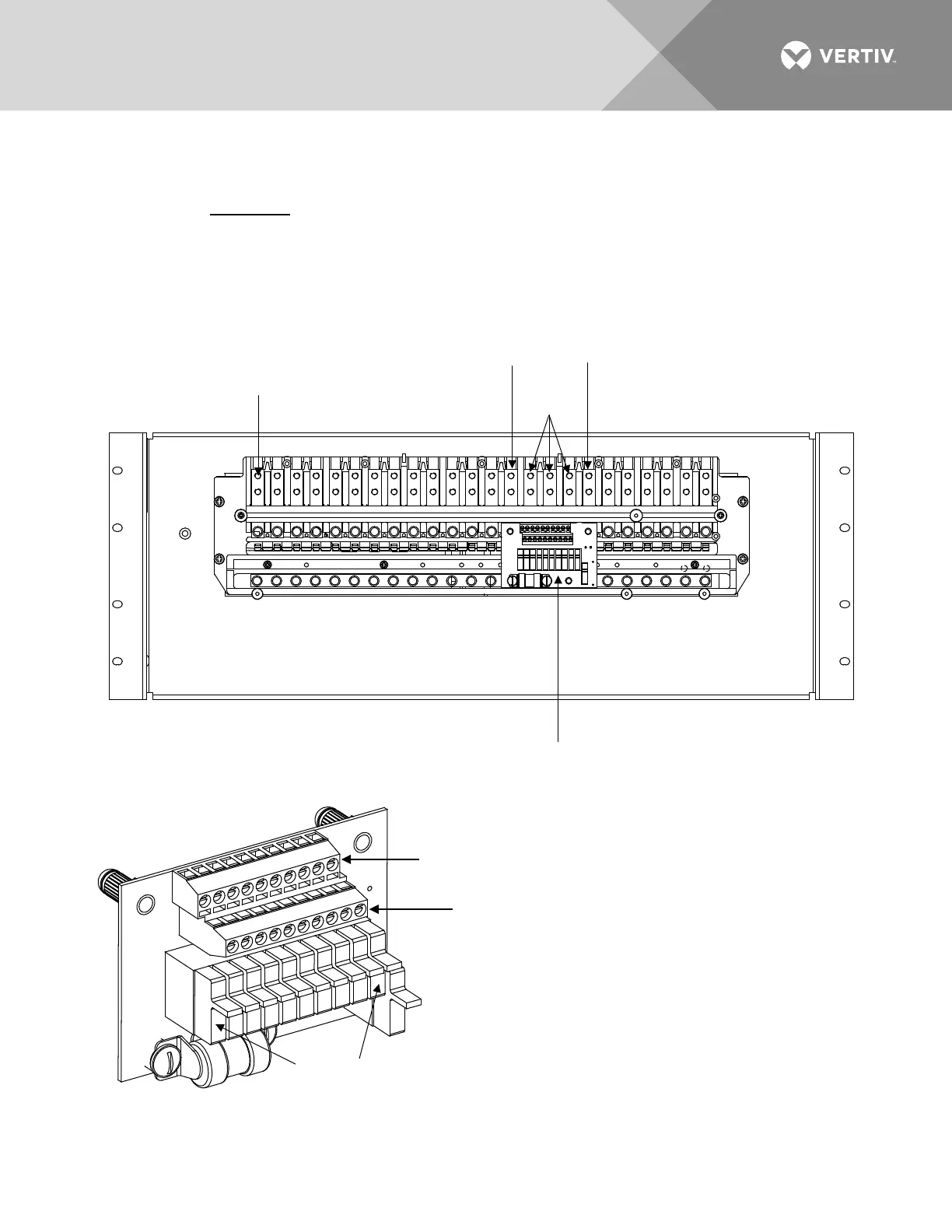

Figure 98: Installing and Wiring an Optional Bullet Nose-Type 10-Position GMT Fuse Module (P/N 509128)
Wire Size
24 to 14 AWG.
Torque 5.0 in-lbs.
Load Return
Connections
-48V Load
Connections
Load Lead Connections (-48V) or
Ground/Return to GMT Module (+Ground)
DANGER
Ensure leads are connected to
proper polarity for the device
installed, either a Distribution
Device (load lead connection)
or ground/return to GMT Module
(ground connection).
List C Fuse/Circuit Breaker Panel
GMT Module
P/N 509128
NOT
USED
Connect Ground for
GMT Module at either
of these two points
F11
F12
F1 thru F10
GMT Module
P/N 509128
