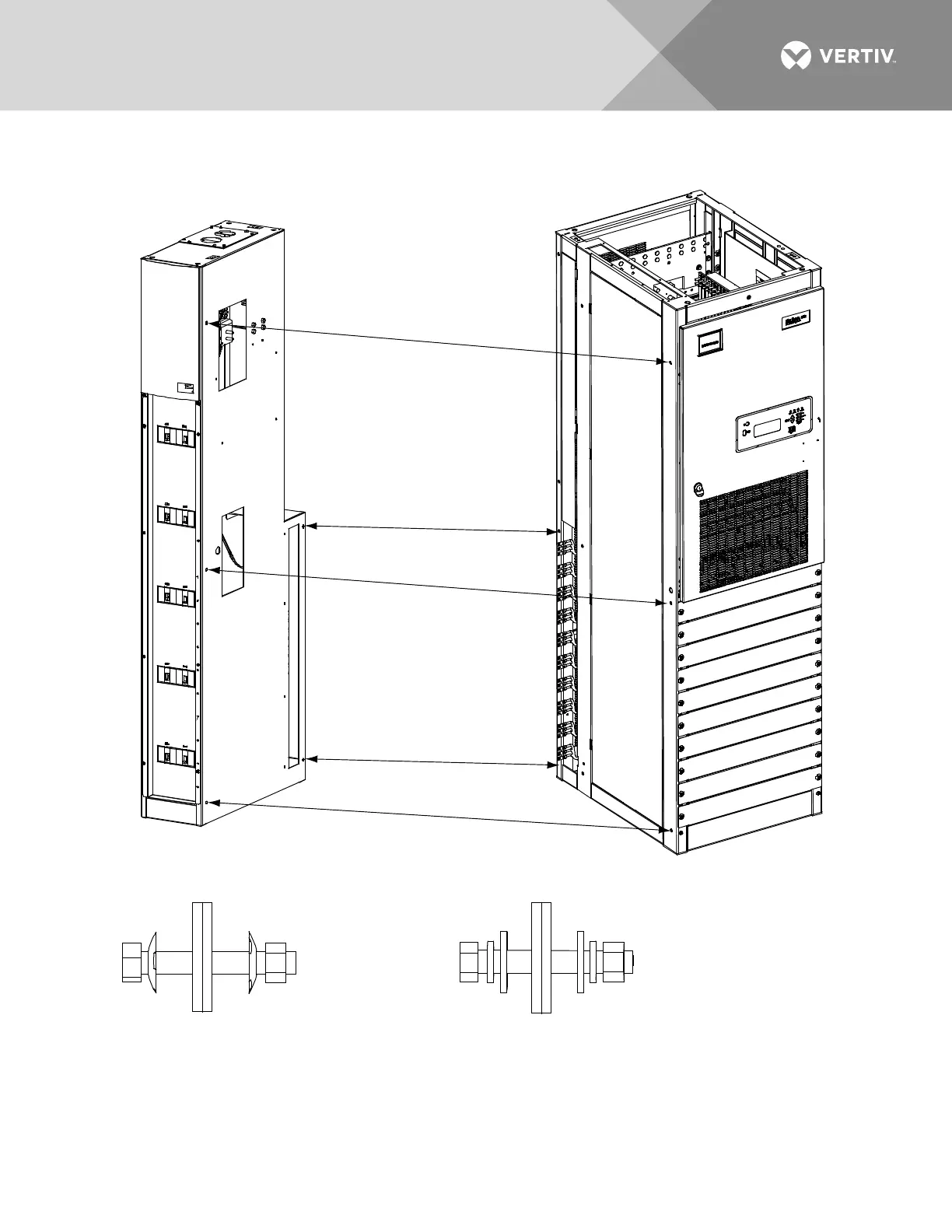

Figure 9: Bolting Power/Distribution Bay to PDSC Cabinet
Hardware Build-Up: (use ground washers
in center tie points each side)
Bolt, Ground Washer, Bay/Cabinet Sides,
Ground Washer, Nut
Hardware Build-Up: (use in remaining connection points)
Bolt, Lock Washer, Flat Washer, Bay/Cabinet Sides,
Flat Washer, Lock Washer, Nut
Bay/Cabinet Sides Bay/Cabinet Sides
Holes for Bolting
Power/Distribution
Bays and PDSCs
Togethrer
