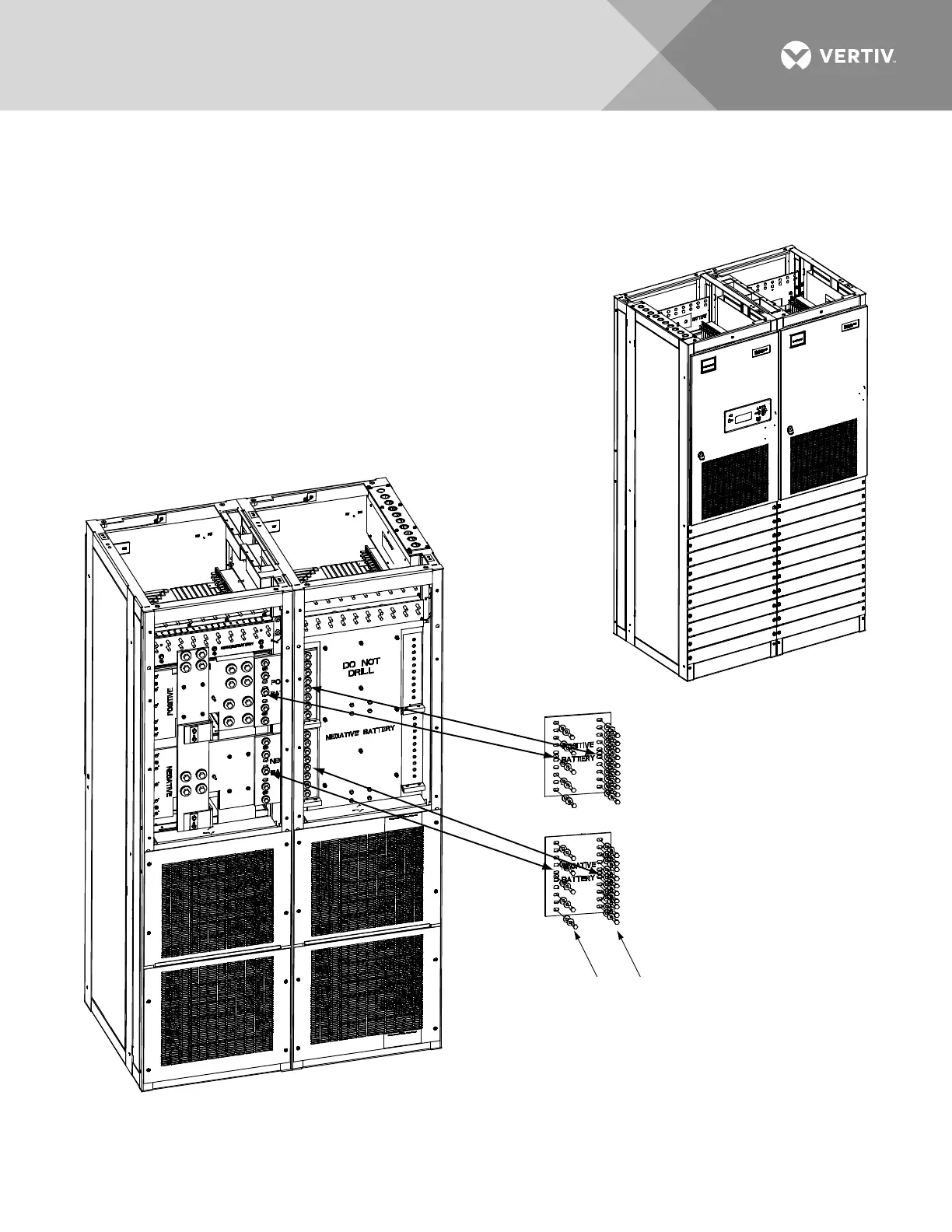

Figure 21: Installing Power/Distribution Bay to Power/Distribution Bay Negative and Positive Busbar Links
(Newer Style Bay Connected to an Existing Older Style Bay
3/8-16 x 1-1/2" Bolt
3/8" Belleville Lock Washer
3/8" Belleville Lock Washer
(concave side of Belleville
Lock Washers face each other)
3/8” Hardened Flat Washer
POSITIVE
BUSBAR LINK
NEGATIVE
BUSBAR LINK
Existing Older Style Bay
side, use ALL bolt holes.
Slide Busbar Links Under
Bays' Upright Channels.
Torque to 180 in-lbs.
Newer Style Bay side,
use bolt holes as
shown in illustration.
Existing Older
Style Bay
Existing Older
Style Bay
Newer
Style Bay
Newer
Style Bay
List 1 and 111 shown.
List 2 and 112 w/ List 30 or 31 similar.
