Vertiv | NetSure8200 Series -48 VDC Power System Installation Manual (IM582140000) | Rev. A
47

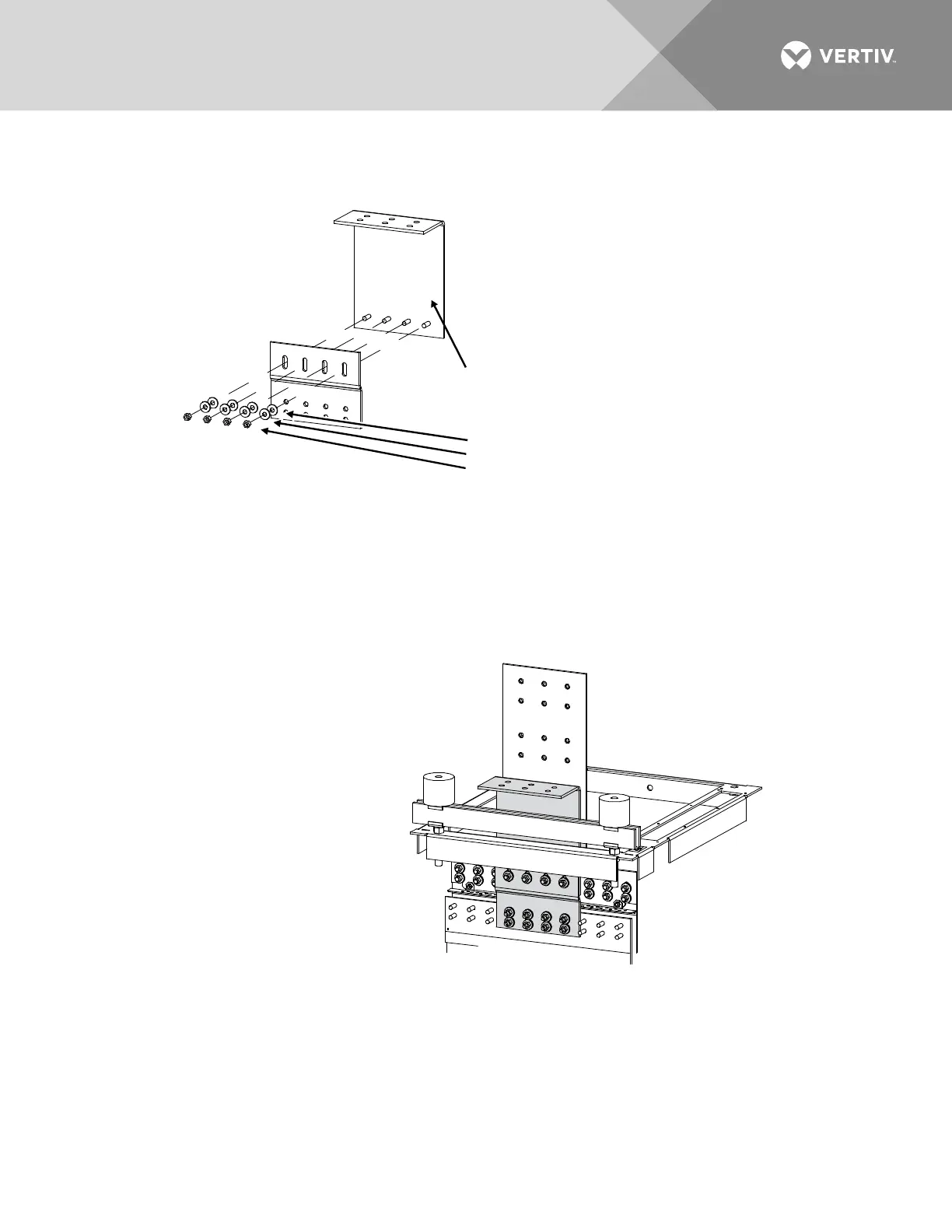

Figure 25:
Power/Distribution Bay External Top-Mount Horizontal Busbar Assembly (P/N 554873) Assembly
Procedure Step 3
Assembled
View
STEP 3
Install “Main Negative Busbar” onto Bay’
s
Negative Busbar. Hand-tighten hardware
.
(1) Main Negative Busbar, P/N 554875
Rear Top
of Bay
Note: Apply Electrical Anti-Oxidation Compound
to Busbar Mating Surfaces.
(8) 3/8” Flat Wa
sh
er
, P/
N 2
14
20
41
00
(8) 3/8” Belleville Washer, P/N
21
48
25
00
0
(8) 3/8-16 Hex Nut, P/N 228567100 Hand-Tig
ht
en
Note: Concave Side of Belleville Washer Faces
Busbar, Convex Side Faces Hex Nut.
Belleville Washer Install betwee
n H
ex
t N
ut
and Flat Washer.
Mount 554876 to the 554875.
Hardware:
214204100 (4)
21
48250
00 (4)
228
5671
00 (4)
