Vertiv NetSure 8200 Series Installation Manual

Vertiv | NetSure™ 8200 Series -48 VDC Power System Installation Manual (IM582140000) | Rev. A
50

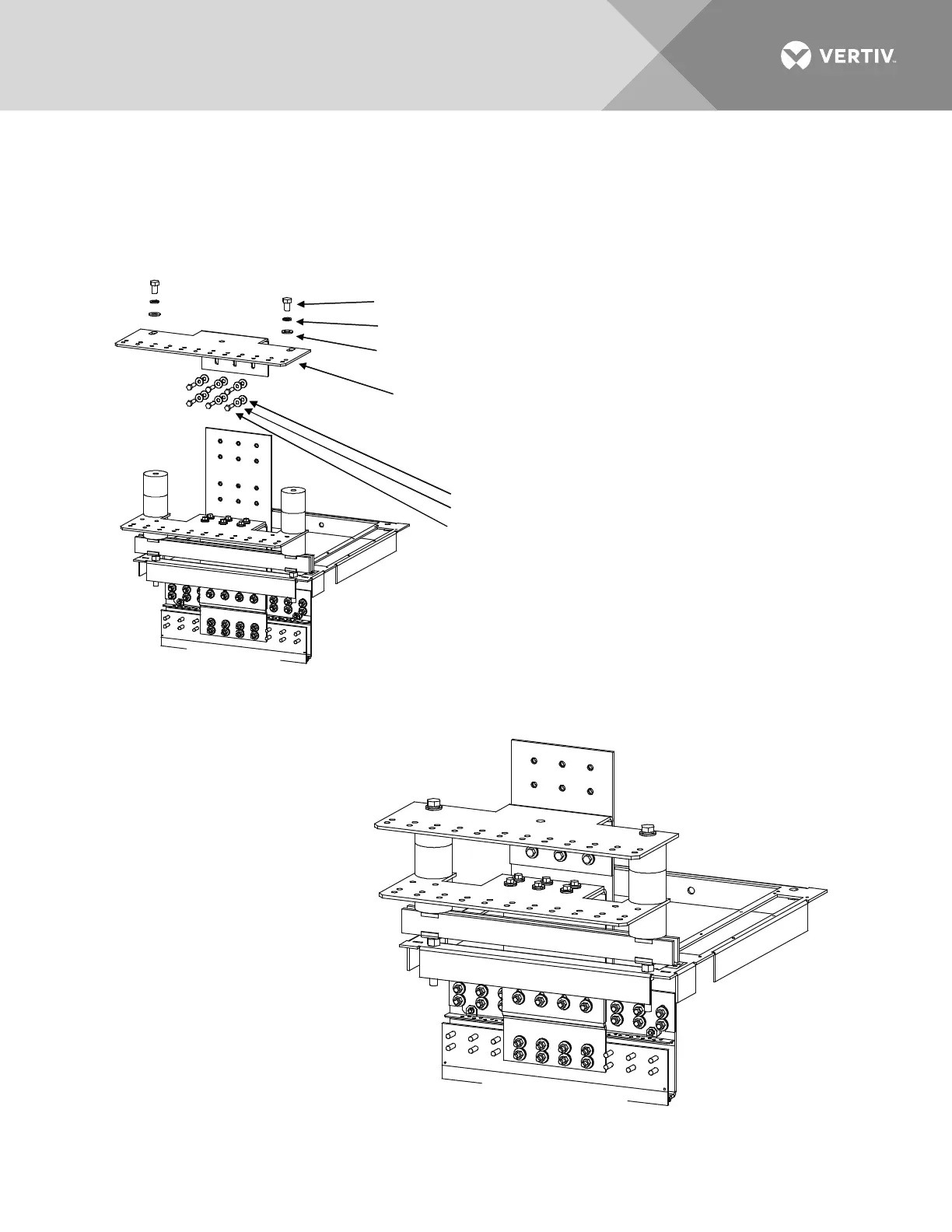

Figure 28: Power/Distribution Bay External Top-Mount Horizontal Busbar Assembly (P/N 554873) Assembly
Procedure Step 6
STEP 6
Install "Horizontal Landing Positive Busbar"
onto "Main Positive Busbar".
(2) 5/8-11 x 1" Bolt, P/N 227655100
(2) 5/8" Lock Washer, P/N 215111800
(2) 5/8" Flat Washer, P/N 214201300
Torque to 715 in-lbs.
(1) Horizontal Landing Positive Busbar, P/N 514436
Note: Apply Electrical Anti-Oxidation Compound
to Busbar Mating Surfaces.
(6) 3/8" Flat Washer, P/N 214204100
(6) 3/8" Belleville Washer, P/N 214825000
(6) 3/8-16 x 1-1/4" Bolt, P/N 227646800
Torque to 180 in-l
bs.
Note: Concave Side of Belleville Washer Faces
Busbar, Convex Side Faces Bolt Head.
Belleville Washer install between Bolt Head
and Flat Washer.
Assembled
View
Rear Top
of Bay
