P/N 214204100
(6) 3/8" Flat Washer

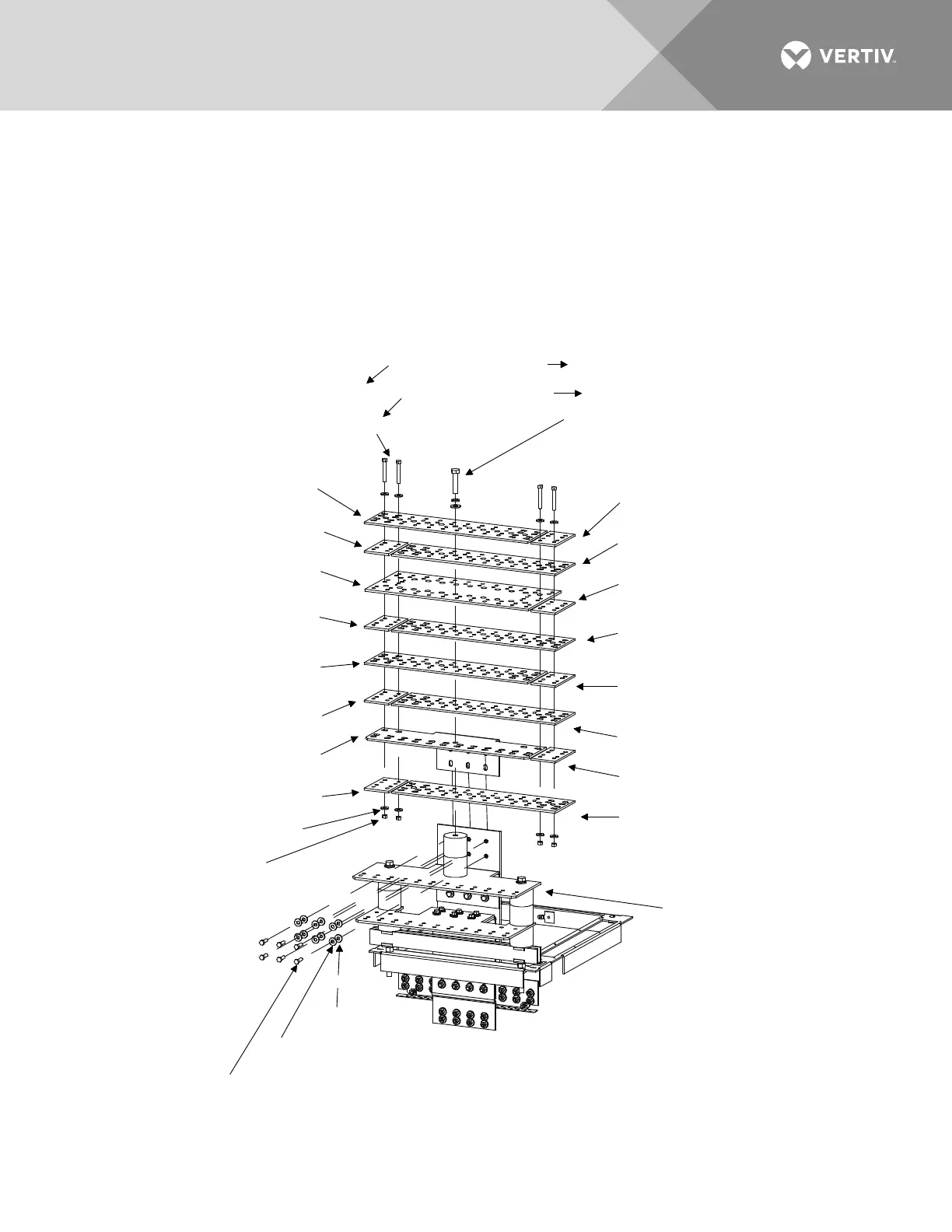

STEP 2A
Install "Busbars".
(see Step 2B for Bolt Hole Identification)
(see Step 2C for Assembled View)
Note: Apply Electrical Anti-Oxidation
Compound to all Busbar
Mating Surfaces.
* Use "Spacer Busbars" or "Spacer Insulators"
Busbar Assy P/N 514688
Busbar Assy P/N 514689
(1) 5/8-11 x 1-3/4" Bolt, P/N 227653800
or
Torque to 715 in-lbs.
5/8-11 x 2-3/4" Bolt, P/N 227653900
and
(1) 5/8" Lock Washer, P/N 215111800
and
(1) 5/8" Flat Washer, P/N
214201300
Spacer Insulator, P/N 514473,
or Busbar from Next Bay*
P/N 514689 Only
Busbar, P/N 514467
Spacer Insulator, P/N 514473,
or Busbar from Next Bay*
Busbar, P/N 514467
P/N 514689 Only
Spacer Insulator, P/N 514473,
or Busbar from Next Bay*
P/N 514689 Only
Busbar, P/N 514467
Spacer Insulator, P/N 514473,
or Busbar from Next Bay*
Busbar, P/N 514467
Note: Concave Side of Belleville Washer Faces
Busbar, Convex Side Faces Nut.
Previously Assembled
Kit P/N 554873
Note: Con
cave Side of Belleville
Washer Faces Busbar,
Convex Side Faces Bolt Head.
Belleville Washer install between
Bolt Head and Flat Washer.
Torque to 180 in-lbs.
P/N 227646800
(6) 3/8-16 x 1-1/4" Bolt
P/N 214825000
(6) 3/8" Belleville Washer
P/N 228567100
(4) 3/8-16 Hex Nut
P/N 214825000
(4) 3/8" Belleville Washer
or Busbar from Next Bay*
Spacer Busbar, P/N 514472,
Busbar, P/N 514541
or Busbar from Next Bay*
Spacer Busbar, P/N 514472,
P/N 514689 Only
Busbar, P/N 514467
P/N 51468
9 Only
or Busbar from Next Bay*
Spacer Busbar, P/N 514472,
or Busbar from Next Bay*
Spacer Busbar, P/N 514472,
Busbar, P/N 514522
P/N 514689 Only
Busbar, P/N 514467
(4) 3/8" Flat Washer, P/N 214204100
and
3/8-16 x 2-3/4" Bolt, P/N 227647700
or
(4) 3/8-16 x 2" Bolt, P/N 227647400
Torque to 180 in-lbs.
on end bays or stand-alone bays. For multiple
bays, 'sandwich' busbars of adjacent "Busbar
Assemblies" together.
Rear Top
of Bay
To Next Page
