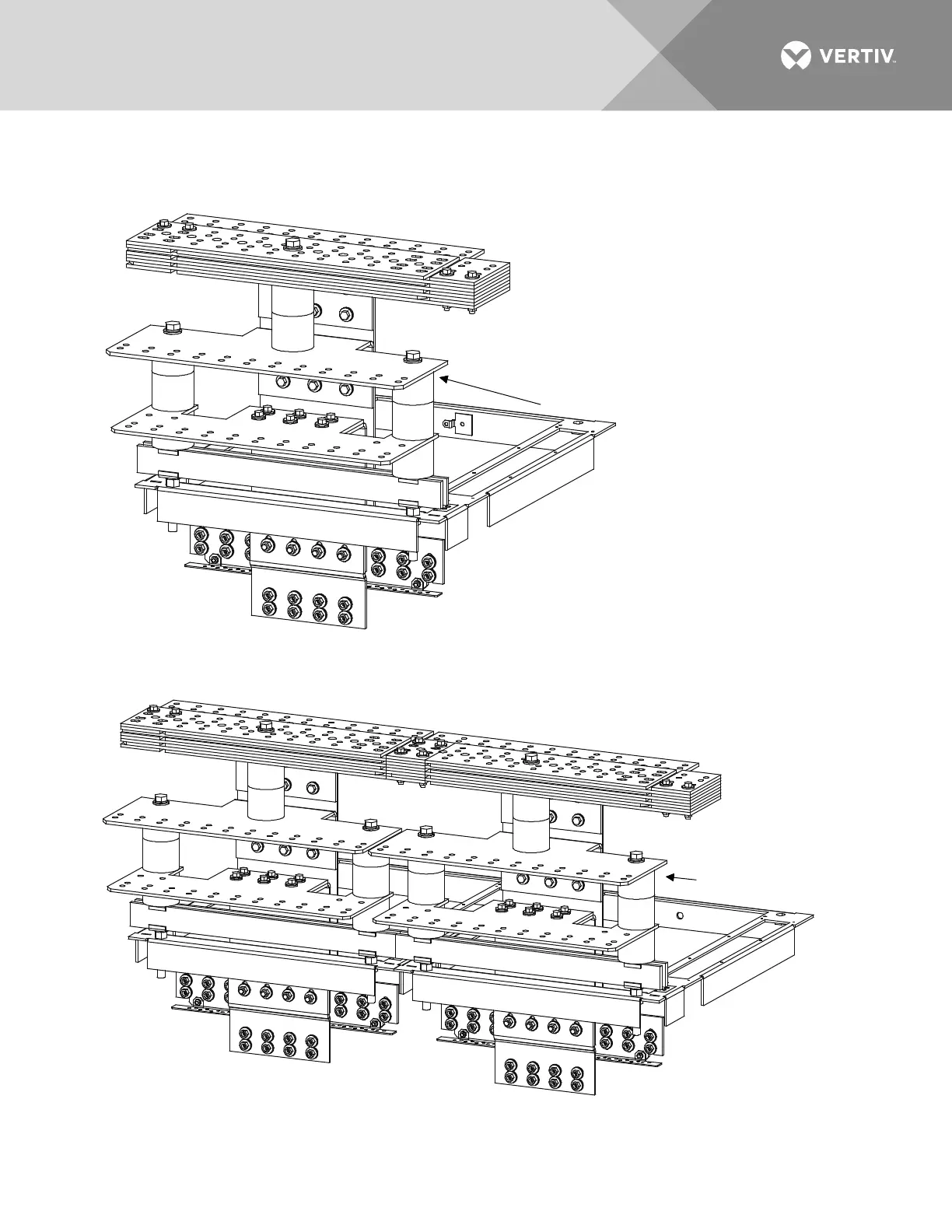

Figure 35: Power/Distribution Bay External Top-Mount Ground (Load Return) Busbar Assembly (P/N 514688
or 514689) Assembly Procedure Step 2C
STEP 2C
Install "Busbars".
(Assembled Views)
Spacer Busbars
or Spacer Insulators
Installed
Previously Assembled
Kit P/N 554873
Assembled
Views
No Spacer Busbars or Spacer Insulators.
Busbars of Adjacent Assemblies 'Sandwich'
and Bolted Together.
