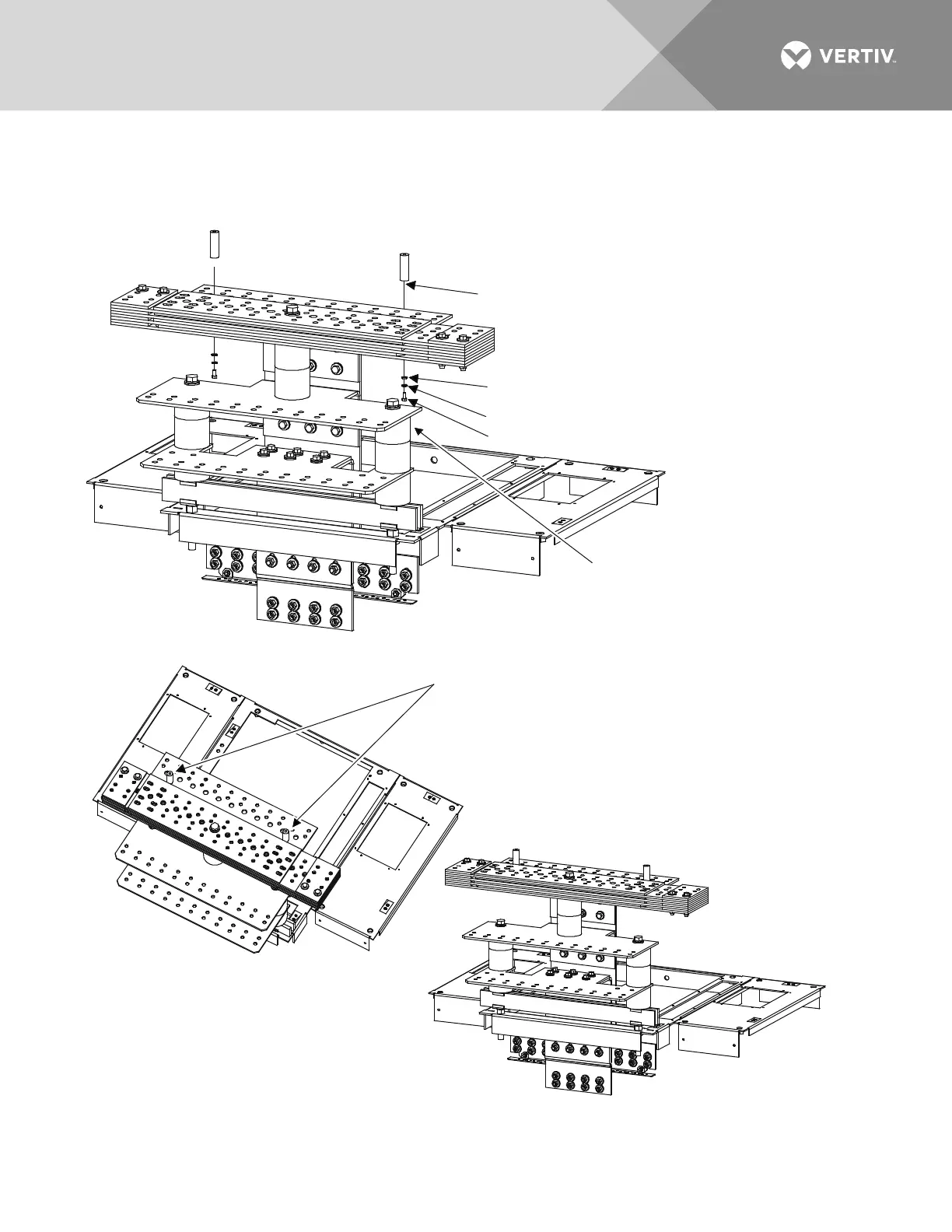

Figure 44: Power/Distribution Bay External Top-Mount Ground (Load Return) Busbar Assembly (P/N 514690
or 514691) Assembly Procedure Step 3
STEP 3
Install "Cover" Mounting Standoffs.
(2) Standoff, P/N 117843
(2) 1/4" Flat Washer, P/N 214110100
(2) 1/4" Lock Washer, P/N 215111100
(2) 1/4-20 x 1/2" Bolt, P/N 227640200
Torque to 45 in-lbs.
Previously Assembled
Kit P/N 554873
DO NOT PERFORM THIS STEP if you are going to install
"Load Return Lug Extension Busbar Assembly" P/N 514543
Use These Holes
Assembled
Views
Rear
Top
of Bay
