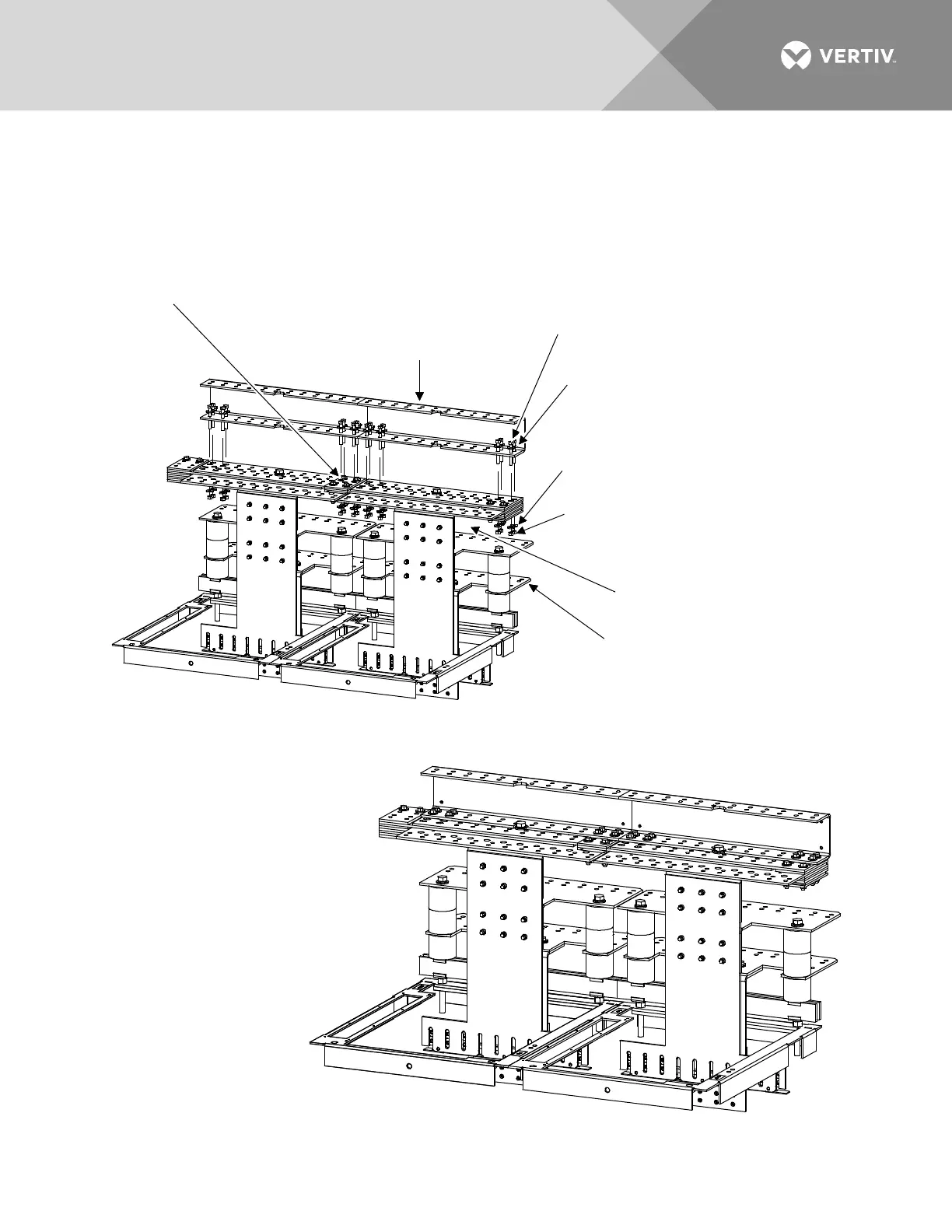

STEP 1A
Install "Load Return Lug Extension Busbar"
(List 101 and 111 Bays).
Remove any
previously installed
bolts from these
four locations
Note: Apply Electrical Anti-Oxidation
Compound to all Busbar
Mating Surfaces.
(1*) Busbar, P/N 514542
(8*) 3/8-16 x 3" Bolt, P/N 227647800
(8*) 3/8" Flat Washer, P/N 214204100
(hardened, thicker than other Kit
supplied 3/8" flat washer)
(8*) 3/8" Belleville Washer, P/N 214825000
(8*) 3/8-16 Nut, P/N 228567100
* Quantities are per Kit,
two Kits shown in Illustrations.
Previously Assembled
Kit P/N 514688 or 514689
Previously Assembled
Kit P/N 554873
Note: Concave Side of Belleville
Washer Faces Busbar,
Convex Side Faces Bolt Head.
Front Top
of Bay
Assembled
View
Torque to 180 in-lbs.
To Next Page
