Vertiv NetSure 8200 Series Installation Manual

Vertiv | NetSure™ 8200 Series -48 VDC Power System Installation Manual (IM582140000) | Rev. A
73

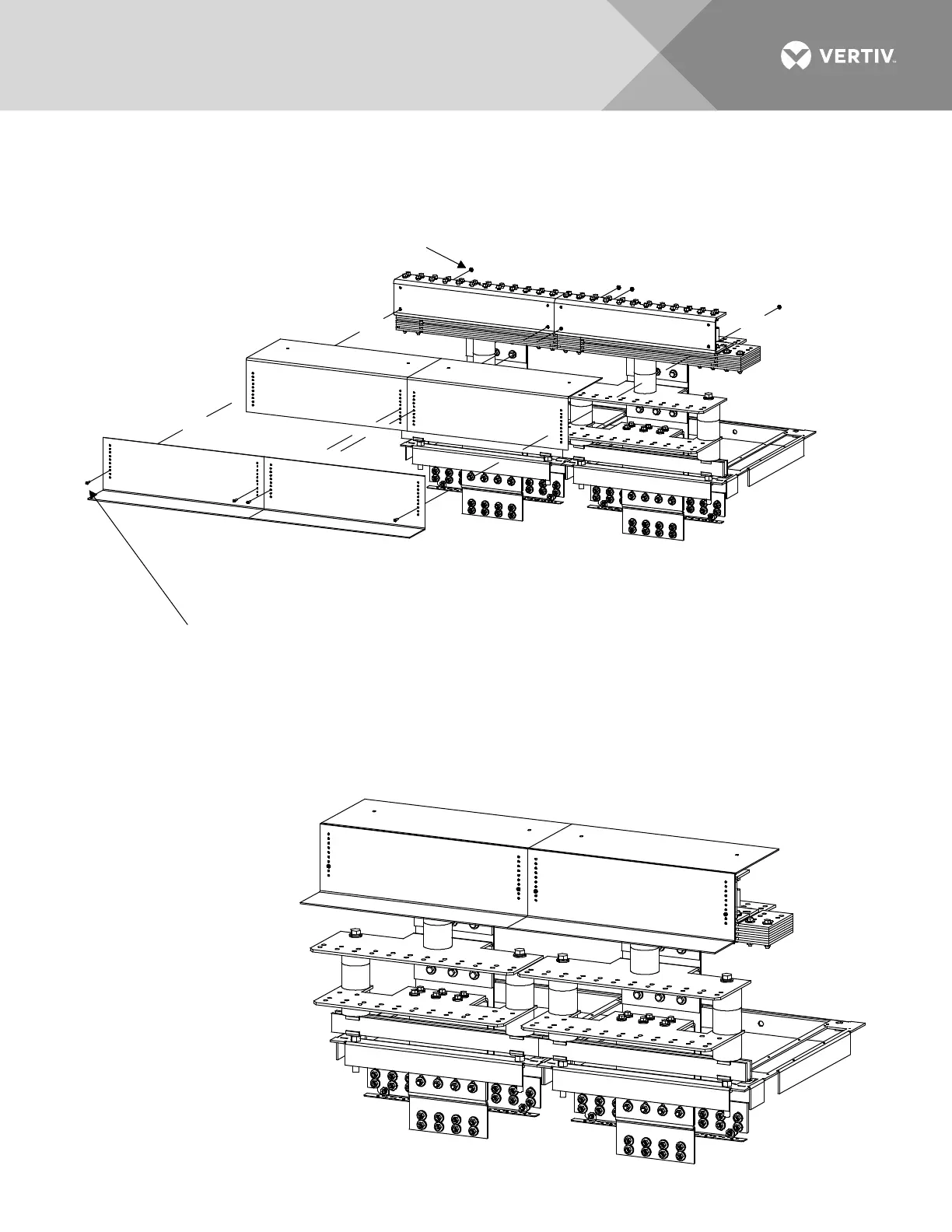

Figure 48: Power/Distribution Bay Load Return Lug Extension Busbar Assembly (P/N 514543) Assembly
Procedure Step 3A
STEP 3A
Install "Covers"
(List 101 and 111 Bays).
(2*) 10-32 Lock Nut, P/N 104564
(2*) 10-32 x 3/4" Tap Screw, P/N 218706500
* Parts are from the P/N 514688 or 514689 Kit.
Quantities are per Kit, two Kits shown in Illustrations.
The following parts are not used: (2) 1/4-20 x 1/2" Bolt
(P/N 227640200), (2) 1/4" Lock Washer (P/N 215111100),
(2) 1/4" Flat Washer (P/N 214110100)
Assembled
View
Rear Top
of Bay
