Vivotek ND8301 User Manual

VIVOTEK - A Leading Provider of Multimedia Communication Solutions
2 - User's Manual

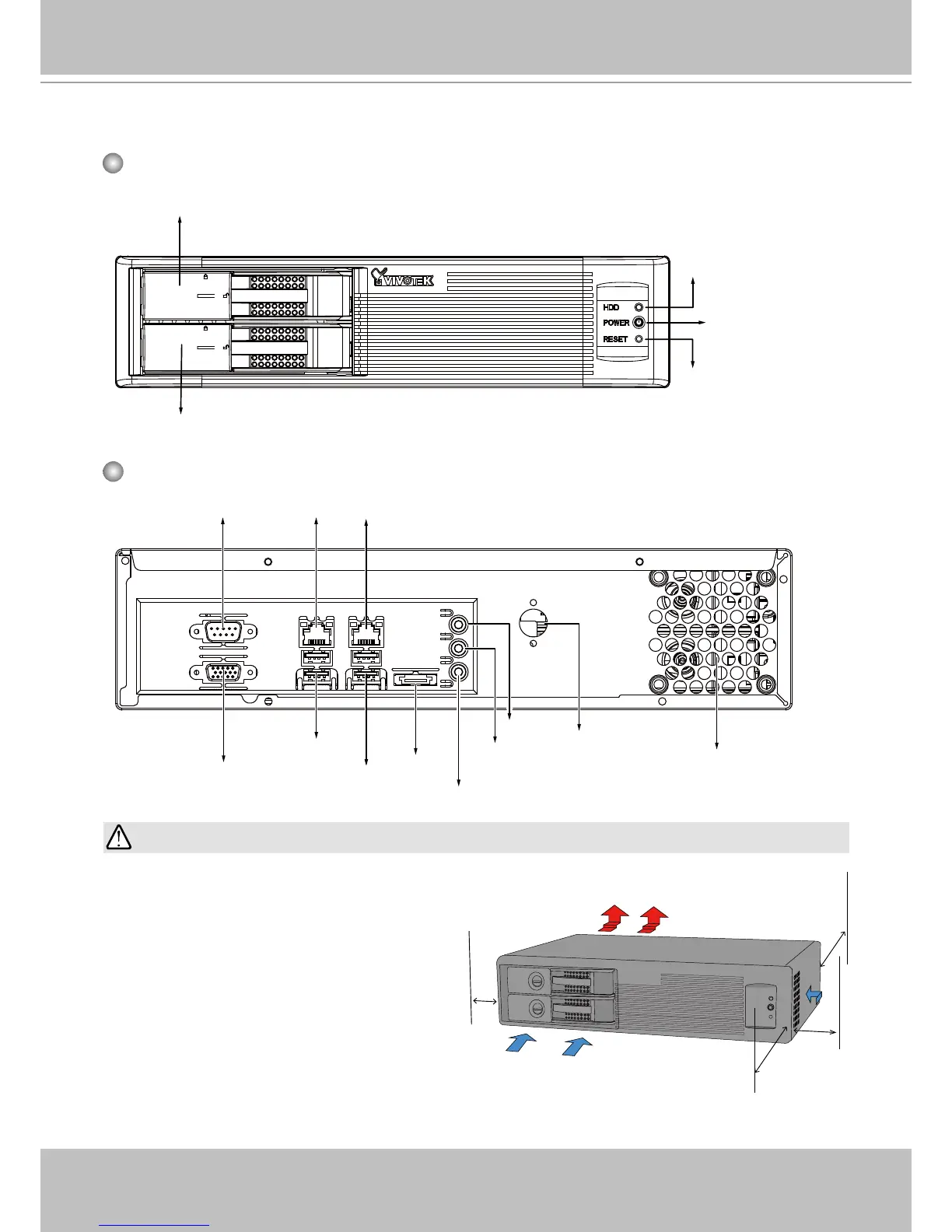

Physical Description
Front View
Disk 1
Disk 2
HDD LED
Power
button & LED
Reset button
Rear View
RS-232 (reserved) LAN
WAN
VGA
USB2
combo
USB1
combo
eSATA
MIC-In
Line Out
Line In
DC Power
Fan exhaust
outlet
IMPORTANT:
It is important to leave a clearance of 15cm
to the rear side of the chassis. The clearance
is required to ensure an adequate airow
through the chassis to ventilate heat. A 5cm
clearance is also required on both sides of
the chassis.
To ensure normal operation, maintain ambi-
ent airow. Do not block the airow around
chassis such as placing the system in a
closed cabinet.
15cm
5cm
5cm
5cm
