Chapter 2: System Description
This chapter describes the main components of the Volcano system, as well as the
available options.

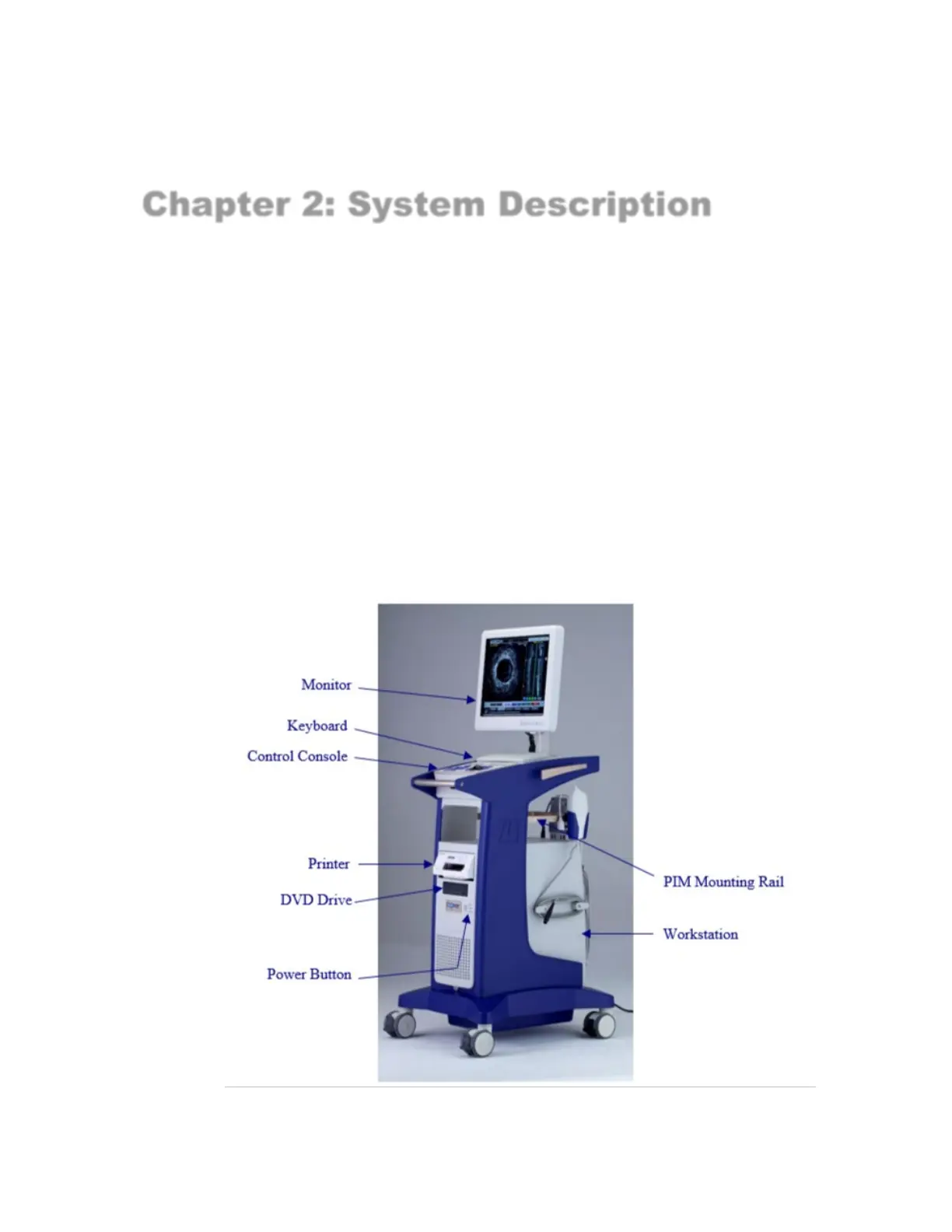

System Overview
The Volcano system consists of the following main components:
 Monitor
 Control Console (set in Control Pocket)
 Keyboard
 Workstation (Central Processing Unit) [includes inputs/outputs]
 DVD Drive
 Patient Interface Modules (PIMs)
 Printer
