Page 64 of 148 300004969171/B

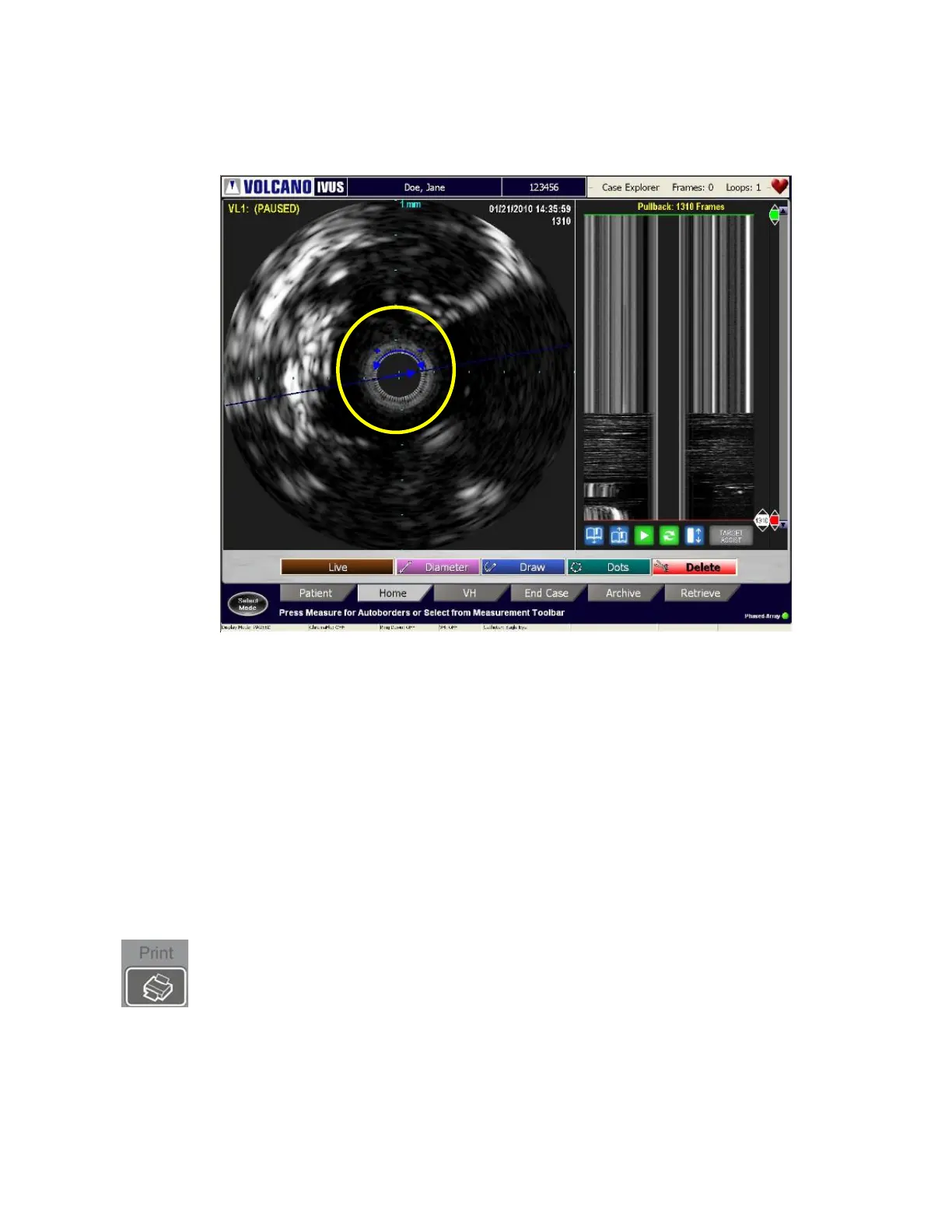

Figure 34: Rotated ILD Display
Display Mode
The display mode can be changed to display a larger tomographic view.
Select the display button on the control console to increase or decrease the size of the
tomographic view. This view provides another option for printing an image as a report.
The ILD and navigation buttons are not displayed in this view. All of the functions from
the control console, such as live, record, bookmark, etc., are available in this view.
Printing
This system uses a high quality digital photo printer for obtaining single copy 4 x 6 inch
(10 x 15 cm) photo prints from real time or stored images.
To print:
1 Be sure the paper is loaded.
2 Begin printing the screen by pressing the Print key on the control console.
