Patient Interface Module
The imaging catheter connects to the patient interface module (also referred to as the
PIM), which excites the catheter’s transducer elements to transmit ultrasonic energy to
the surrounding tissue. The PIM, shown in the figure below, amplifies and processes the
resultant echo signals from the transducer, sending them to the console through its
connection on the rear panel of the console. Additionally, the PIM provides patient
electrical isolation.

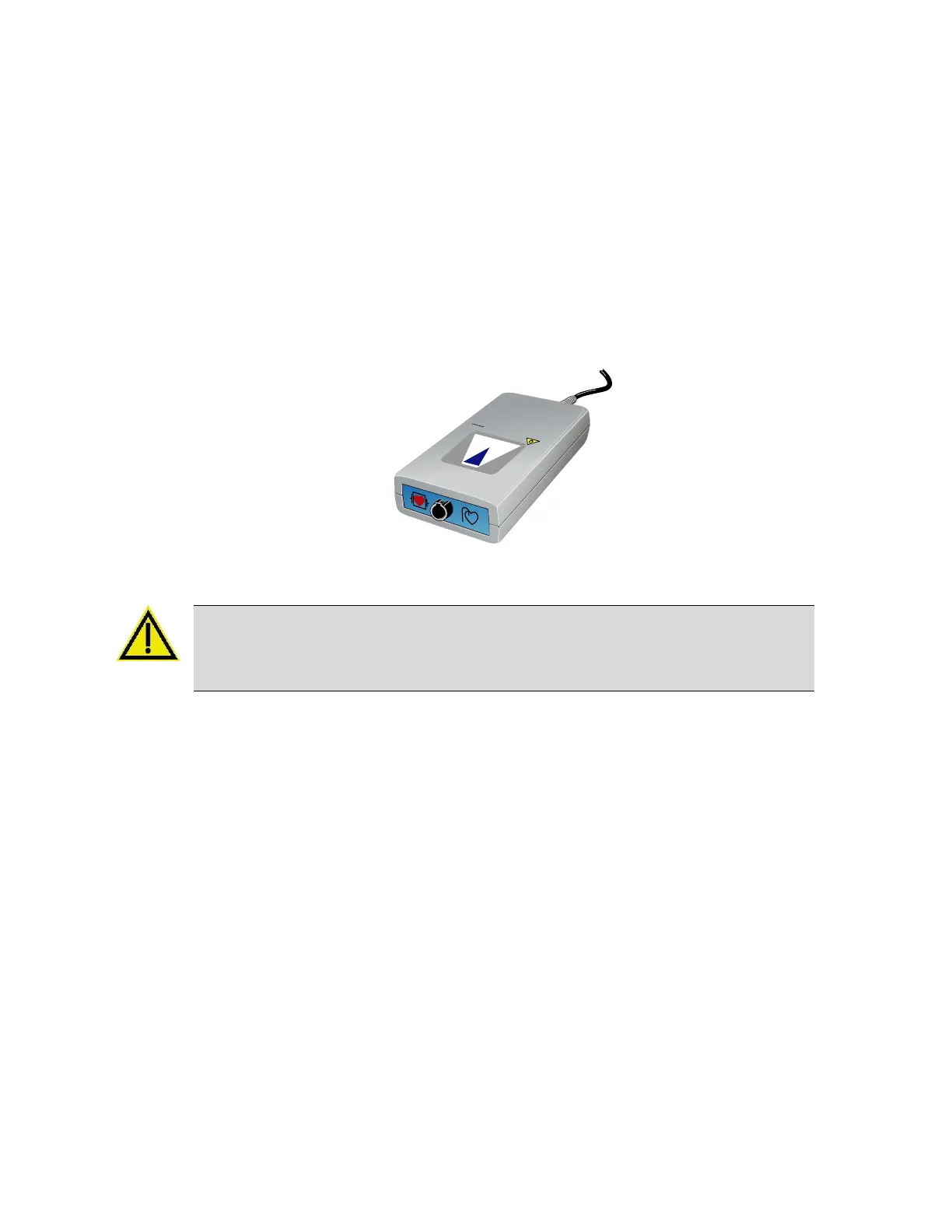

Figure 11: Patient Interface Module
WARNING: The PIM’s cable may be damaged if equipment is rolled on it. Do not
pull on the cable, place it where there is any traffic, or use extensive force; the strain
relief ends may be damaged. Do not use the system if the outer case or wires appear
damaged.
Catheters
IVUS imaging catheters are sold separately. Please contact Volcano for more
information. The Volcano system is compatible with the following Volcano IVUS
catheters:
 Eagle Eye Gold
 Eagle Eye Platinum
 Revolution 45MHz
 Requires Volcano Revolution Option (see below)
 Visions PV .014P
 Visions PV .018
 Visions PV .035
 Pioneer Plus
