Page 54 of 148 300004969171/B
Chapter 6: Recording IVUS Images
This chapter describes the methods of recording images. Please refer to the previous
chapter for information on inserting the catheter and adjusting the image settings.
Overview
Images can be recorded by either saving a single frame (Save Frame) or recording a
video loop of multiple frames.
Recording a Video Loop
Prior to recording, select the intended pullback rate as shown below. Select from manual
or automatic pullback rates. Rates of 0.5mm/sec or 1.0mm/sec are available for automatic
pullbacks.

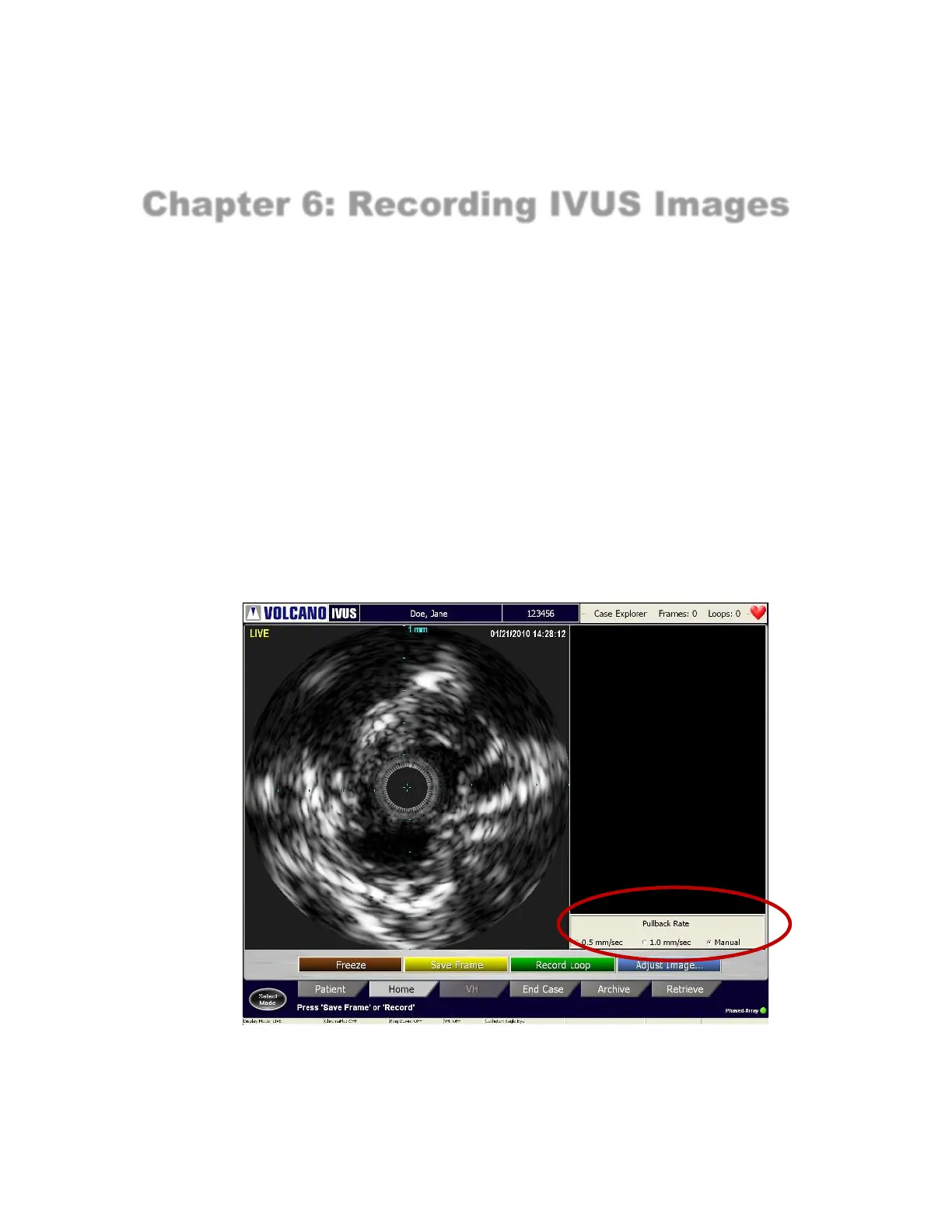

Figure 24: Select the desired pullback rate.
