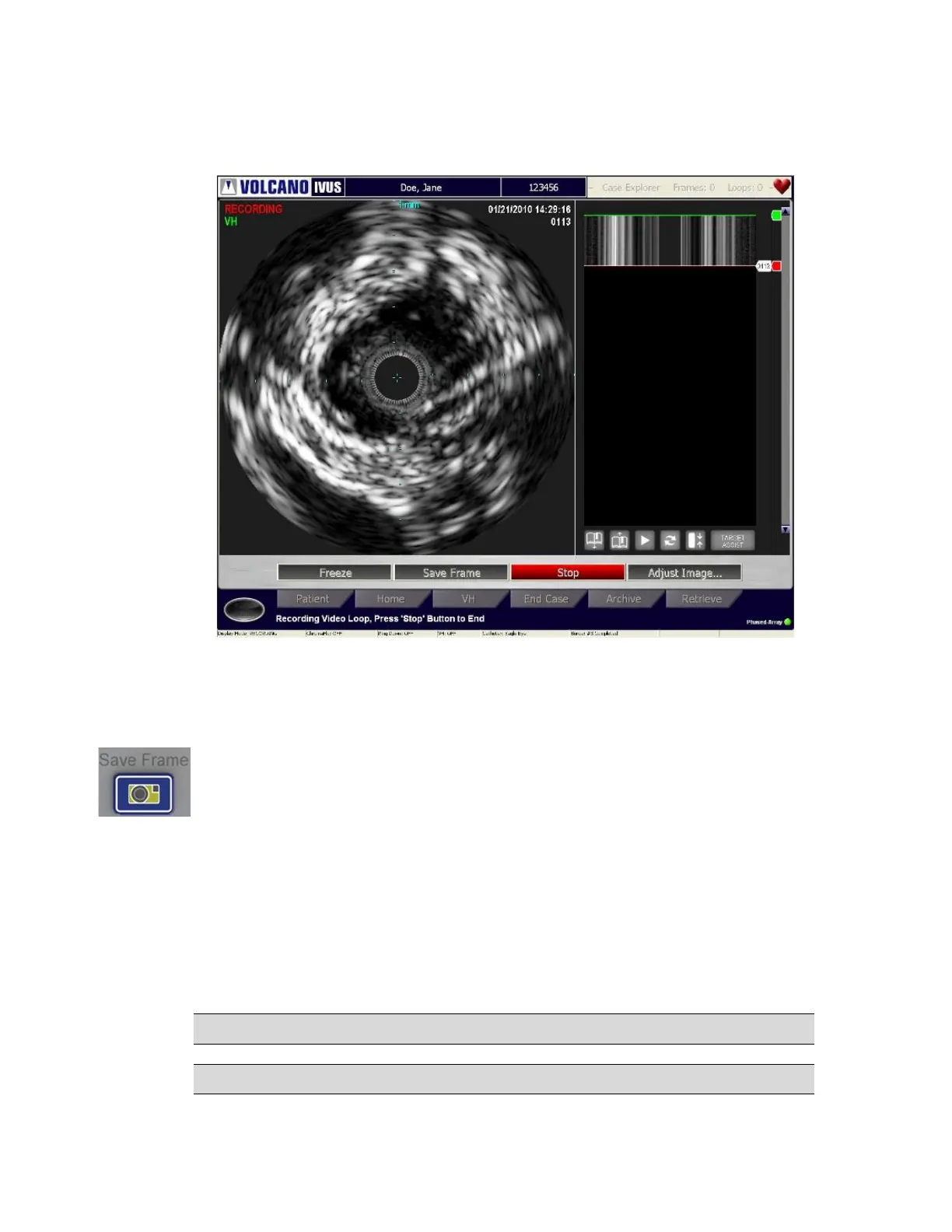

Figure 25: Recording a Video Loop
Saving a Frame
The Volcano system can store up to 99 frame images from a live view or a video loop.
Saved frames are labeled automatically and numbered F1, F2, F3, etc.
To save a frame:
1 Press the Save Frame button on the control console or on the Home screen in live
mode. The current real-time image is stored and labeled , starting with F1. The
frame may be viewed in either grayscale or VH mode.
2 Press Save Frame again to store another image as F2, and so on. A maximum of
99 frames can be saved.
3 Frames may be saved while a playing a video loop if the VH display is turned off.
Only frames that are saved in live mode, while using an Eagle Eye catheter and
with an ECG signal present, may display VH.
NOTE 1: Frames can be saved while playing a video loop.
NOTE 2: The saved frame count is displayed at the top of the Case Explorer.
