Activating VH Display

Select the VH button on the control console to enable or disable VH display feature. The

default setting is VH off.

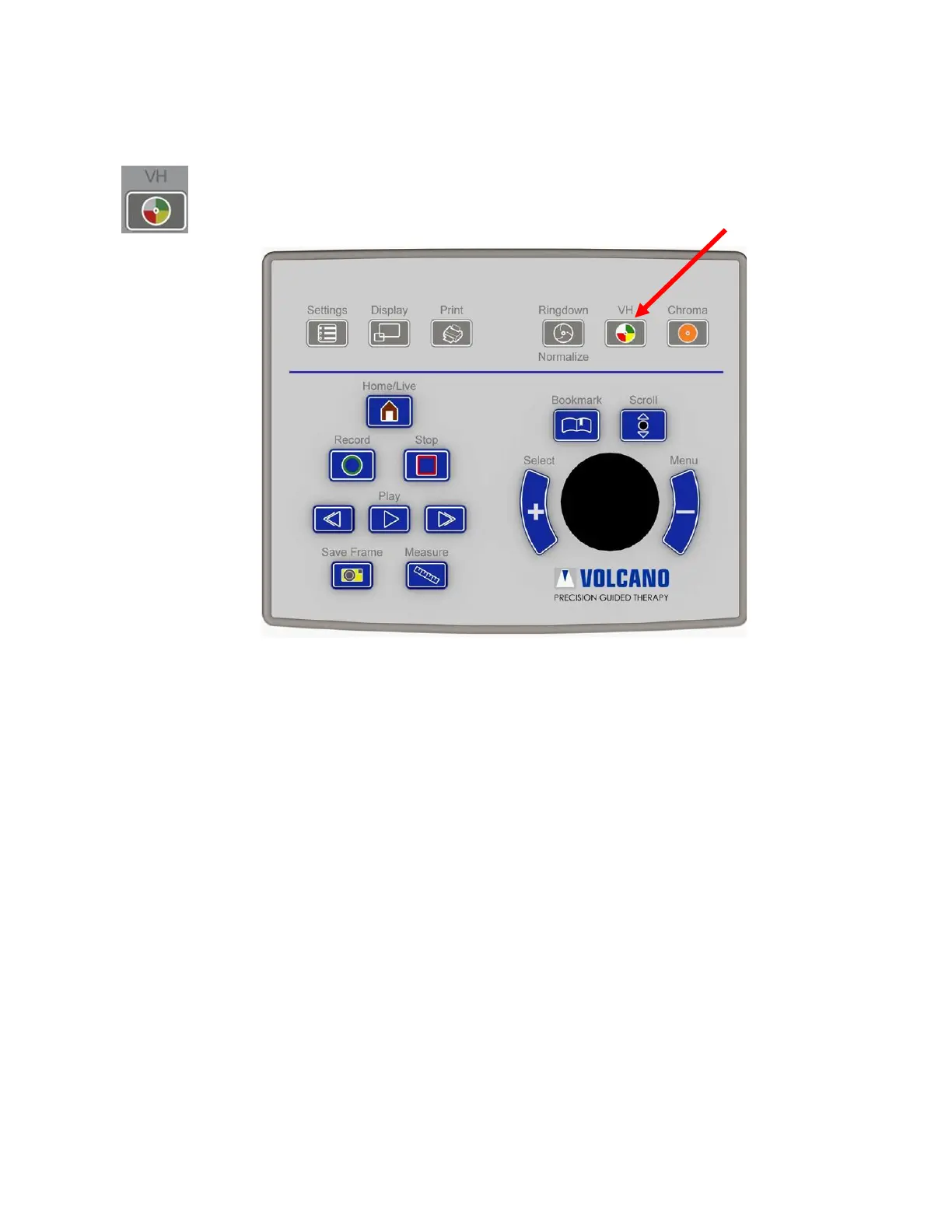

Figure 42: Control Console
