300004969171/B Page 63 of 148

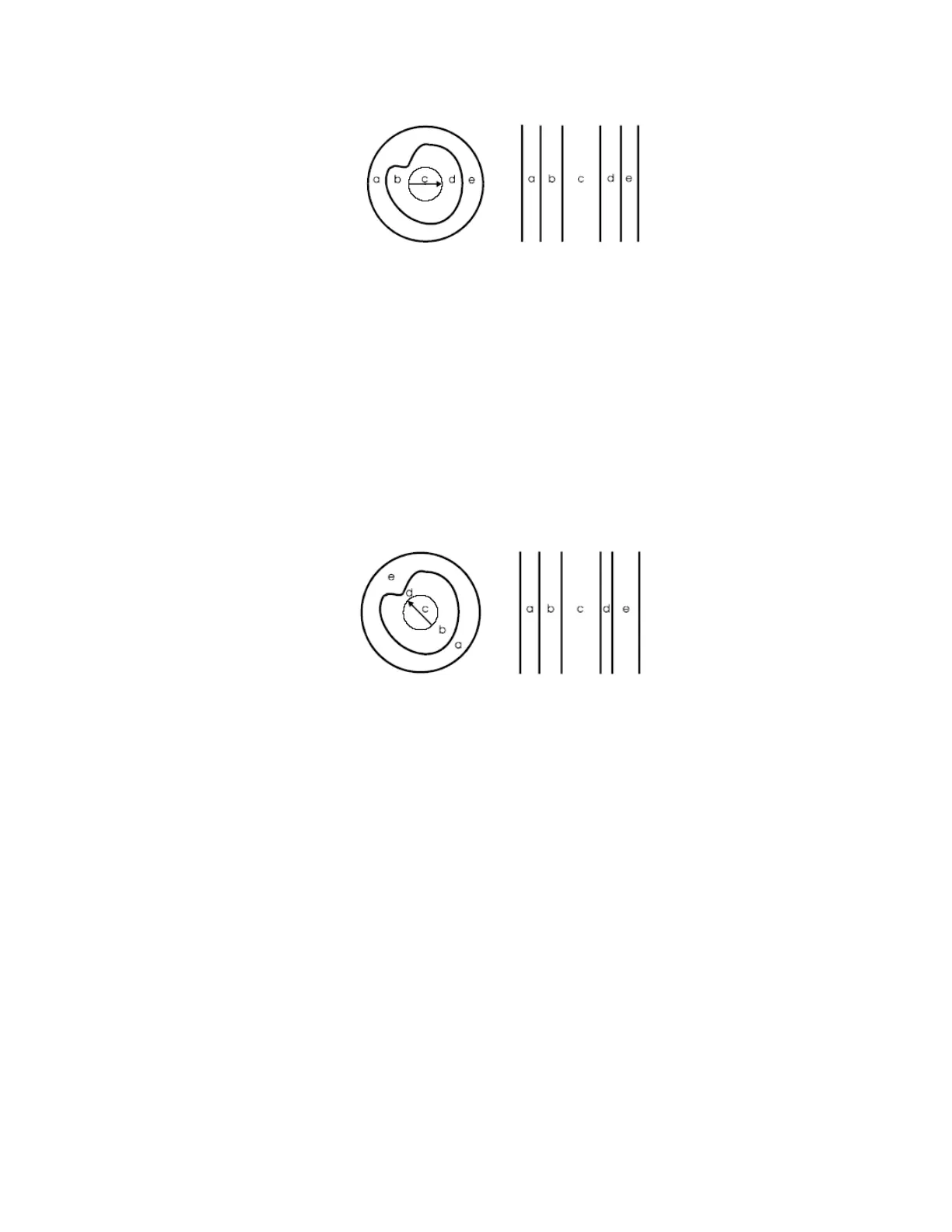

Figure 32: ILD Display of Tomographic View
To rotate the vessel:
1 Mouse over the arrow at the center of the tomographic image until a horizontal
blue line spans the image and a half circle with arrows appear in the center.
2 Press the Select key (+) to rotate the arrow in the counterclockwise direction;
alternately press the Menu key (-) to rotate the arrow 10 degrees in the clockwise
direction.
3 Continue clicking to rotate until the arrow is pointing in the desired direction.
Refer to the figure below to see how the ILD corresponds to the tomographic view
after the arrow has been rotated.
Figure 33: Rotated ILD Display of Tomographic Image
