LTC Repair Electrical Troubleshooting
wc_tx000429gb.fm 127

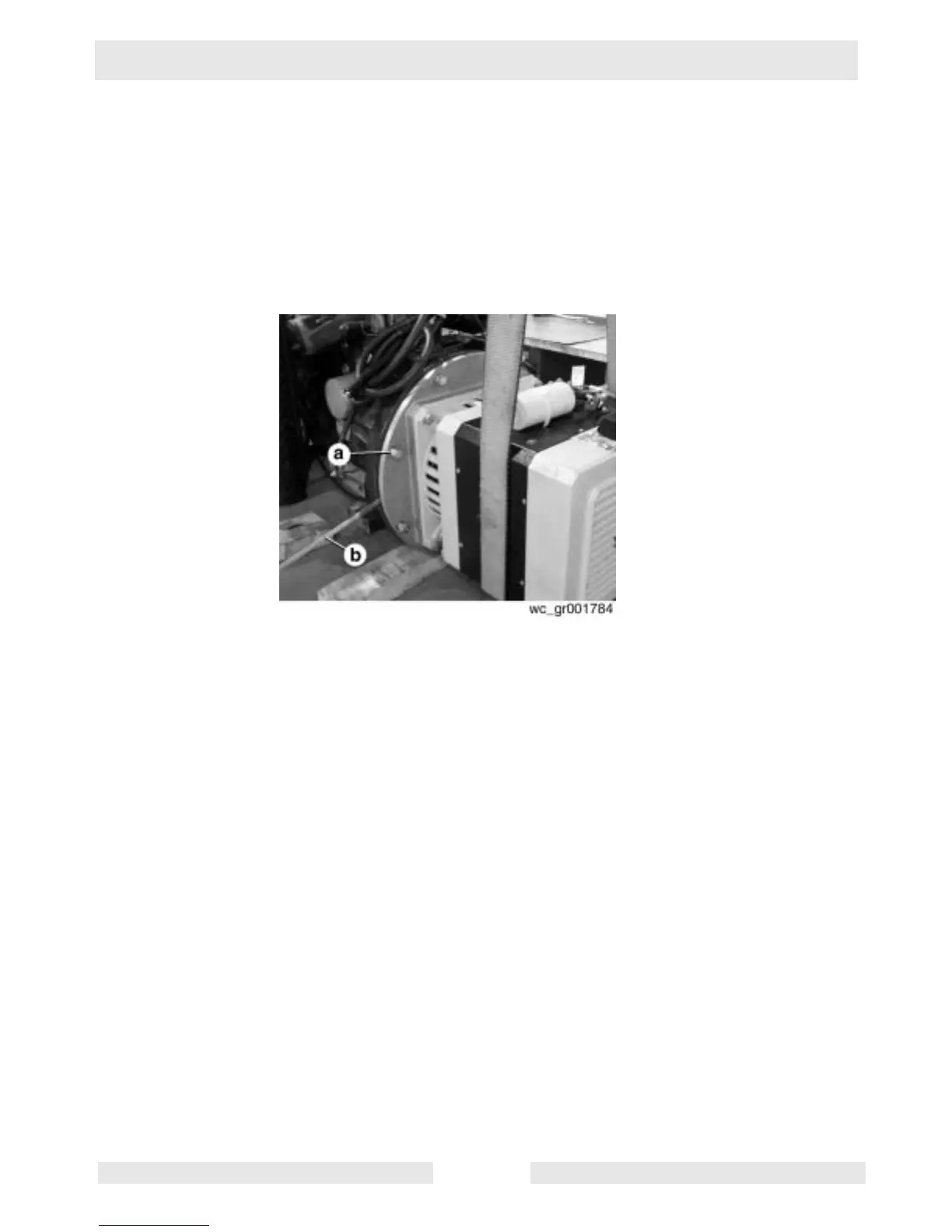

See Graphic: wc_gr001784
Method 2
7.31.8 Remove the M8 bolts (a) securing the engine adapter flange to the
engine.
7.31.9 Using two screwdrivers (b) or equivalent pry bars, carefully pry the
stator assembly from the engine/rotor assembly.
