Operation LTC 4L
wc_tx000543gb.fm 34

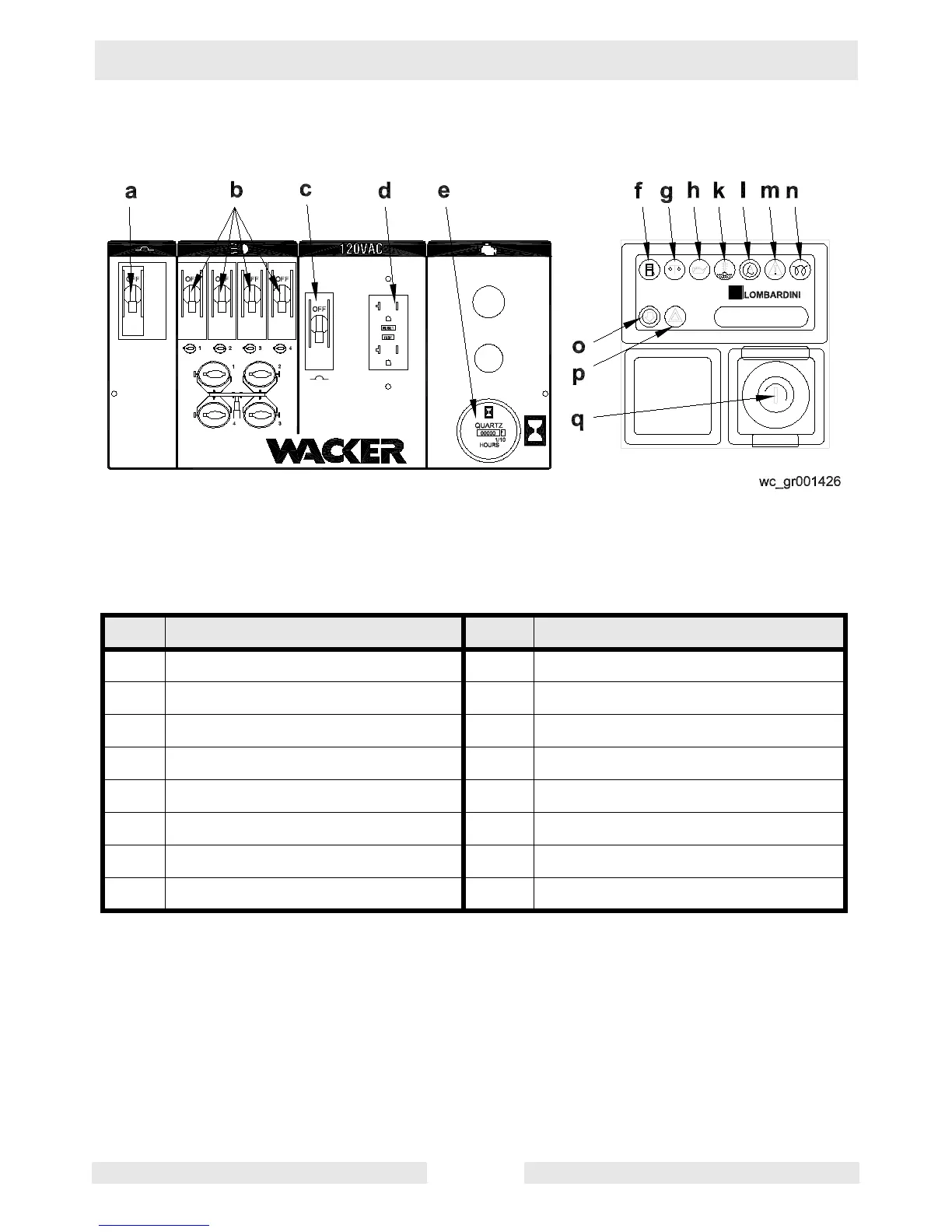

3.11 Control Panels—Lombardini (Manual Winch System)
Floodlight Control Panel Engine Control Panel
Ref. Description Ref. Description
a 50 Amp circuit breaker k High coolant temperature shutdown
b 15 Amp lights circuit breaker l Alternator indicator
c 20 Amp GFI circuit breaker m Auxiliary light (not used)
d 20 Amp GFI receptacle n Glow plug indicator
e Hour meter o Air filter restriction indicator
f Low fuel indicator (not used) p Auxiliary light (not used)
g Safety shutdown indicator q Key access door
h Low oil pressure shutdown
