LTC 4L Operation
wc_tx000543gb.fm 37

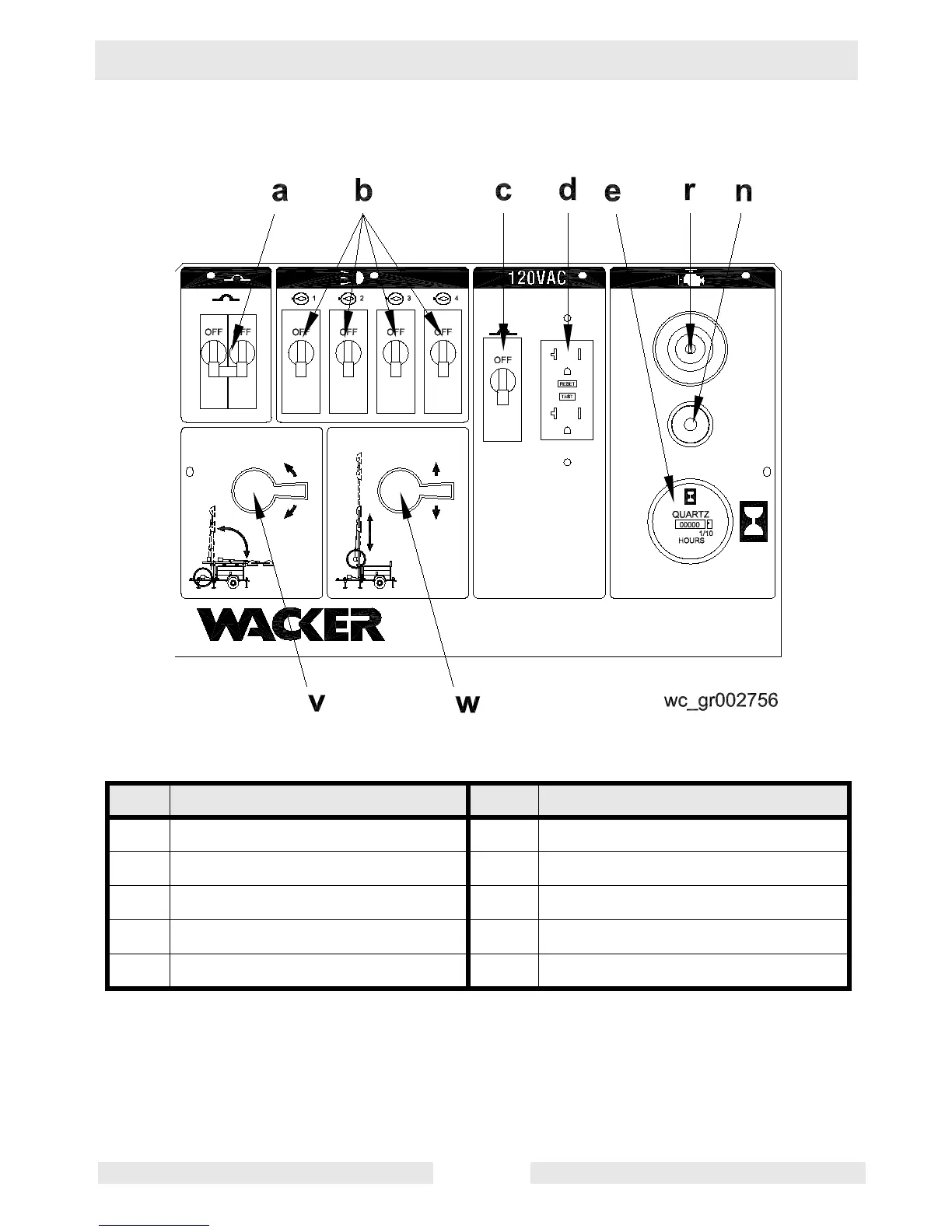

3.14 Control Panel—CAT (Power Winch System)
Ref. Description Ref. Description
a 25 Amp circuit breaker n Glow plug indicator
b 15 Amp lights circuit breaker r Key switch
c 20 Amp GFI circuit breaker v Vertical rotary switch
d 20 Amp GFI outlet w Telescope rotary switch
e Hour meter
