WACKER Group LTC 4 - Lights do not Illuminate-Flowchart 1 A

LTC Repair Electrical Troubleshooting
wc_tx000429gb.fm 93

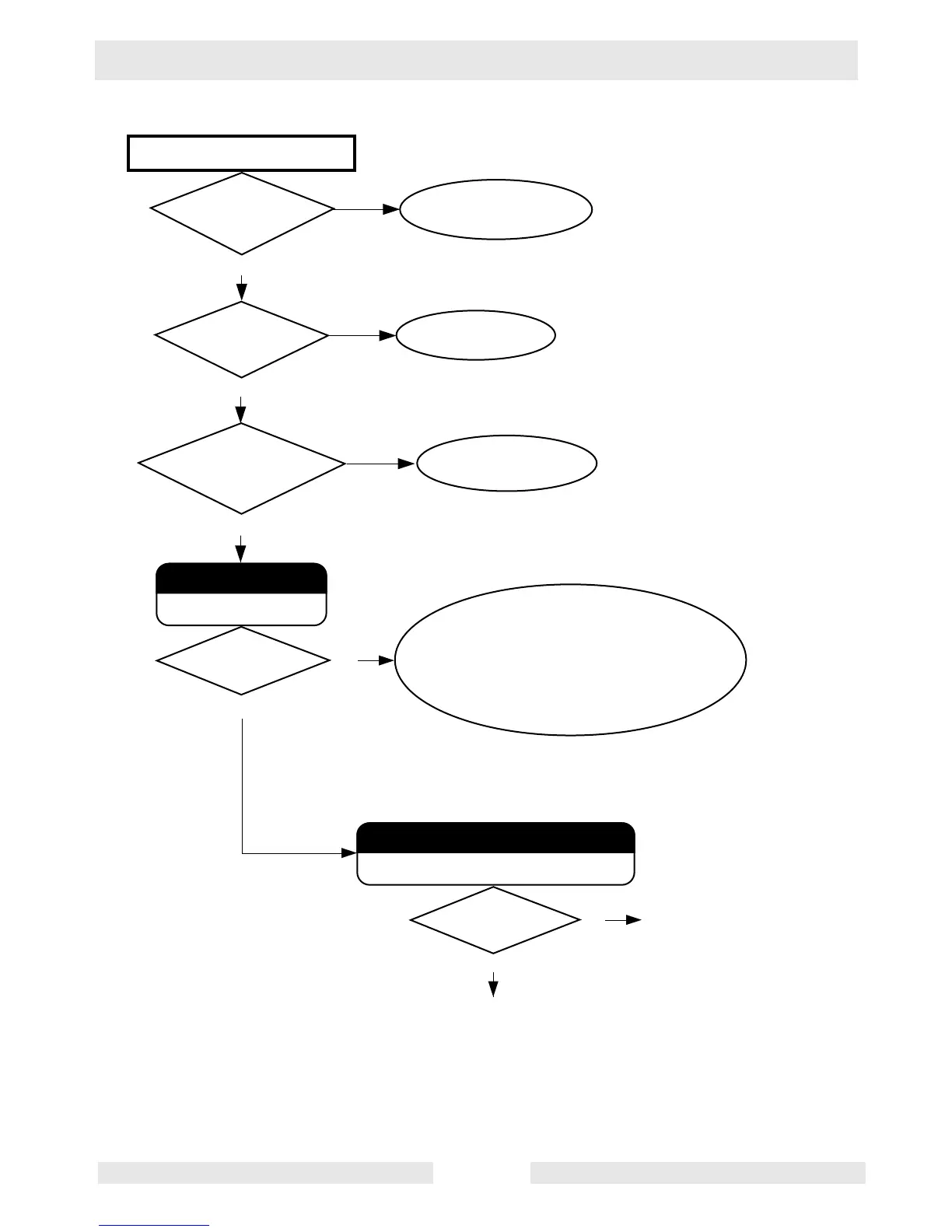

7.8 Lights do not Illuminate—Flowchart 1A
Light(s) do not illuminate
Check engine
rpm with a photo tach
or vibrotach (Sirometer (wire whip)).
If rpm is low:
1. Change engine air and fuel filters.
2. If necessary, reposition speed control
lever on injection pump.
Is circuit
breaker(s) in closed
position?
Close circuit breaker(s).
Are
bulbs black or
burnt?
Replace bulbs.
No
No
Ye s
Ye s
See Flowchart 1B
See Flowchart 1C
Is wiring
connected at quick-
disconnects?
Connect
quick-disconnects.
Ye s
No
Is
engine speed
correct?
No
Ye s
Checking engine speed
Check engine speed.
Is
120V±10%
measured?
wc_gr003099
Ye s
No
Checking voltage to main circuit breaker
Check voltage to main circuit breaker.
