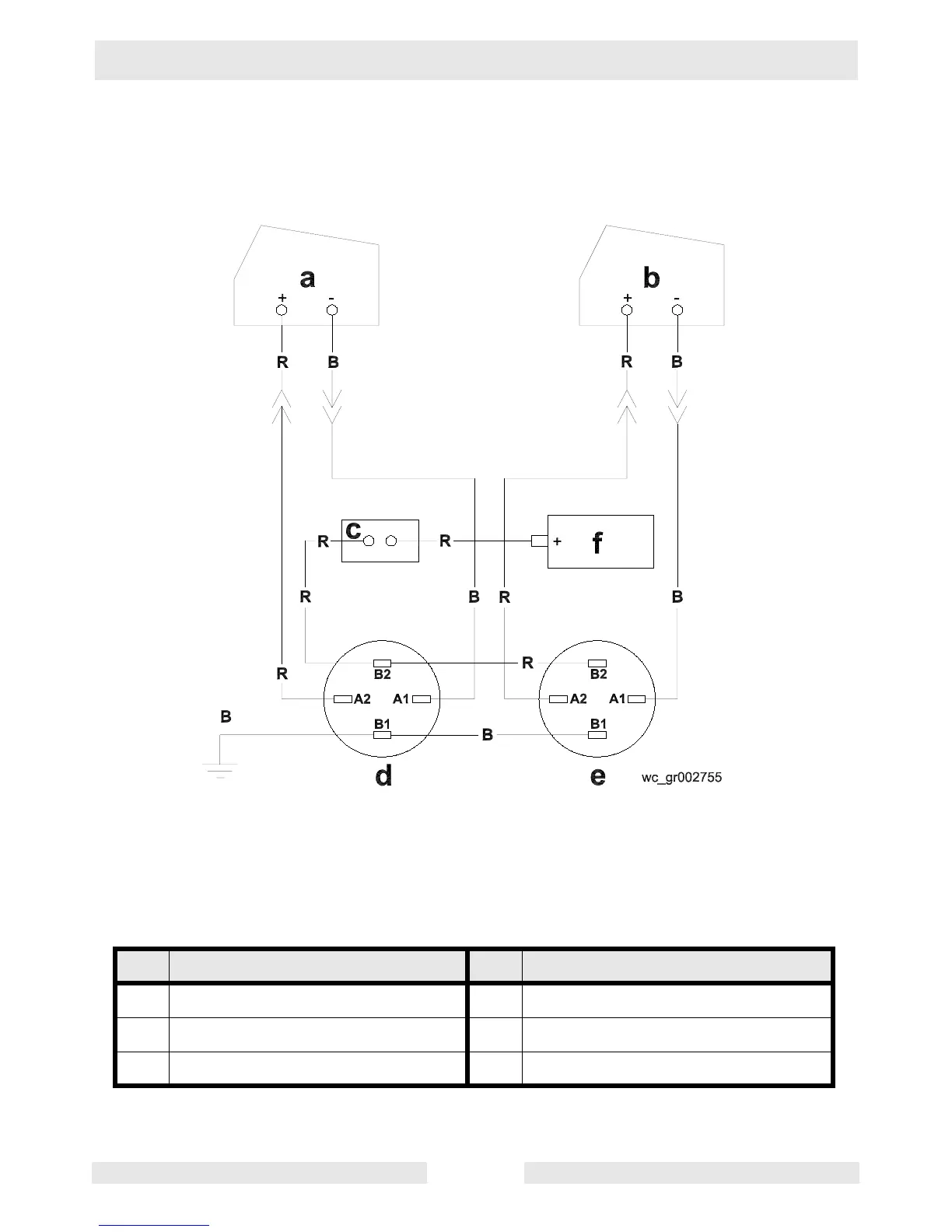

4.20 Power Winch Schematic
Ref. Description Ref. Description
a Vertical winch d Vertical rotary switch
b Telescope winch e Telescope rotary switch
c Fuse / breaker f Starter
