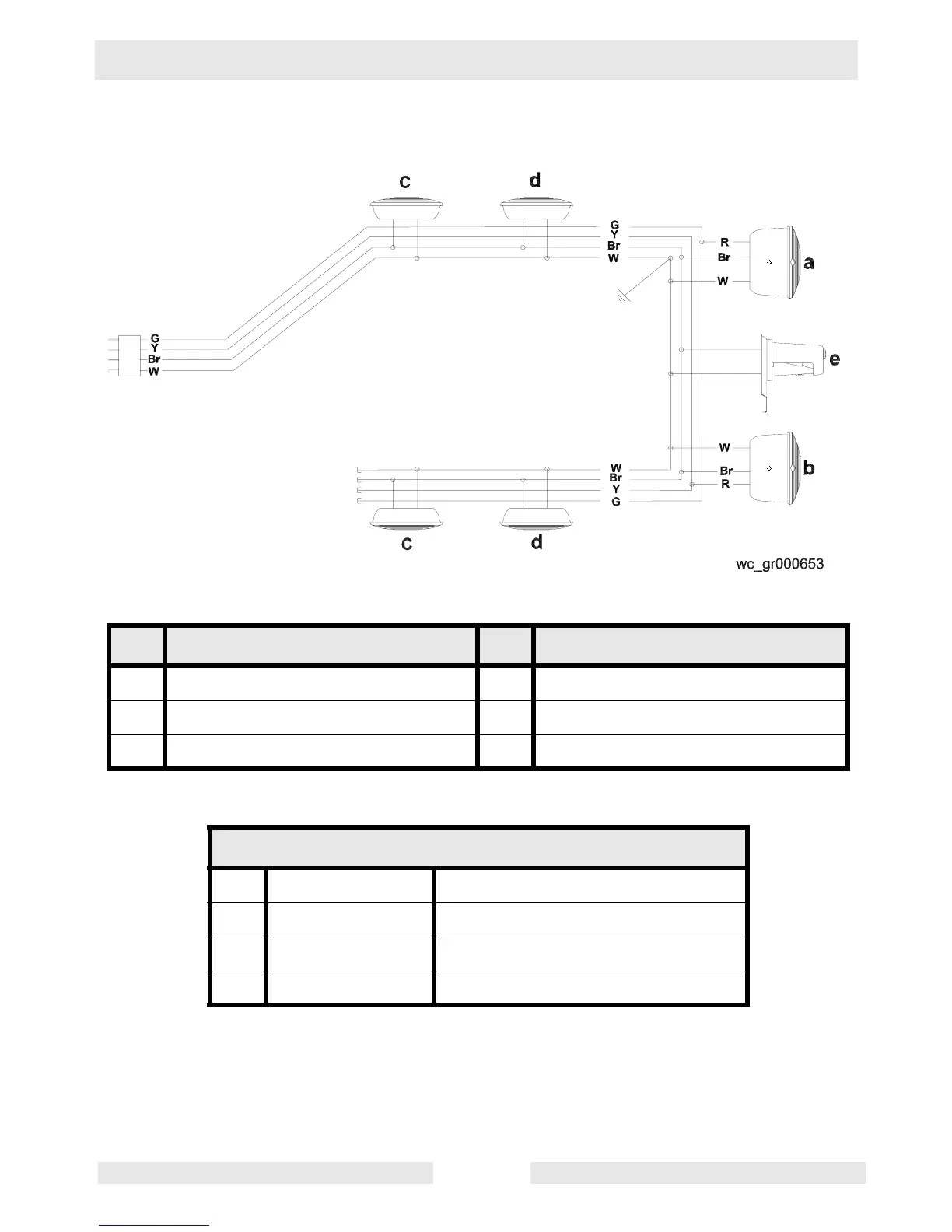

4.21 Trailer Wiring
Ref. Description Ref. Description
a Right stop, turn and tail light d Side light, red
b Left stop, turn and tail light e License plate light
c Side light, amber
Wire Colors
G Green Right stop and turn light
Y Yellow Left stop and turn light
Br Brown License plate, tail and side light
W White Ground
To Next Page
