Introduction
Meaning
Loading the dumper
Position (2001)
At the rear right on the chassis
Meaning
Maintenance prop
Position
On the front chassis (1001, 1501) and on the swiveling console (2001)
Meaning
Identifies the design-specific machine speed.
Position
At the rear of the machine (left, right and rear).

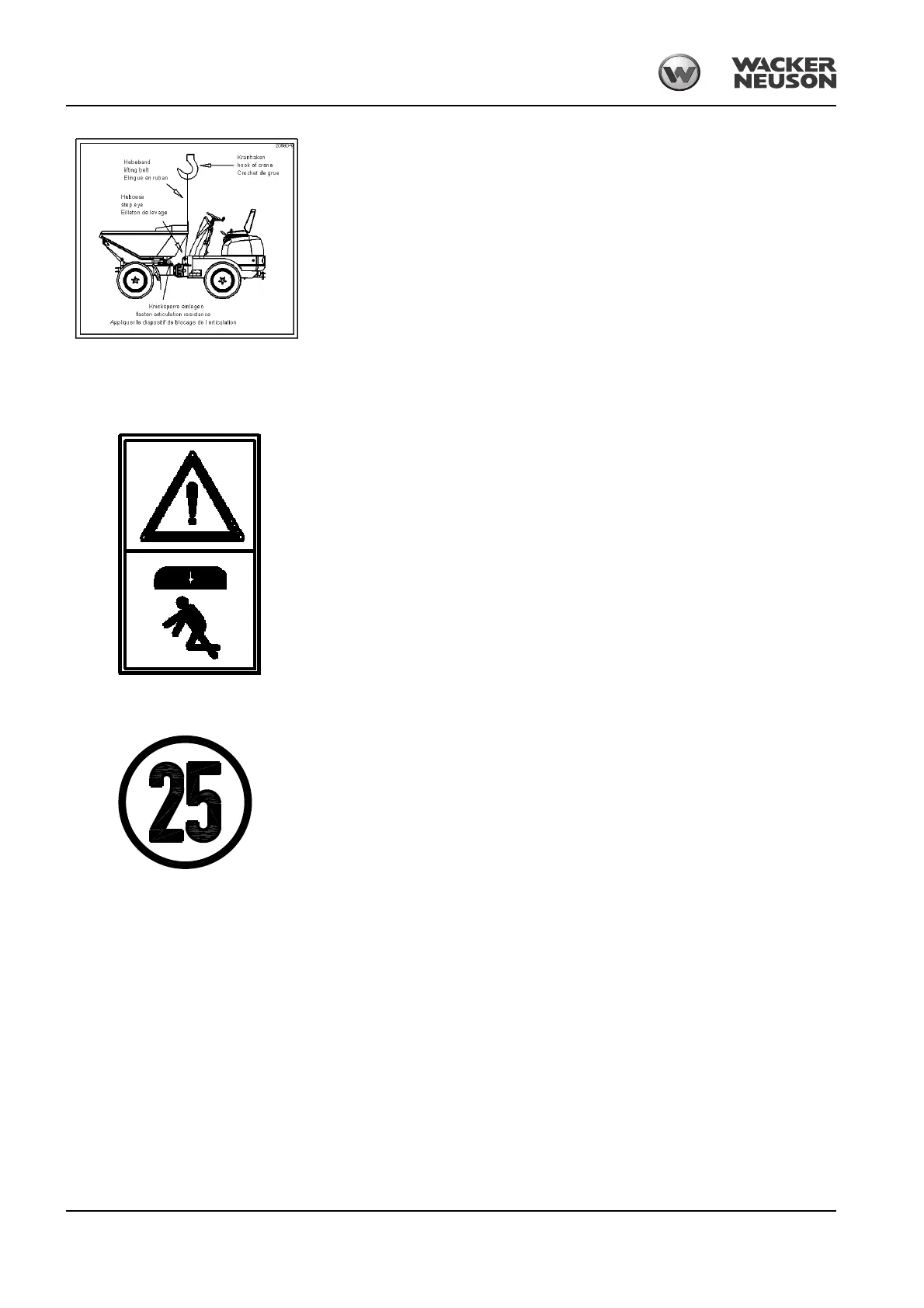

Fig. 23: Loading the dumper
Fig. 24: Maintenance prop
Fig. 25: (symbolic representation)
