5 Operation

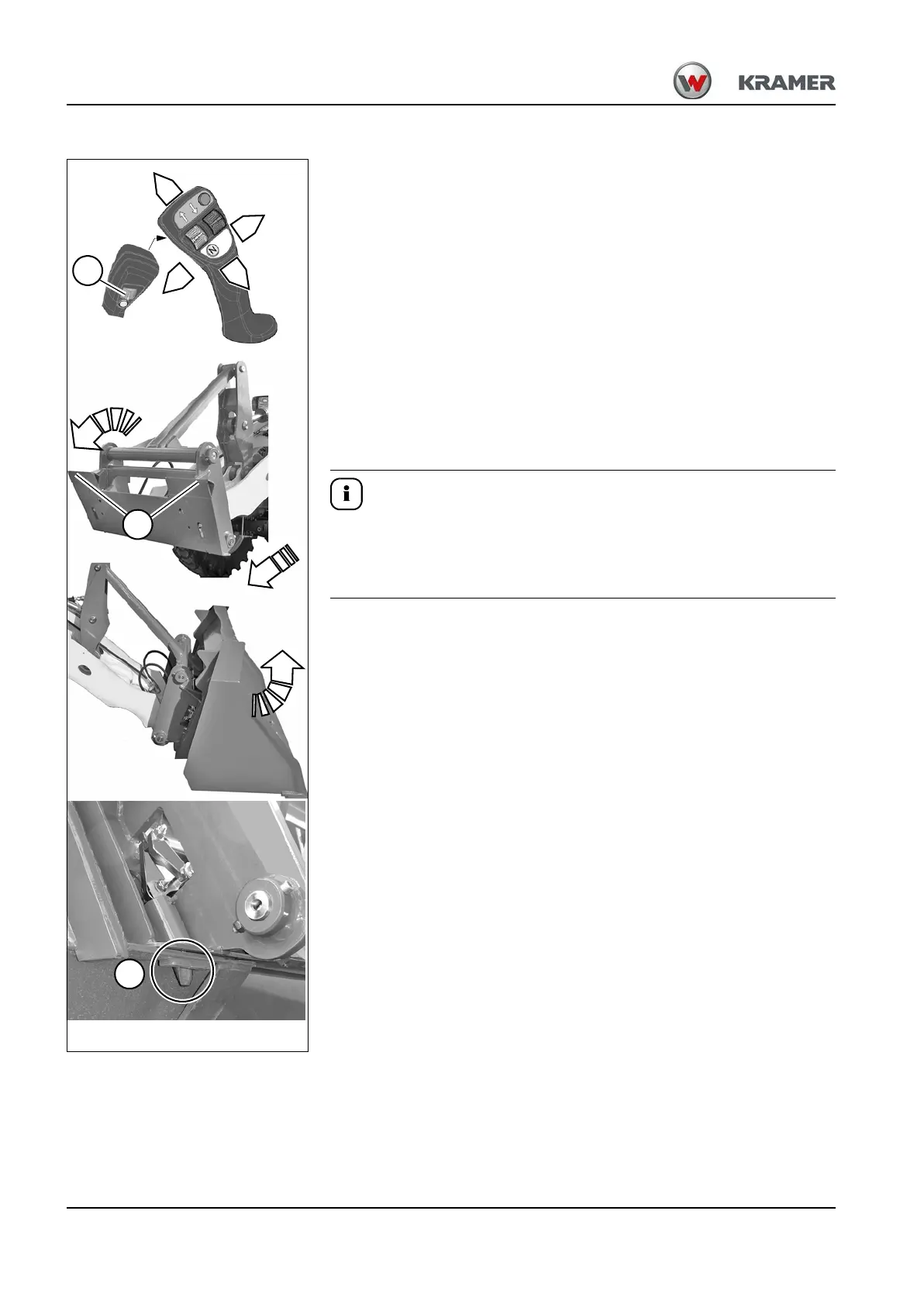

Pick up and lock the attachment to the SKID STEER quickhitch
1. Approach the machine to the attachment.
2. Lower the loader unit. To do this, push the joystick forward C.
3. Tilt the quickhitch facility forward. To do this, press the joystick to the
right B.
4. Drive the machine forward until the supports E of the quickhitch are
directly beneath the catch hooks of the attachment.
5. Raise the loader unit until the quickhitch facility engages in the lifting
points of the attachment. To do this, pull the joystick downward D.
6. Tilt in the quickhitch completely.
To do this, press the joystick to the left A.
7. Lock the attachment. To do this, press the rocker switch 52 in the
joystick to the left in the travel direction
– see "Locking the attachment" on page 5-42.
8. Ensure that the attachment is visibly locked on either side with lock
pins F.
Once it is locked, the attachment is secured against unintentional
unlocking. It can only be unlocked from the quickhitch by means of the
two-hand controls – see "Removing an attachment from a SKID STEER
quickhitch" on page 5-64.
