WAGNER PROTEC 95-150 - Dimensions and Connections for PROTEC 60-240

23
VERSION 01/2020
ORDER NUMBER DOC2340282
IceBreaker 150-300 cm
3

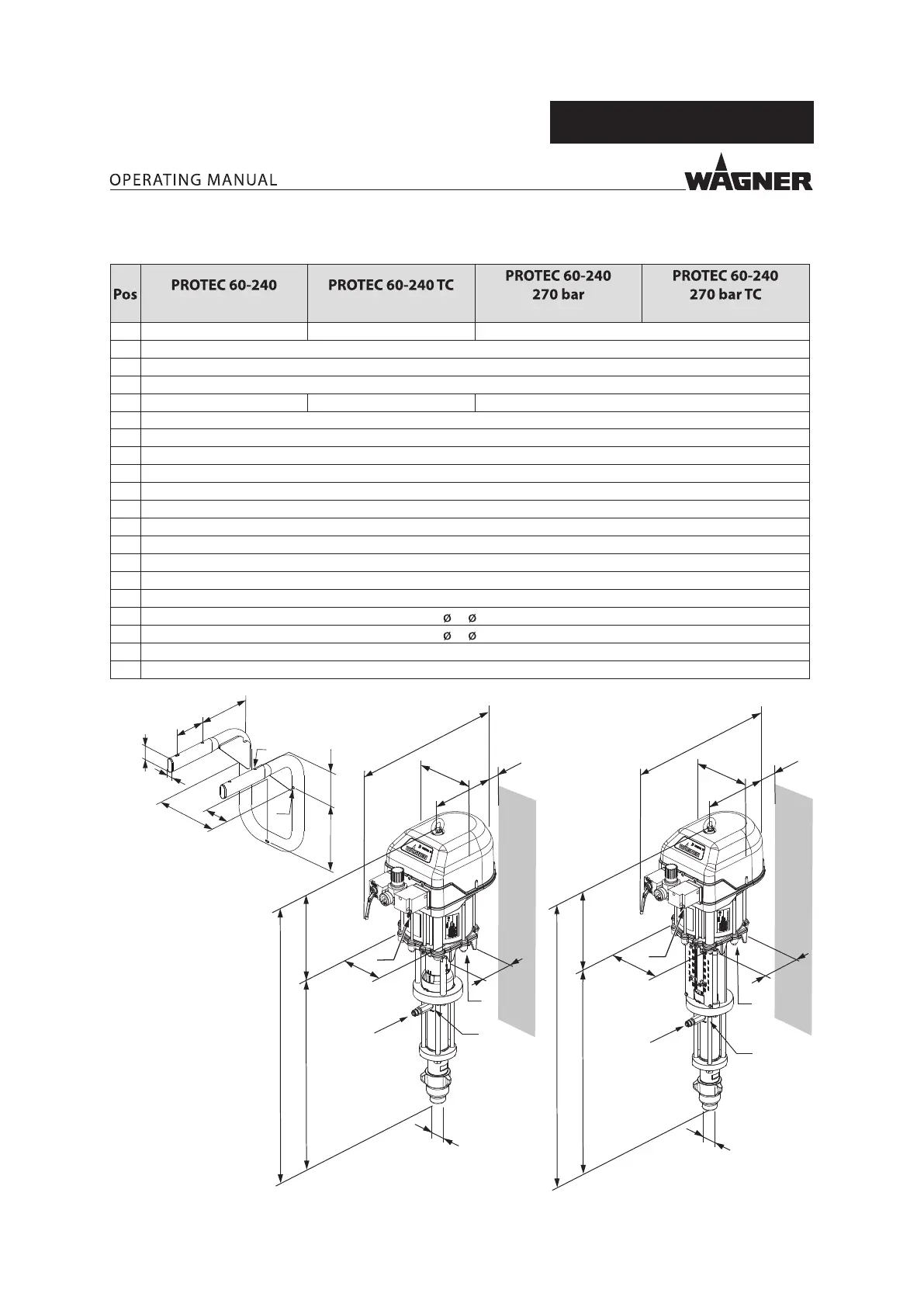

5.5.5 DIMENSIONS AND CONNECTIONS FOR PROTEC 60240
mm; inch mm; inch
mm; inch mm; inch
A 1169; 46 1264; 49.8 1169; 46
B 308; 12.1
C ~ 554; 21.8
D 483;19
E 686; 27 781; 30.7 686; 27
F 246; 9.7
G 230; 9.1
H 110; 4.3
I 20×48; 0.8×1.9
J M8
K G1½" (internal thread)
L1 M24×1.5 (external thread)
L2 G1/2“
M G1"
O 135.5; 5.3
P 238; 9.4
Q 9; 0.35
R 9; 0.35
S 206; 8.1
T 17; 0.67
R
S
H
Q
O
P
G
G/2
I (IbxIh)
Ib
Ih
J
C
F
T
H
D
(E)
A
G
K
B
B_07672
M
L2
L1
TC
J
C
F
T
H
D
(E)
A
G
K
B
M
L2
L1
