WAGNER PROTEC 95-150 - Connection Sets TC (for Version with Stroke Sensor)

70
VERSION 01/2020
ORDER NUMBER DOC2340282
IceBreaker 150-300 cm
3

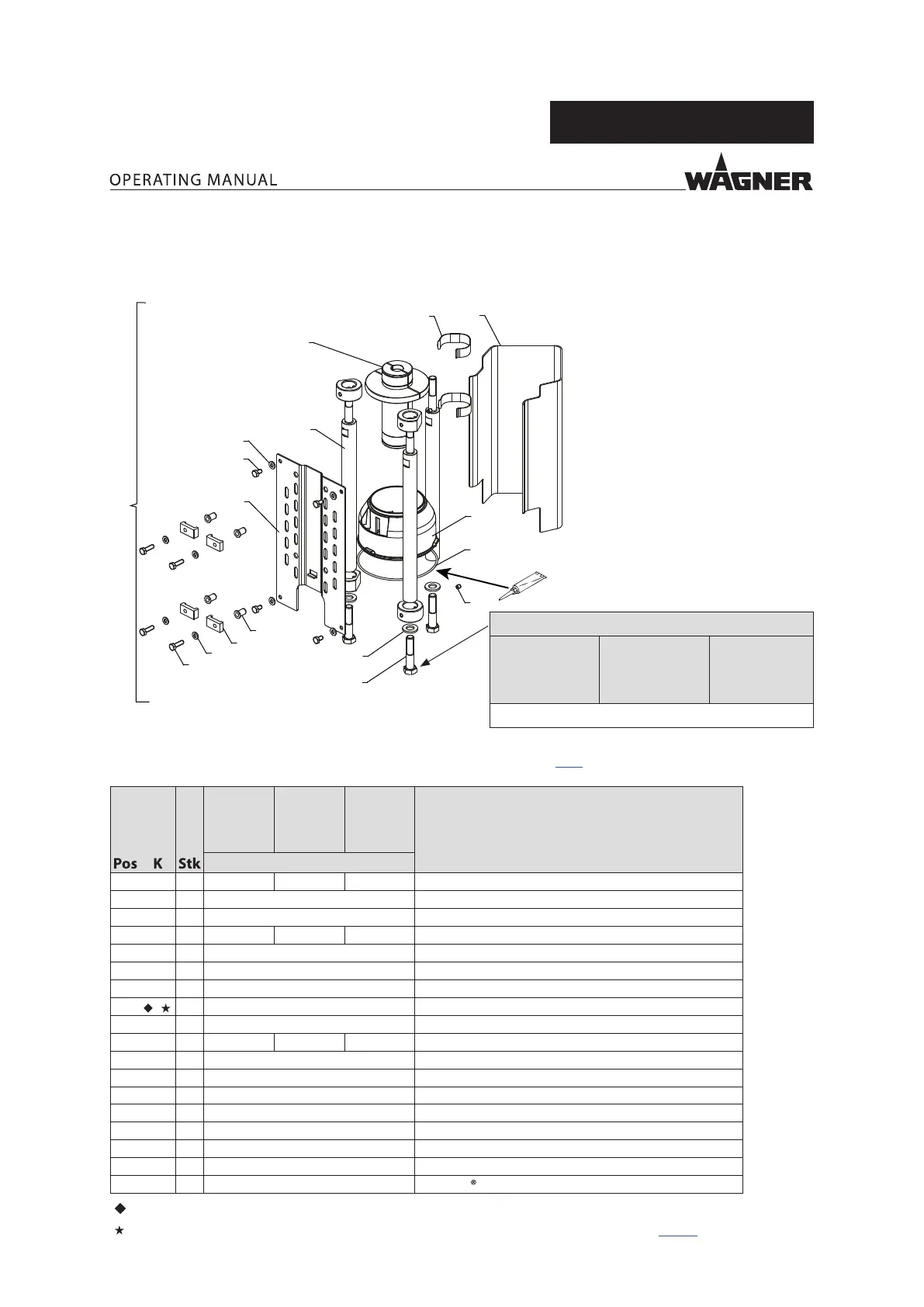

14.6.6 CONNECTION SETS TC FOR VERSION WITH STROKE SENSOR
Tightening torque
PROTEC
95-150
PROTEC
72-200
PROTEC
60-240
70Nm; 52lbft
Assembly with air motor and uid section: see
Chapter 14.2
B_07662
4
2
1
5
6
7
8
9
10
20
11
14
15
16
17
13
12
3
PROTEC
95-150
TC
PROTEC
72-200
TC
PROTEC
60-240
TC
Designation
Order no.
1 1 2409464 2399626 2399626 Connection set, LM-FS
2 1 393414 Front sheet metal
3 1 393413 Cover plate
4 1 2409249 2343852 2337929 Coupling
5 1 370530 Spring
6 3 9920107 Washer, A12, DIN 125-1
7 3 9900157 Hexagon screws
8 1 9974116 O-ring
9 1 368531 Separating agent cup, stroke 150
10 3 2411579 2411579 2359164 Threaded bolt
11 4 9907230 Grub screw
12 4 9900105 Hexagon screw
13 4 9920103 Washer, A6.4, DIN 125
14 4 9907205 Hexagon screw
15 4 9920109 Washer, A6, DIN EN ISO 7089
16 4 393407 Compressor rod
17 4 9999522 Blind rivet nut at head open, M6
20 1 9998808 Mobilux EP 2 grease
= wearing parts
= Included in the service set of the uid section PE/TG or PE/T or PE/L (see Chapter 14.6.7).
