WAGNER PROTEC 95-150 - PC Heater Set

84
VERSION 01/2020
ORDER NUMBER DOC2340282
IceBreaker 150-300 cm
3

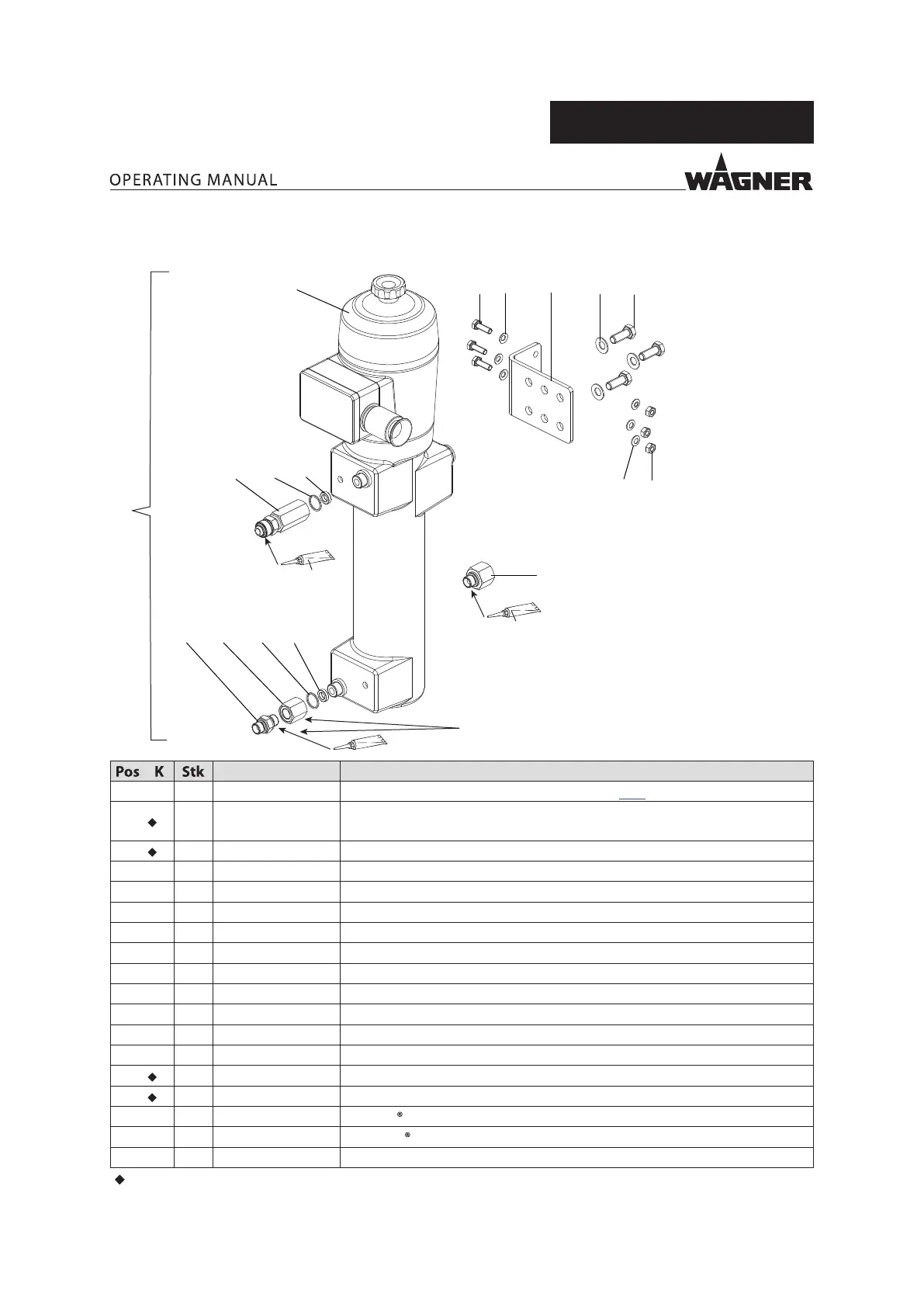

14.11.2 PC HEATER SET
B_04281
8
1
2
3
6
7
4
13
5
17
8
7
10
14
11
12
3 14
17
17
80 Nm; 59 lbft
Order no. Designation
1 1 2339728 PC heater set (For installation, see Chapter 13.3.)
2 1 65021
Heater (for details and spare parts, see the operating manual,
continuous-ow heater, order no. 65860.)
3 2 9970110 Sealing ring
4 1 393369 Elbow
5 3 3306773 Contact washer
6 3 9900150 Hexagon screw without shaft
7 6 3155404 Contact washer, M08
8 3 9910107 Hexagon nut, M8
9 3 9900109 Hexagon screw without shaft
10 1 2333393 Fitting, RF-FF-M20x1.5-G3/8-PN530-SSt
11 1 2330775 Fitting, DF-MM-G3/8-G3/8-PN530-SSt
12 1 2339609 Fitting SF-FM-M20-M24-PN530-SSt
13 1 2339606 Fitting, RF-FM-M24-G3/8-PN530-SSt
14 2 2339756 Filler part
15 1 2334063 HPP hose, DN10-PN550 PA W-G 0.735 m
16 1 9998808 Mobilux EP 2 grease
17 1 9992616 Molykote DX grease
18 1 65860 Continuous-ow heater operating manual
= wearing parts
