WAGNER PROTEC 95-150 - Connection Sets (for Version Without Stroke Sensor)

69
VERSION 01/2020
ORDER NUMBER DOC2340282
IceBreaker 150-300 cm
3

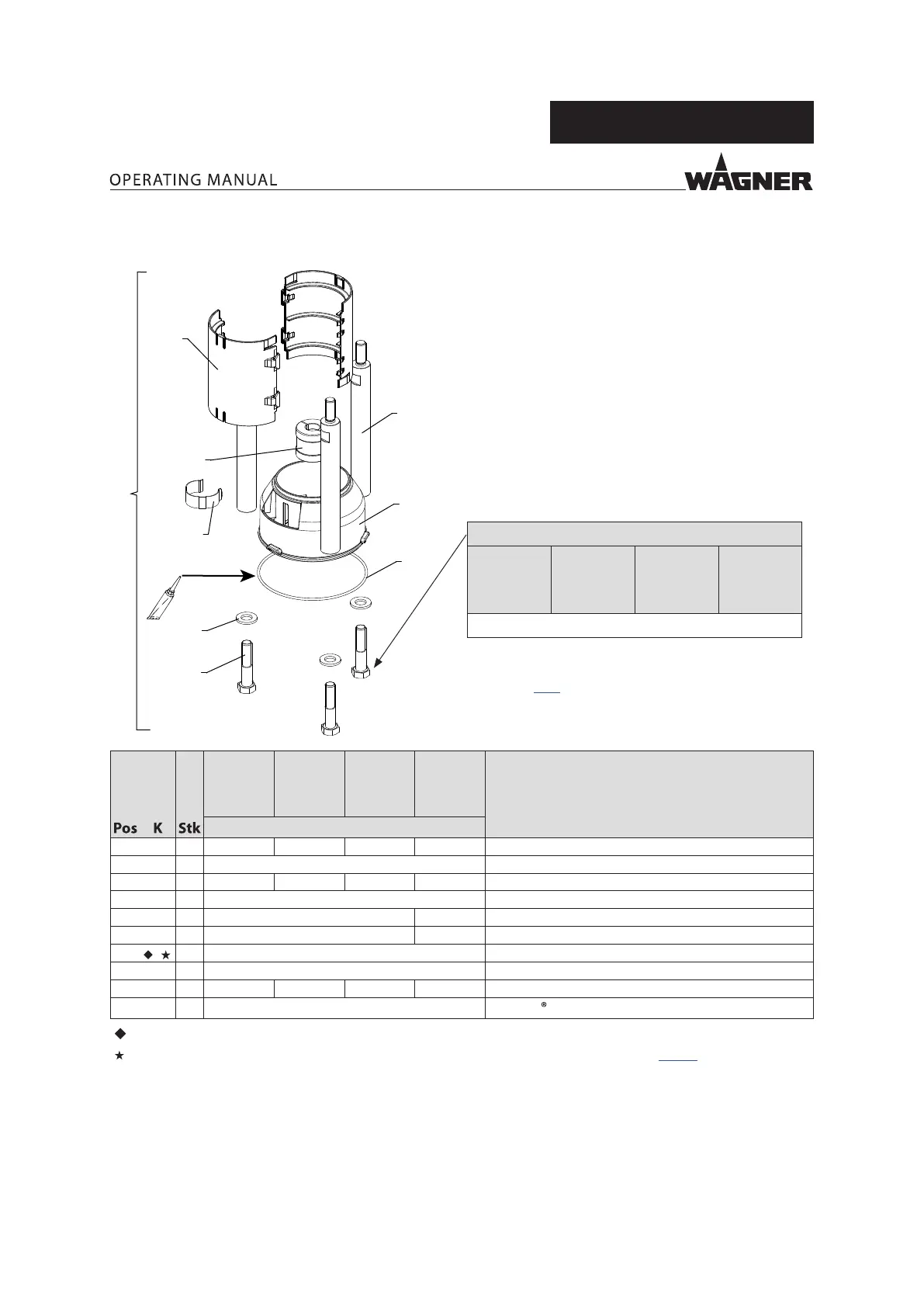

14.6.5 CONNECTION SETS FOR VERSION WITHOUT STROKE SENSOR
Tightening torque
PROTEC
95-150
PROTEC
72-200
PROTEC
60-240
Tiger
72-300
70Nm; 52lbft
Assembly with air motor and uid section: see
Chapter 14.2
B_05263
3
2
1
4
5
6
7
8
9
10
PROTEC
95-150
PROTEC
72-200
PROTEC
60-240
Tiger
72-300
DesignationOrder no.
1 1 2411904 2351190 2351190 2350037 Connection set, LM-FS
2 2 368532 Coupling cover stroke 150
3 1 2409249 2337929 2337929 370529 Coupling
4 1 370530 Spring
5 3 9920107 9925011 Washer, A12, DIN 125-1
6 3 9900157 9907209 Hexagon screws
7 1 9974116 O-ring
8 1 368531 Separating agent cup, stroke 150
9 3 2411579 2411579 2359164 370533 Threaded bolt
10 1 9998808 Mobilux EP 2 grease
= wearing parts
= Included in the service set of the uid section PE/TG or PE/T or PE/L (see Chapter 14.6.7).
