WAGNER PROTEC 95-150 - Connection Set, LM-FS

71
VERSION 01/2020
ORDER NUMBER DOC2340282
IceBreaker 150-300 cm
3

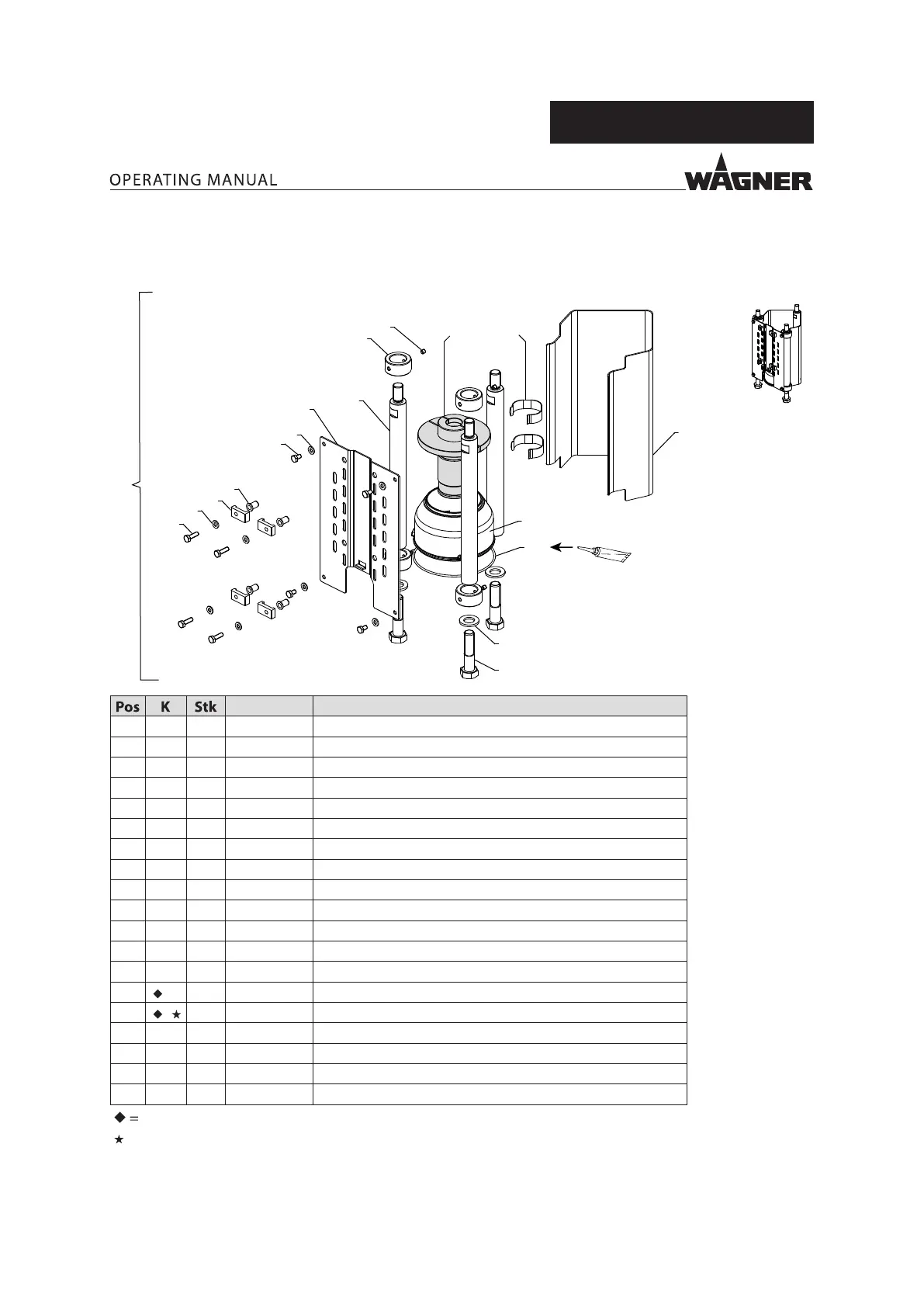

14.6.7 CONNECTION SET, LMFS 10
For Tiger 72-300 TC.
B_05136
1
13
2
3
4
5
6
7
8
9
10
11
12
14
15
18
16
17
19
Order no. Designation
1 1 2350038 Connection set, LM-FS 10
2 4 9907205 Hexagon screw without shaft
3 4 9920109 Washer
4 4 393407 Compressor rod
5 4 9999522 Blind rivet nut at head open, M6
6 4 9900105 Hexagon screw without shaft
7 4 9920103 Washer, A6.4, DIN 125
8 1 393406 Front sheet metal
9 3 393400 Threaded bolt, M16x253
10 4 393401 Adjusting collar, D25
11 4 9907230 Threaded pin with hexagon socket / at point
12 1 393404 Coupling, complete 33/33
13 2 370530 Spring, 33
14 1 368531 Separating agent cup, stroke 150
15 1 9974116 O-ring
16 3 9925011 Washer
17 3 9907209 Hexagon screws
18 1 393405 Cover plate
19 1 9998808 Mobilux® EP 2 grease
Wearing parts
= Included in the service set of the uid section PE/TG or PE/T (see the pump's
operating manual)
