30
VERSION 01/2020
ORDER NUMBER DOC2340282
IceBreaker 150-300 cm
3
5.8 PC AIR FILTER SET OPTION
The air lter serves to lter the inlet's compressed air.

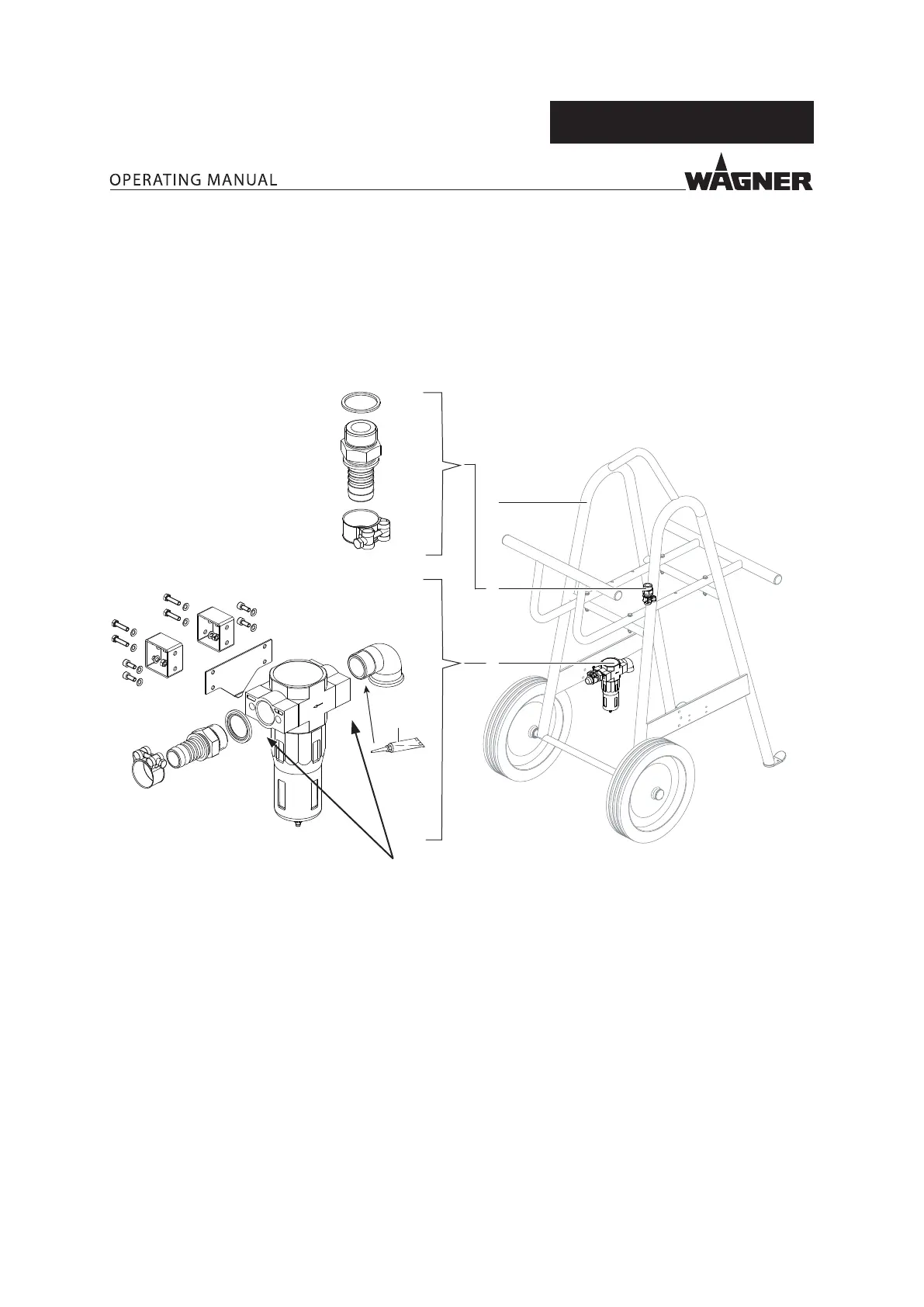

Assembly of the PC air lter set on the heavy-duty PC trolley (1):
1. Mount the air lter (2).
2. Mount the air lter (2) on trolley (1).
3. Mount the air connection (3) on the air motor.
4. Mount the air hose between (2) and (3).
B_06993
1
2
3
Loctite 638
If necessary, turn the adaptor plate
by 180° so that the air lter can be
mounted on the trolley. Observe
the air lter's ow direction.
