WAGNER PROTEC 95-150 - Tiger Air Motor Regulator

68
VERSION 01/2020
ORDER NUMBER DOC2340282
IceBreaker 150-300 cm
3

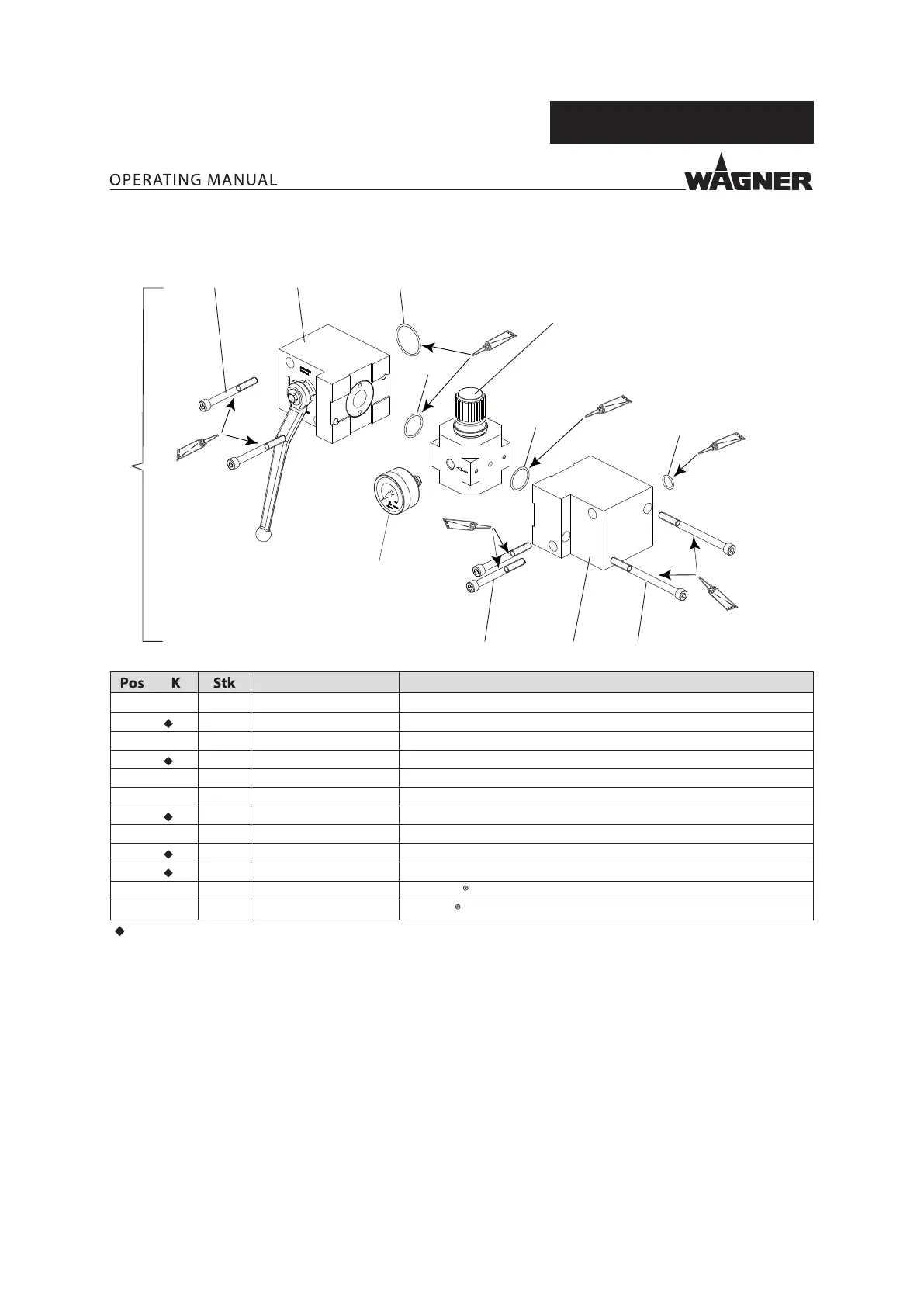

14.6.4 TIGER AIR MOTOR REGULATOR
11
11
11
12
12
12
5 3 6
4
7
8
8
2
9105
1
B_07650
*
Order no. Designation
1 1 2328610 Pressure regulator unit 12", complete
2 1 2309974 Pressure regulator valve 12"
3 1 2310588 Distribution piece, LR-D Maxi 12
4 1 9998725 Pressure gauge 0-10 bar (d50)
5 4 9900360 Hexagon socket head cap screw
6 2 9907087 Hexagon socket head cap screw
7 1 9974166 O-ring
8 2 3105540 O-ring
9 1 9971405 O-ring
10 1 2310638 Elbow ball valve LR-D Maxi 12
11 1 9992616 Molykote DX grease
12 1 9998808 Mobilux EP 2 grease
= wearing parts
* = Screw in until sealing ring is completely inside the pressure regulator valve.
