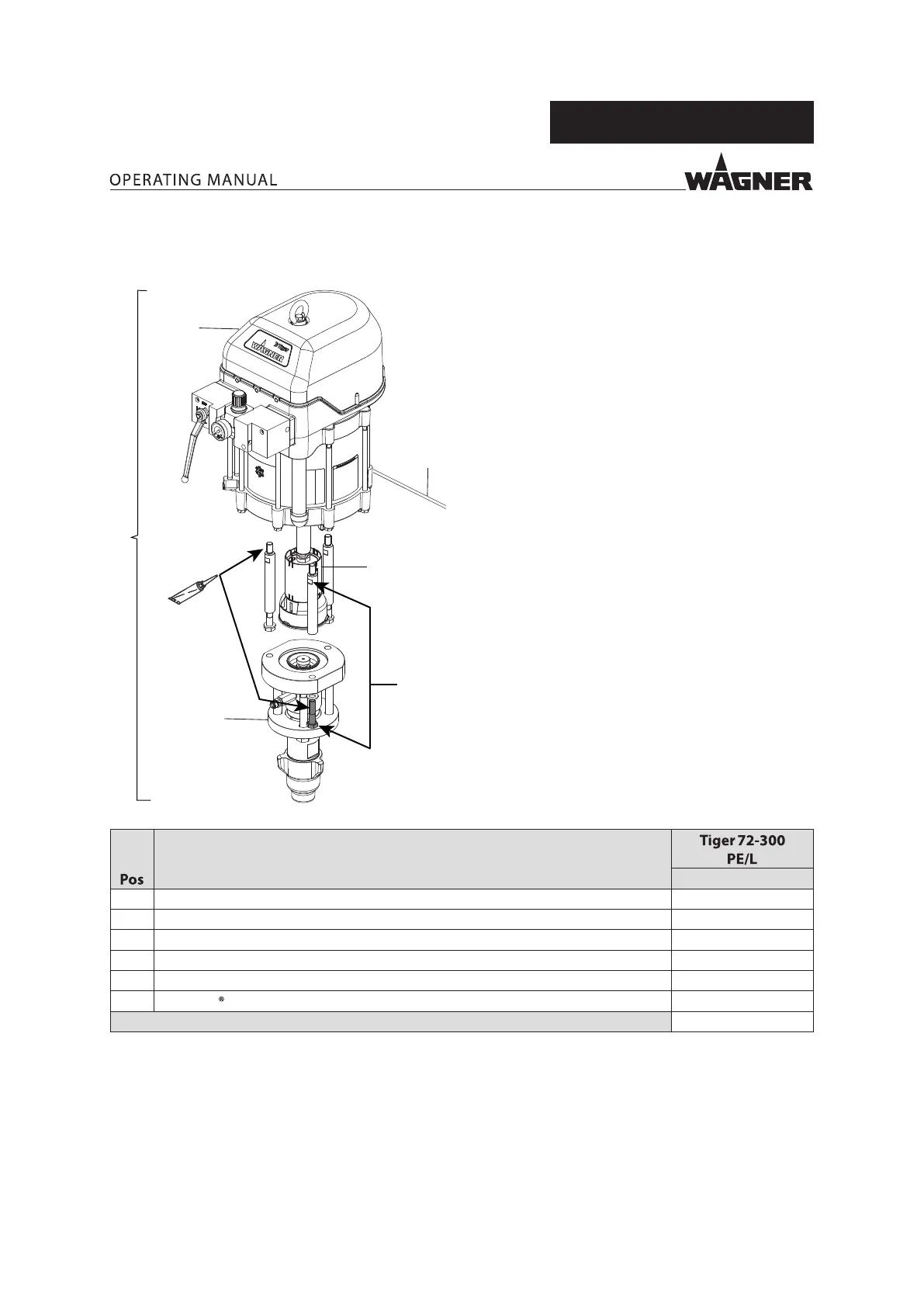

14.4 OVERVIEW OF THE TIGER COMPONENTS FOR VERSION WITHOUT STROKE
SENSOR
B_07661
3
2
9
1
4
10
Tightening torque pos. 2 and 3
Designation Order no.
1 Piston pump 2339847
2 Fluid section 2340009
3 Air motor 2329627
4 Connection set for air motor - uid section 2350037
9 Grounding cable, complete 236219
10 Molykote DX grease 9992616
Tightening torque for air motor/uid section 70 Nm; 52 lbft
