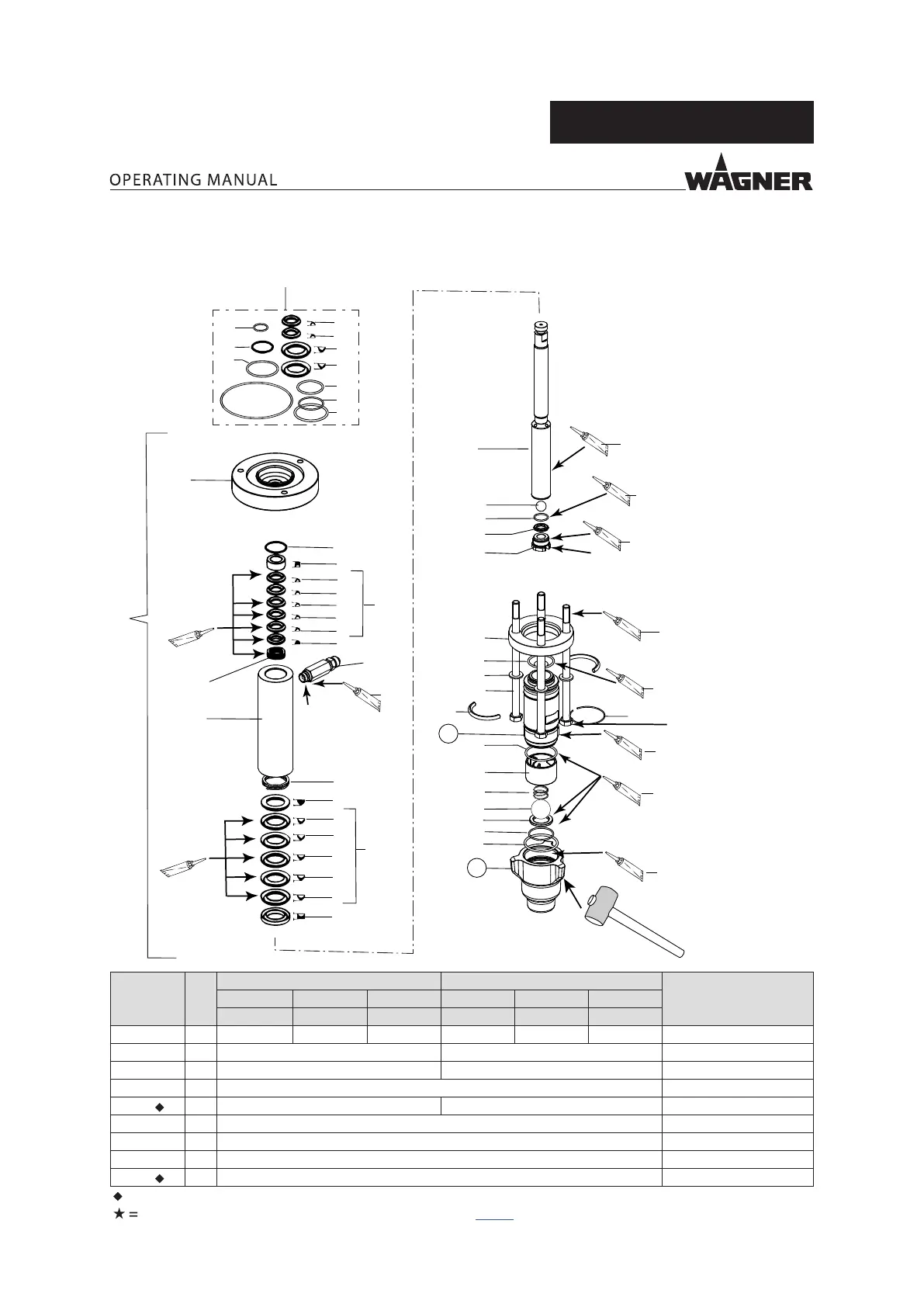

14.7.2 FLUID SECTION 200 CM
3
 240 CM
3
100 Nm
+10 Nm
74 lbft
+ 7 lbft
60
60
60
106
60
60
61
61
62
61
60
44
16
21
20
21
20
21
40
17
2
41
19
23
22
23
103
104
100
101
22
23
18
5
43
28
10
6
26
12
11
3
13
46
25
7
42
27
9
4
50
51
8
B_07703
200 Nm
148 lbft
1
120 Nm
89 lbft
61
20
A
21
20
23
22
26
25
27
46
44
28
Regarding position 4:
Tighten by hand on block. If
necessary, hit the cam with
a rubber mallet and use a
spanner to hold position 3.
Pos K Stk
200 cm
3
240 cm
3
Designation
PE / TG PE/L PE/T PE / TG PE/L PE/T
Order no. Order no. Order no. Order no. Order no. Order no.
1 1 2340008 / / 2349152 / / Fluid section
2 1 2336658 2346793 Pipe
3 1 2336669 2346786 Cylinder
4 1 2338107 Inlet housing
5 1 2336666 2346787 Piston
6 1 2336692 Valve screw
7 1 2386282 Ball guide, inlet
8 1 2336661 Connecting ange
9 1 369509 Valve seat, inlet
= Wearing part
Included in service set. (For more parts, see Chapter 14.6.5.)
