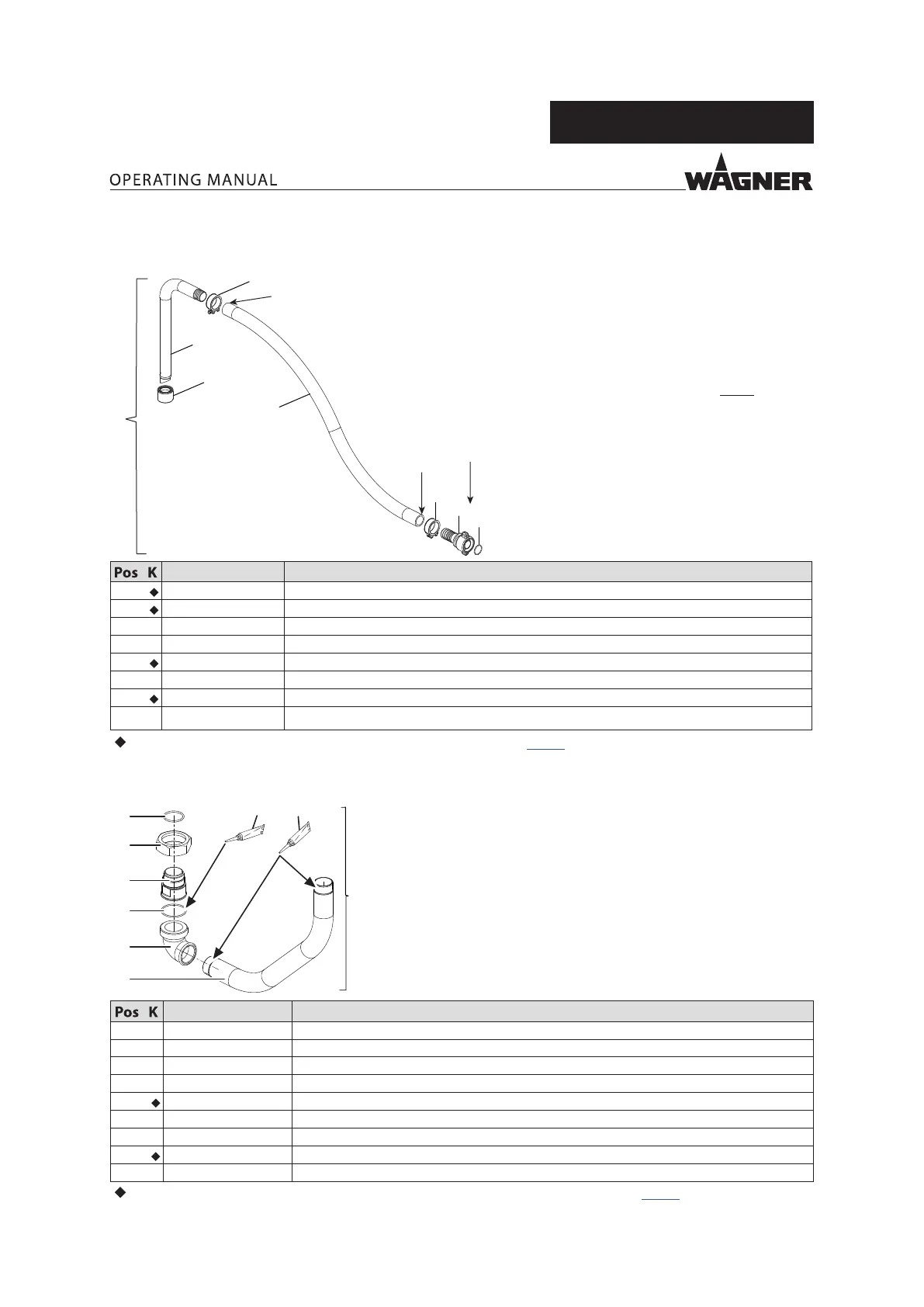

WAGNER PROTEC 95-150 - DN38 Suction Hose; PC Suction Tube

81
VERSION 01/2020
ORDER NUMBER DOC2340282
IceBreaker 150-300 cm
3
14.9 DN38 SUCTION HOSE
4
DN38
2
3
3
5
6
7
* (8)
* (8)
**
B_04730
1
* In the case or assembly diculties with
the hinge bolt clamps, apply a small
amount of Vaseline to the outside of
both ends of the hose.
Align the clamps' clamping screw
downwards.
** Remove the supplied O-ring.
For trouble-free suction, use hoses which
are as short as possible. The maximum hose
length is dependent upon the viscosity of the
product, the suction height, and the nominal
diameter of the hose.
Order no. Designation
1 2325815 Suction hose, DN38-PC, complete
2 2329134 LP hose, DN38-PN10-EPDM
3 2329591 Heavy duty clamp, 48-51 mm
4 2336488 Cone coupling ID38
5 367525 O-ring
6 -- Suction tube DN38
7 2329596 Suction lter, DN38-12.8mesh-SSt
8 9992698 Vaseline white, PHHV II
= wearing parts Assembly on the pump (see Chapter 13.2.1)
14.10 PC SUCTION TUBE
1
2
3
4
5
6
7
B_06995
8
9
Order no. Designation
1 2348257 Suction tube PC, complete
2 9992804 Loctite 648
3 2348142 Tube R1 1/4
4 2348212 Screwed plug GF-95 ET
5 369527 O-ring
6 2348094 Suction adapter PC
7 2348210 Union nut GF-374
8 9955863 O-ring
9 9998808 Mobilux EP 2 grease
= wearing parts Assembly on the pump and 20 liter tank (see Chapter 13.2.2)
