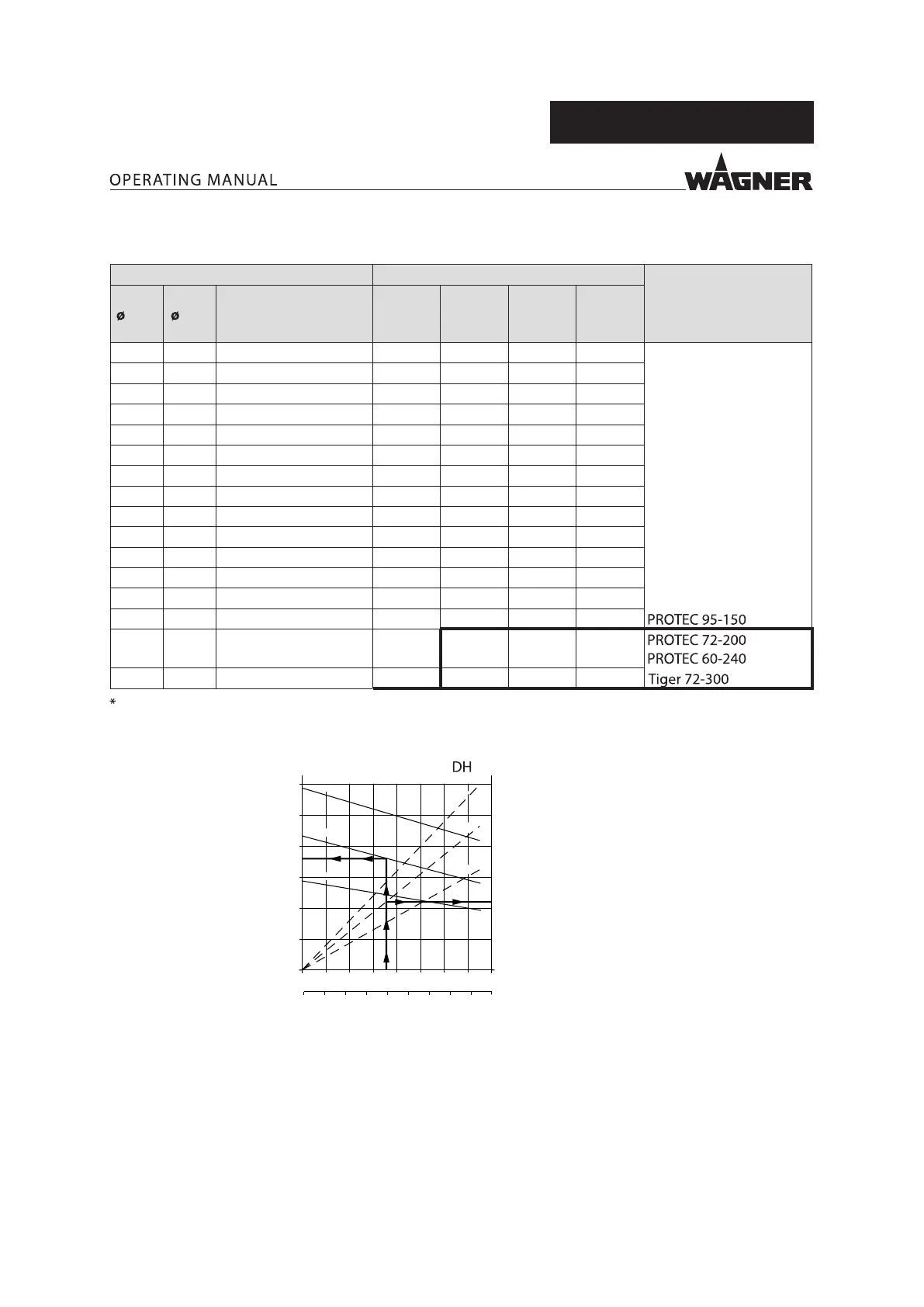

5.5.8 VOLUME FLOW
Wagner AL nozzles Volume ow* in l/min Maximum ranges for
continuous operation at
40 DH/min (PROTEC) or
30 DH/min (Tiger)
inch mm Spray angle
7 MPa
70 bar
1015 psi
10 MPa
100 bar
1450 psi
15 MPa
150 bar
2175 psi
20 MPa
200 bar
2900 psi
0.007 0.18 40° 0.17 0.20 0.21 0.22
0.009 0.23 20-30-40-50-60° 0.21 0.25 0.31 0.36
0.011 0.28 10-20-30-40-50-60° 0.30 0.35 0.43 0.50
0.013 0.33 10-20-30-40-50-60-80° 0.45 0.53 0.62 0.68
0.015 0.38 10-20-30-40-50-60-80° 0.58 0.67 0.81 0.91
0.017 0.43 20-30-40-50-60-70° 0.73 0.79 1.06 1.23
0.019 0.48 20-30-40-50-60-70-80° 0.93 1.09 1.37 1.47
0.021 0.53 20-40-50-60-80° 1.14 1.36 1.69 1.78
0.023 0.58 20-40-50-60-70-80° 1.37 1.59 2.01 2.24
0.025 0.64 20-40-50-60-80° 1.62 1.91 2.40 2.60
0.027 0.69 20-40-50-60-80° 1.83 2.13 2.68 3.12
0.029 0.75 60° 2.19 2.51 3.17 3.63
0.031 0.79 20-40-50-60° 2.40 2.77 3.49 4.00
0.035 0.90 20-40-50-60° 3.22 3.74 4.69 5.14
0.043 1.10 20-50° 5.07 6.04 7.46 7.84
0.052 1.30 50° 5.12 6.10 7.52 8.06
Volume ow refers to water.
5.5.9 PERFORMANCE DIAGRAMS
8 bar
6 bar
4 bar
8 bar
6 bar
4 bar
B_00301
Stroke frequency
/min
Product pressure bar (MPa) psi
Air consumption nl/min <scfm>
Water ow rate l/min <gpm>
Example diagram
