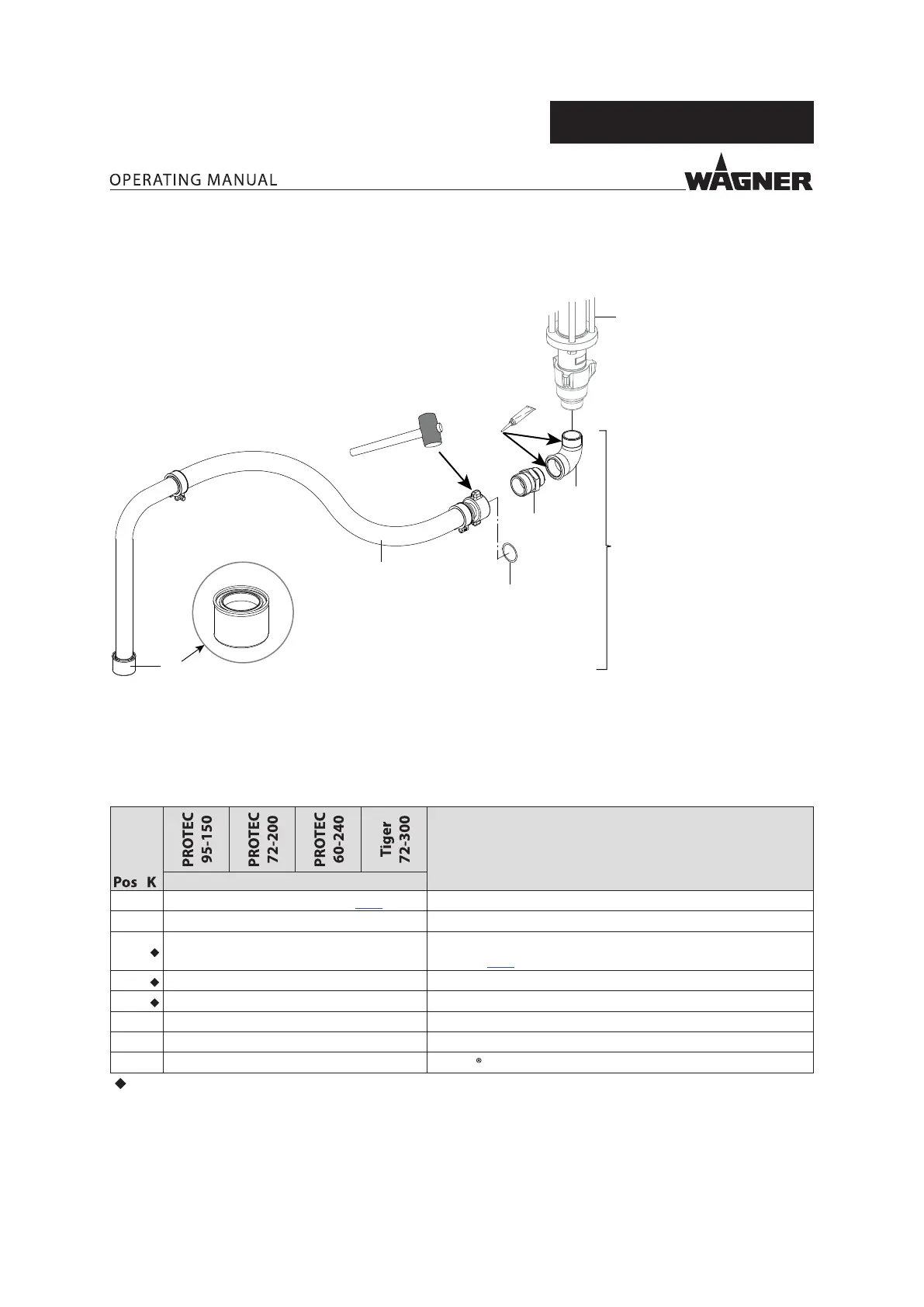

IceBreaker 150-300 cm
3
13.2 ACCESSORIES FOR PRODUCT INPUT
13.2.1 SUCTION HOSE
4
DN38
6
2
5
7
1
3
A
B_05289
For trouble-free suction, use hoses which are as short as possible. The maximum hose
length is dependent upon the viscosity of the product, the suction height, and the
nominal diameter of the hose.
Pos. 2: For the assembly or disassembly of the nut, hit the cam with a rubber mallet.
Pos. 6: Before assembling the suction bend, check if the inlet housing is screwed on
rmly. Set the desired orientation of the suction bend during assembly.
DesignationOrder no.
A Order no., see Chapter 14.2 Piston pump PE/TG (Tiger: PE/L)
1 2352549 Suction hose set DN38-PC-G11/2
2 2325815
Suction hose DN38-PC (including Pos 3, 4) For details, see
Chapter 14.9
3 367525 O-ring for suction hose quick coupler
4 2329596 Suction lter, DN38-12.8mesh-SSt
5 2336489 Fitting DF-MM-G1 1/2-Rd55x1/6-PN25-CS
6 2329019 Fitting EF-FM-G1 1/2-G1 1/2-PN25-TG
7 9992833 Loctite 638
= wearing parts
