WAGNER PROTEC 95-150 - Filling with Working Product

40
VERSION 01/2020
ORDER NUMBER DOC2340282
IceBreaker 150-300 cm
3
B_07671
5
6
4
1
3
7
2
B
B
A
A
A Open
B Closed

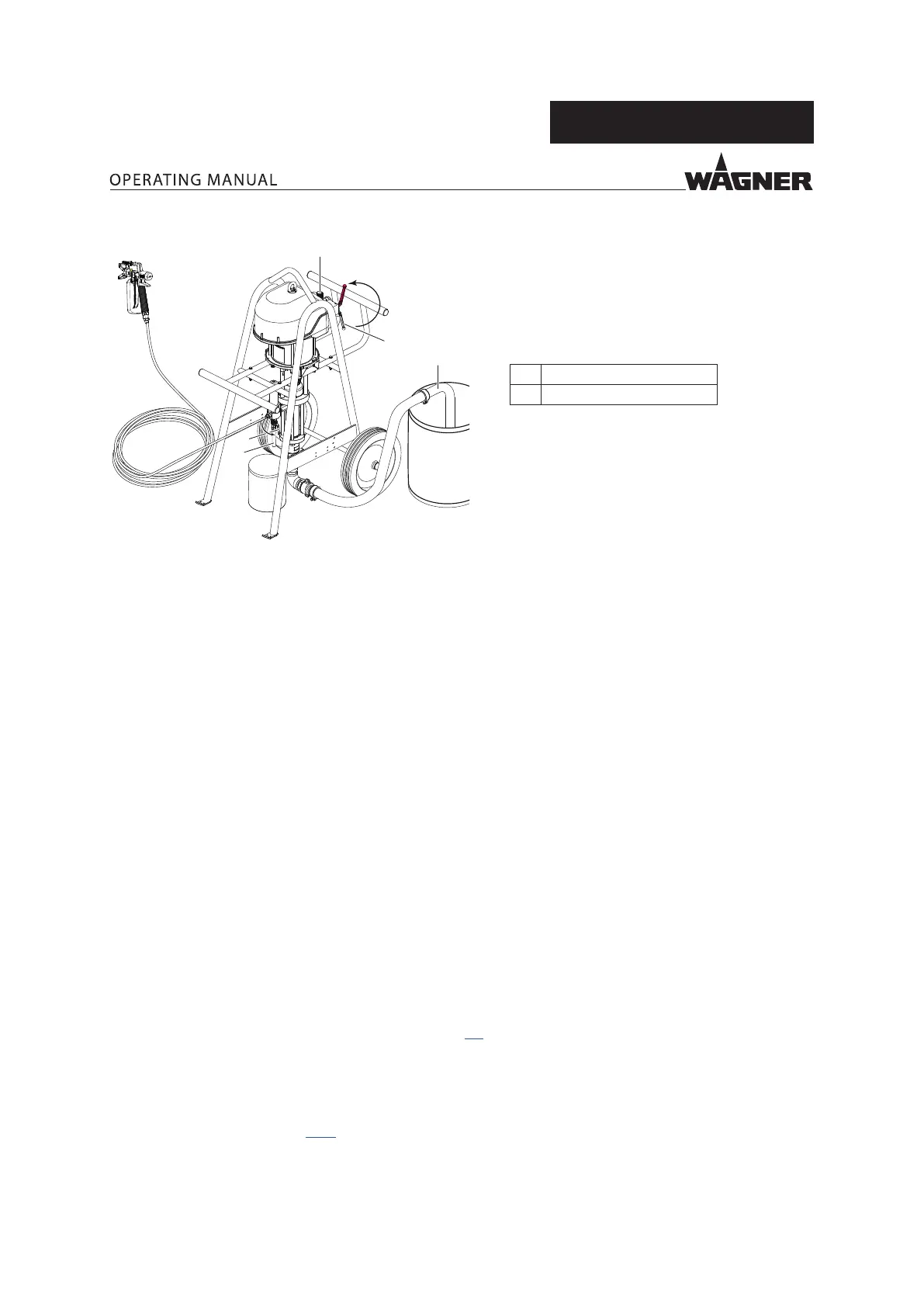

Flushing procedures
1. Visual check: personal safety equipment, grounding and all devices ready to use.
2. Place an empty, grounded collection tank (5) under the return tube (4).
3. Place the suction hose (7) in the grounded tank with ushing agent (6).
4. Adjust the pressure regulator (1) to approx. 0.05 MPa; 0.5 bar; 7.25 psi.
Flushing via the return valve
5. Open return valve (3).
6. Slowly open the ball valve (2).
7. Adjust the air pressure on the pressure regulator (1) so that the pump runs smoothly.
8. Flush the system until clean ushing agent ows into the tank (5).
9. Close ball valve (2).
10. As soon as there is no pressure remaining in the system, close the return valve (3).
Flushing via spray gun
11. Point the spray gun, without nozzle, into the tank (5) and open it.
12. Slowly open the ball valve (2).
13. Rinse until clean ushing agent ows from the spray gun.
14. Close ball valve (2).
15. As soon as there is no pressure remaining in the system, close the spray gun.
16. Secure the spray gun.
17. Dispose of the contents of the tank (5) according to the local regulations.
External Cleaning
18. Clean the outside of the system.
19. Fully assemble the system.
20. Relieve the pump's pressure according to Chapter 7.4.
21. Dispose of the contents of the tank (5) according to the local regulations.
7.5.1 FILLING WITH WORKING PRODUCT
After basic ushing, the system can be lled with working product.
Proceed according to Chapter 8.2.5, but use working product instead of ushing agent.
