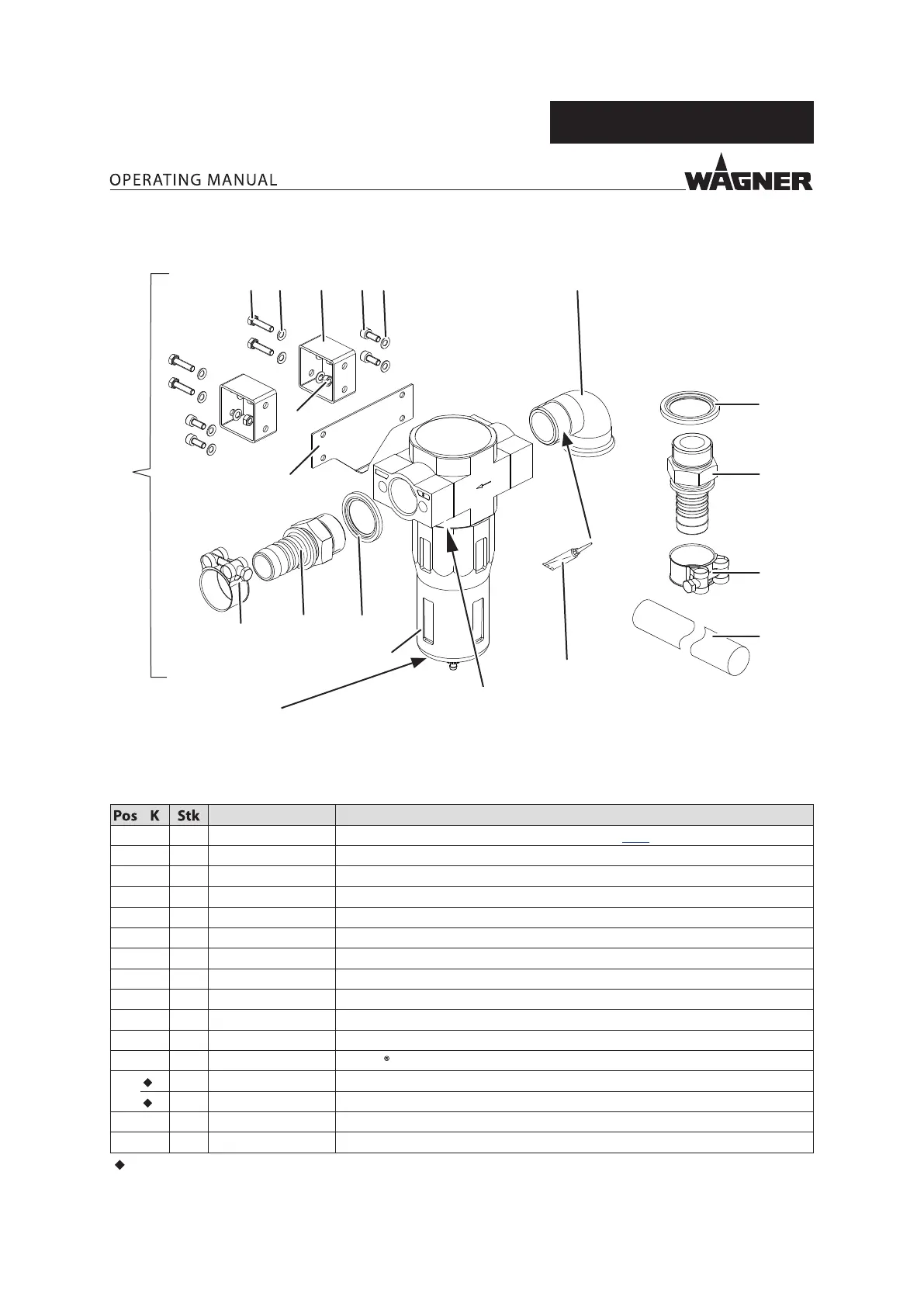

WAGNER PROTEC 95-150 - PC Air Filter Set

83
VERSION 01/2020
ORDER NUMBER DOC2340282
IceBreaker 150-300 cm
3
14.11.1 PC AIR FILTER SET
B_06996
8
1
9
10
12
7
13
10
9
8
6
5
4
11
32
14
15
If necessary, turn the
adaptor plate by 180° so
that the air lter can be
mounted on the trolley.
Observe the air lter's
ow direction.
Order no. Designation
1 1 2339851 Air lter set PC. For installation, see Chapter 13.3.
2 4 9900240 Hexagon screw without shaft
3 10 9955841 Contact washer
4 2 2395578 Connection prole
5 4 9900344 Hexagon socket head cap screw
6 4 9955841 Contact washer
7 1 9985613 Elbow 90°, GF-92
8 2 2365695 Composite seal, G1
9 2 9985671 Hose tting G1"- NW25
10 2 2336526 Heavy duty clamp
11 1 m 2323474 LP hose, DN25-PN10-EPDM
12 1 9999042 Loctite 638
13
1 2330030 Filter LF-1-D-Maxi
1 2347890 Filter cartridge, 40 µm
14 2 9910106 Hexagon nut
15 1 2391486 Contact plate
= wearing parts
1. remove protection cover
2. mount contact latch
3. screw/unscrew protection cover three times
(makes contact point through coat)
